SECTION 2 - Description

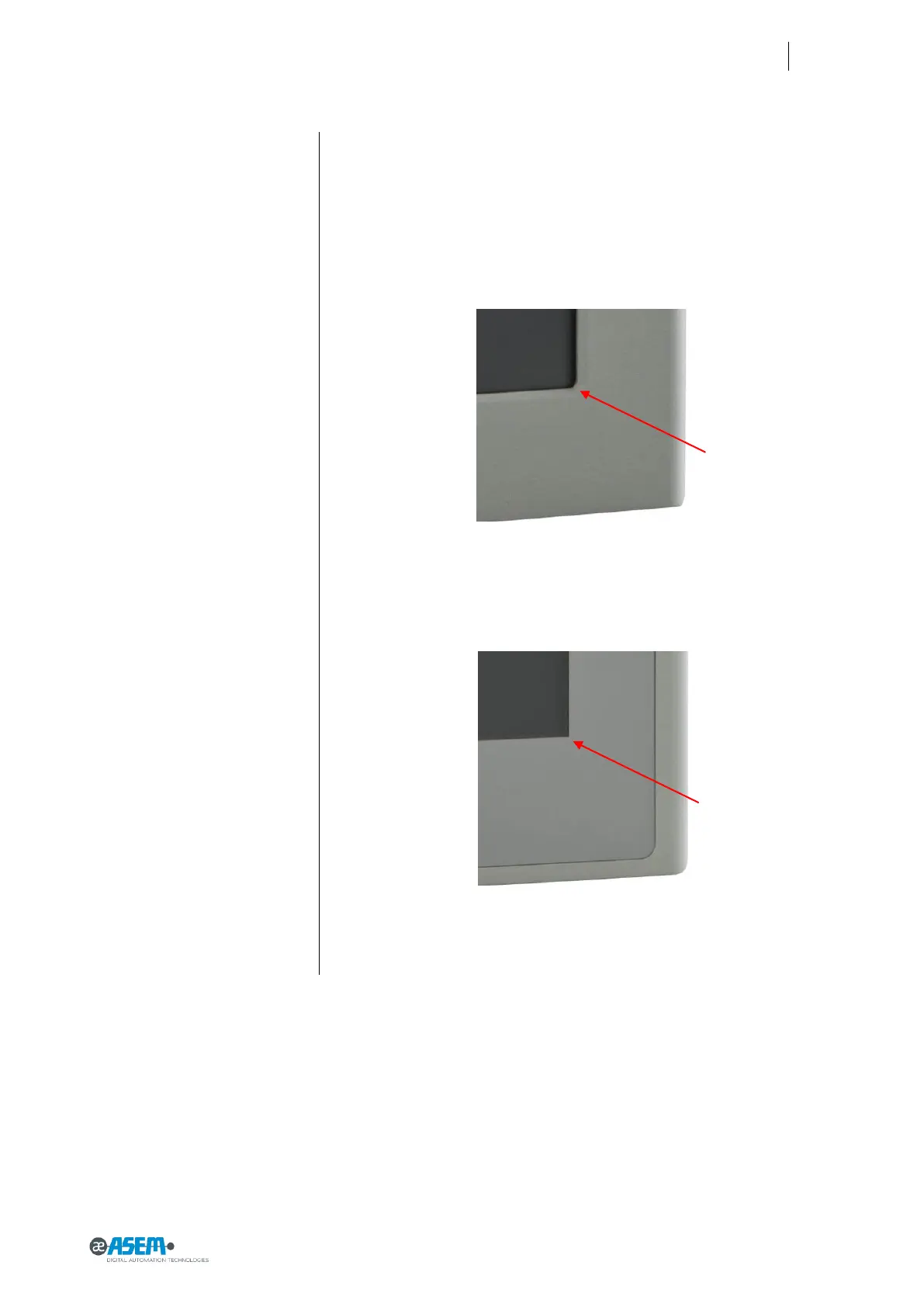

Figure 3

Front panel “Step” detail

Figure 4

Front panel “No step” detail

2.4.3 Main difference between full aluminium front panel and

aluminium front panel with true flat technology

 The aluminium front panel has a “step” between the front panel and

the touchscreen.

 The front panel with true flat technology has no “step” between the

front panel and the touchscreen, therefore it can be easily cleaned.

The polyester top-film covers the resistive touchscreen up to the alu-

minium border.

Step

NO Step
