29

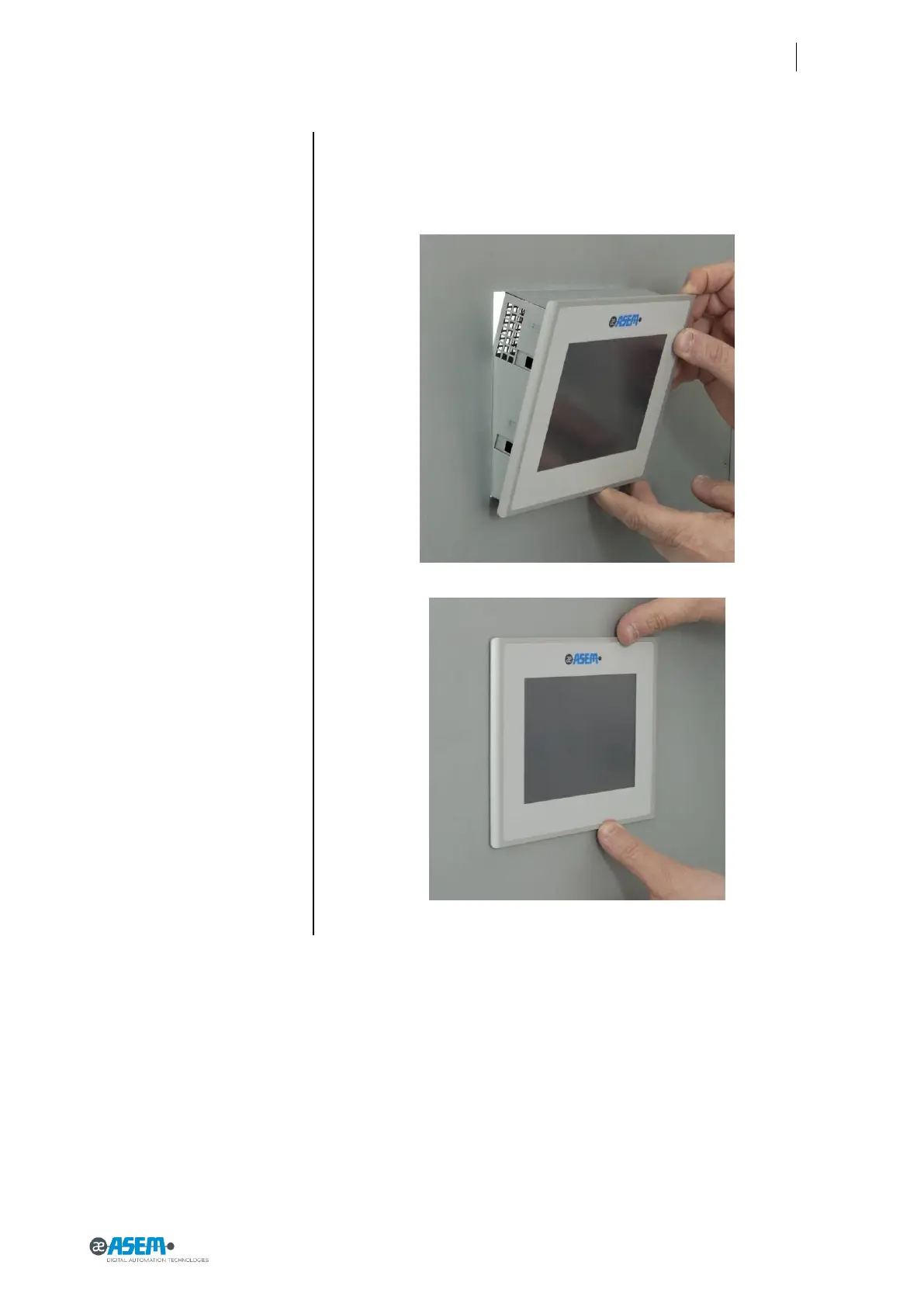

Figure 27
Installation
Figure 28
Installation
3.7.3 Procedure
1. Insert HMI30 into the mounting cut-out from the front.
