ASEM HMI30 - Figure 32 Installation; Figure 33 Installation

31
HMI30 / HMI30-TF User’s guide

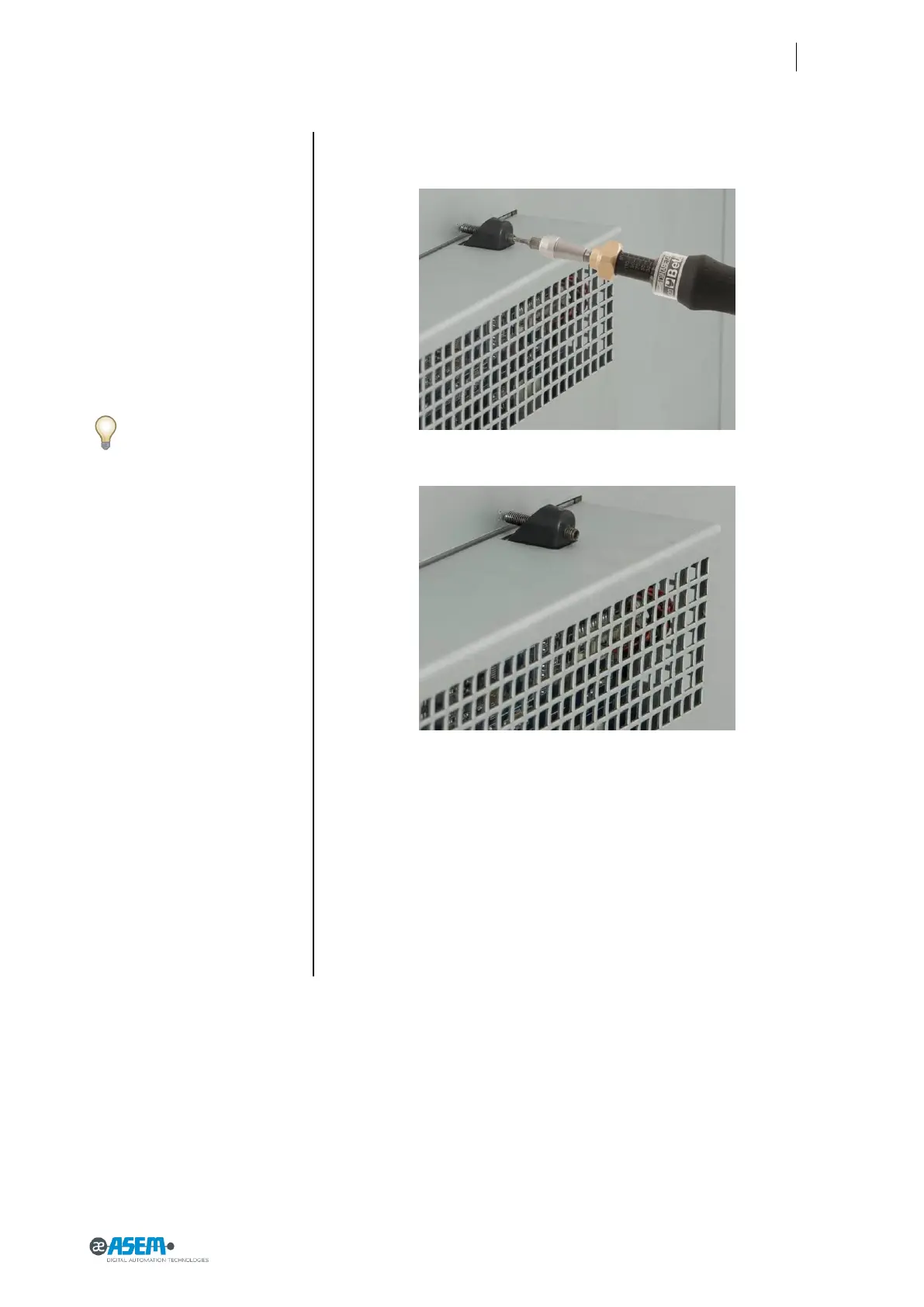

Figure 32
Installation
Note:
adhere to the permissible torque
when tightening the threaded pin
of the mounting clamp: 0.2 Nm.
Figure 33
Installation
3. Tighten the fixing clamps with a 1.5 mm hex key.
4. Repeat steps 2 and 3 for all mounting clamps.
5. Check the seal seat.
