HMI30 / HMI30-TF User’s guide
Table 23
Position of the mounting clamps
3.7 Mounting the device
3.7.1 Position of the mounting clamps
 To obtain the declared degree of frontal protection for the system, it is nec-
essary to respect the positions of the clamps shown below.

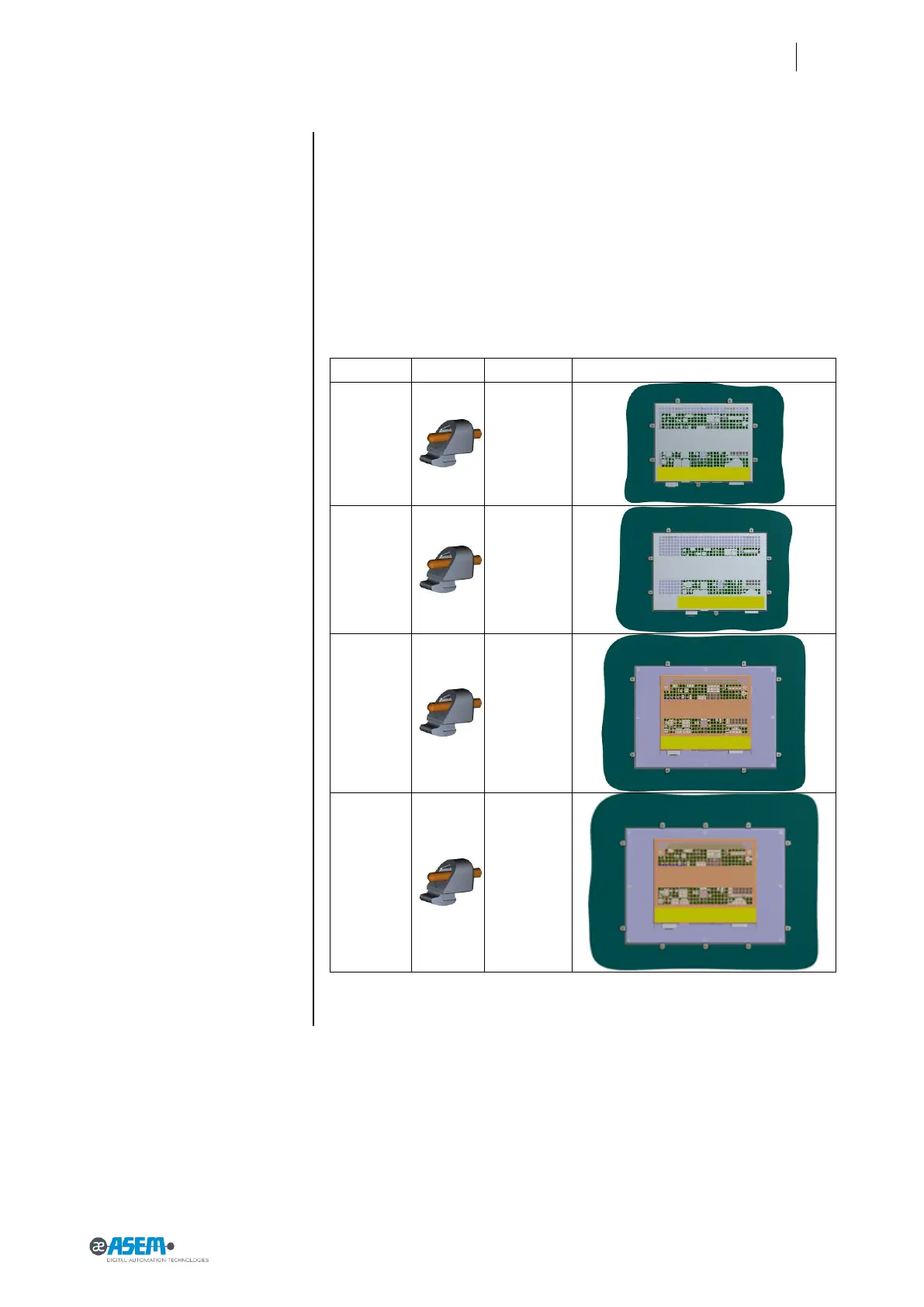

 The table below shows the number and the position of the clamps for each
HMI30 size.
System
Clamp
Quantity
Clamp position
HMI30 /
HMI30-TF
5.7”
7
HMI30 /
HMI30-TF
7.0”
7
HMI30 /
HMI30-TF
8.4”
8
HMI30 /
HMI30-TF
10.4”
10
