ASEM HMI30 - HMI30-TF 5.7 (Aluminium Front Panel with True Flat Technology); Figure 82 HMI30-TF 5.7 Front View; Figure 83 HMI30-TF 5.7 Bottom View; Figure 84 HMI30-TF 5.7 Side View

69
HMI30 / HMI30-TF User’s guide

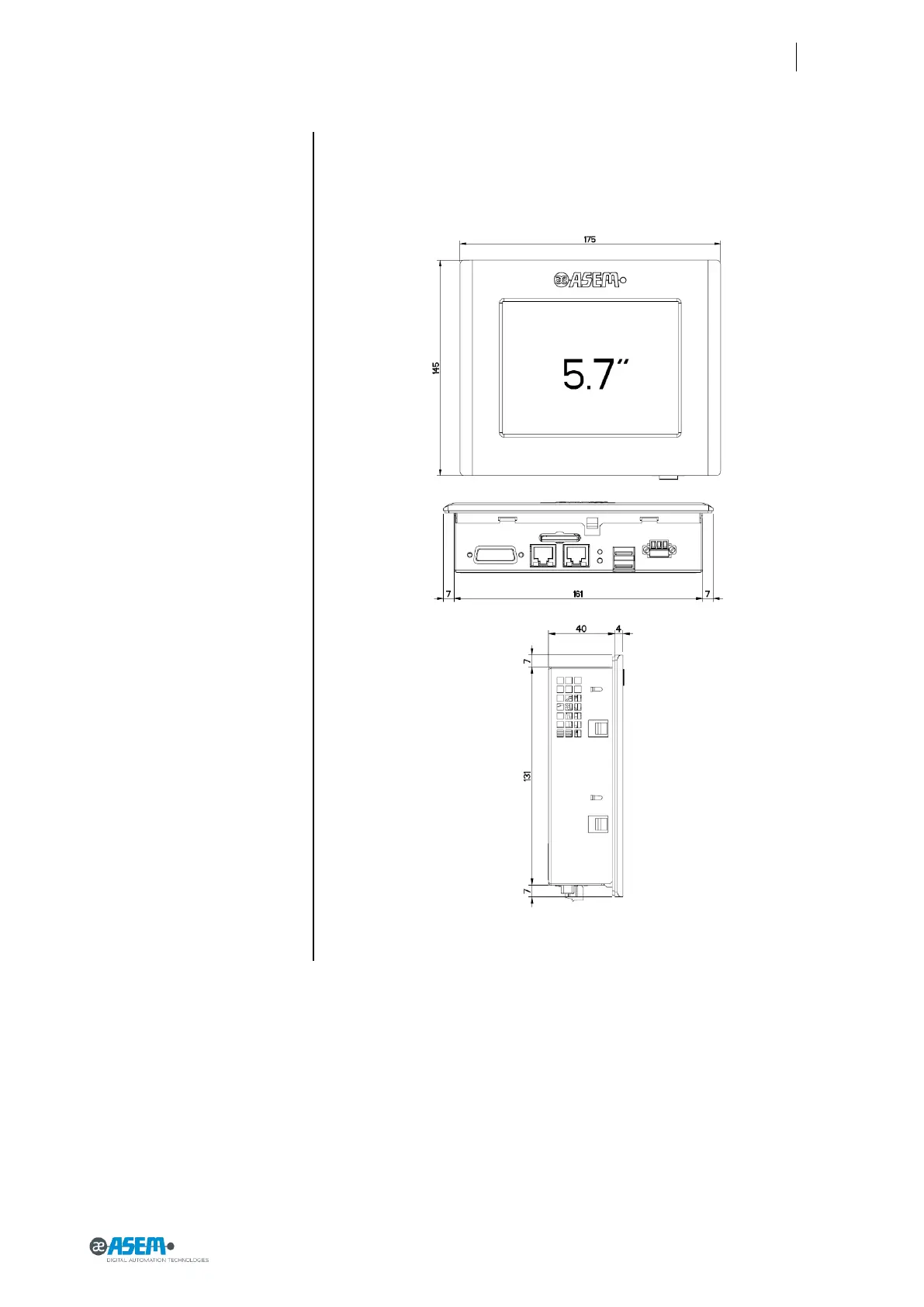

Figure 82
HMI30-TF 5.7” front view
Figure 83
HMI30-TF 5.7” bottom view
Figure 84
HMI30-TF 5.7” side view
7.3.2 HMI30-TF 5.7”
(Aluminium front panel with True Flat technology)
