ASEM HMI30 - HMI30-TF 7.0 (Wide Aluminium Front Panel with True Flat Technology); Figure 88 HMI-TF30 7.0 Front View; Figure 89 HMI30-TF 7.0 Bottom View; Figure 90 HMI30-TF 7.0 Side View

71
HMI30 / HMI30-TF User’s guide

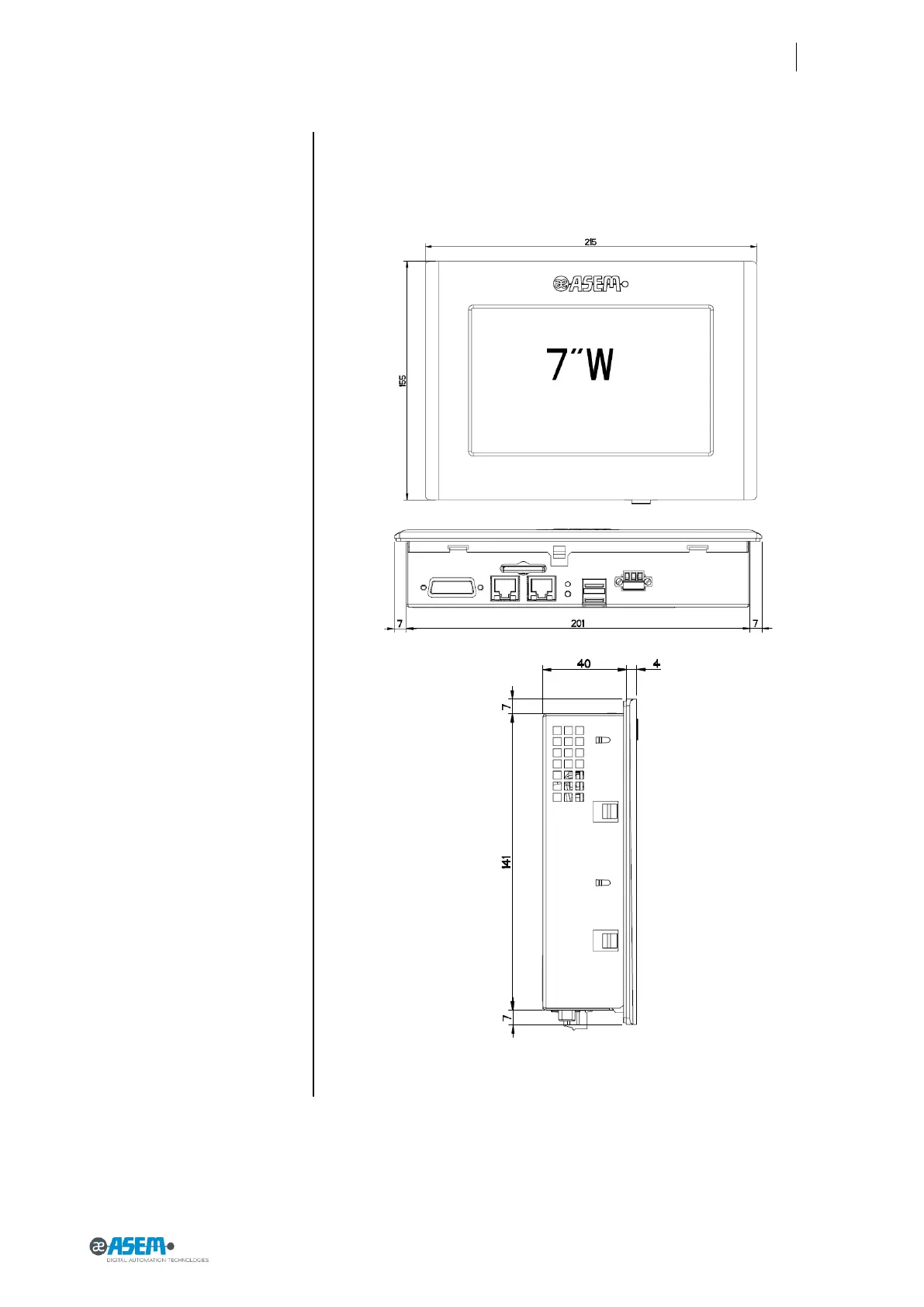

Figure 88
HMI-TF30 7.0” front view
Figure 89
HMI30-TF 7.0” bottom view
Figure 90
HMI30-TF 7.0” side view
7.3.4 HMI30-TF 7.0”
(Wide Aluminium front panel with True Flat technology)
