72
SECTION 8 - Technical specifications

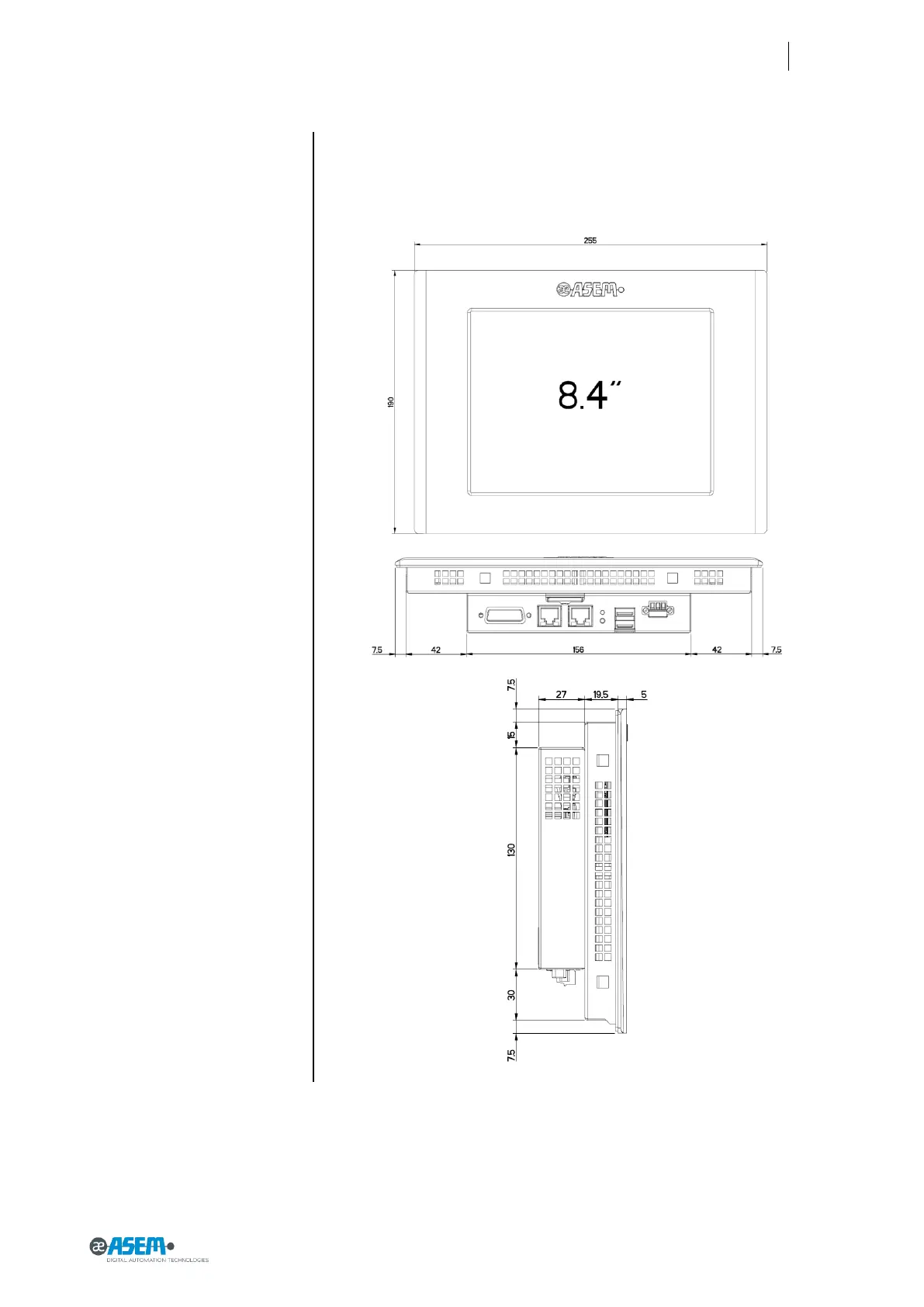

Figure 91
HMI30 8.4” front view
Figure 92
HMI30 8.4” bottom view
Figure 93
HMI30 8.4” side view
7.3.5 HMI30 8.4”
(Full Aluminium front panel)
