SECTION 2 - Description

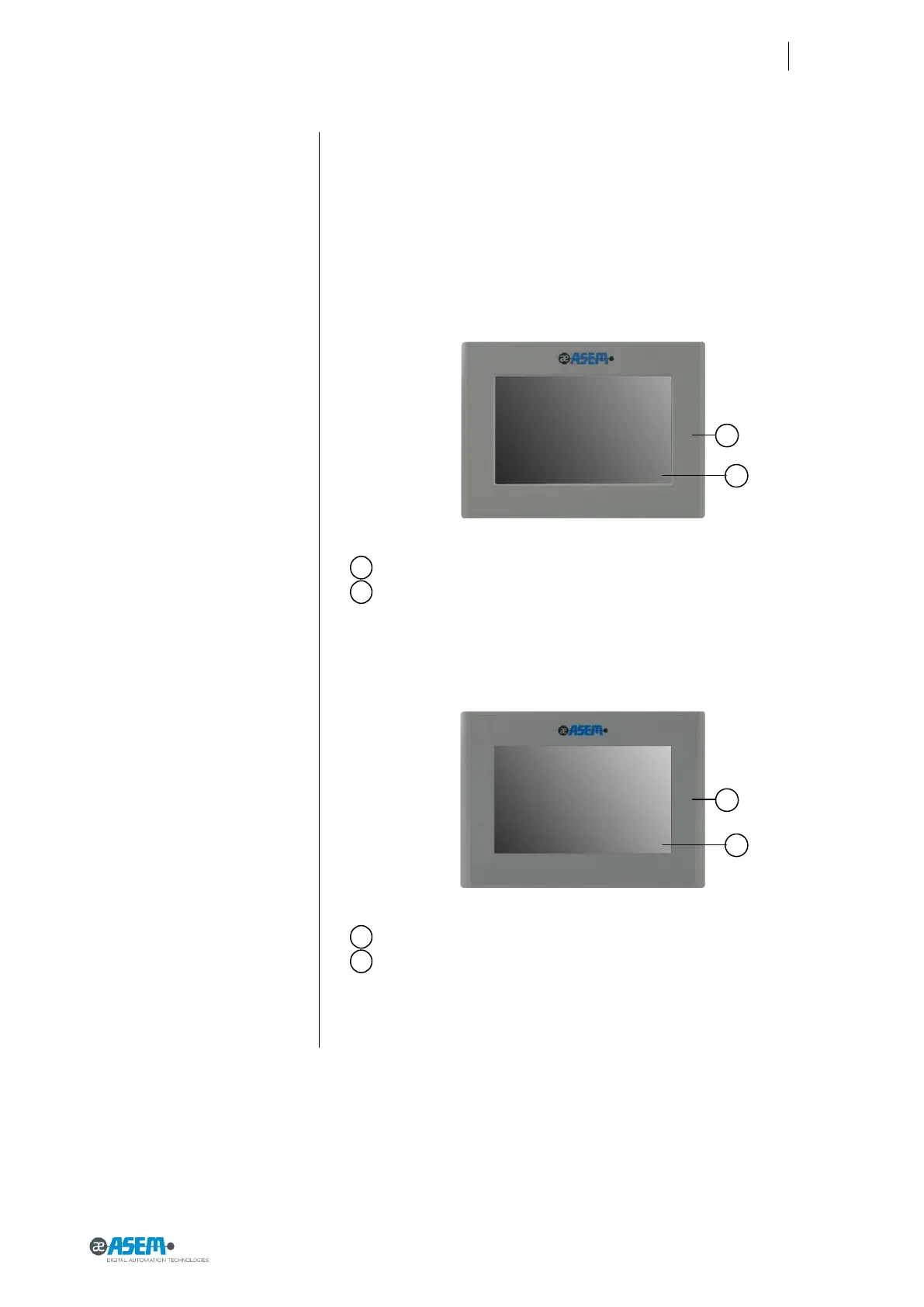

Figure 7
widescreen full aluminium
front panel detail
Figure 8
widescreen aluminium front panel
with true flat technology detail
2.5.3 Widescreen
In HMI30 family, the systems with 5.7” and 8.4” display have 4:3 aspect ratio,
while the system with 7.0” display has 15:9 (wide) aspect ratio.
The 7.0” wide display provides 25% more area than the smaller 5.7” size.
HMI30 7.0” is available with aluminium front panel or true flat and widescreen.
2.5.3.1 Widescreen Full aluminium front panel
Frame
Touchscreen display
2.5.3.2 Widescreen aluminium front panel with True Flat technology
Frame
Touchscreen display
