70
SECTION 8 - Technical specifications

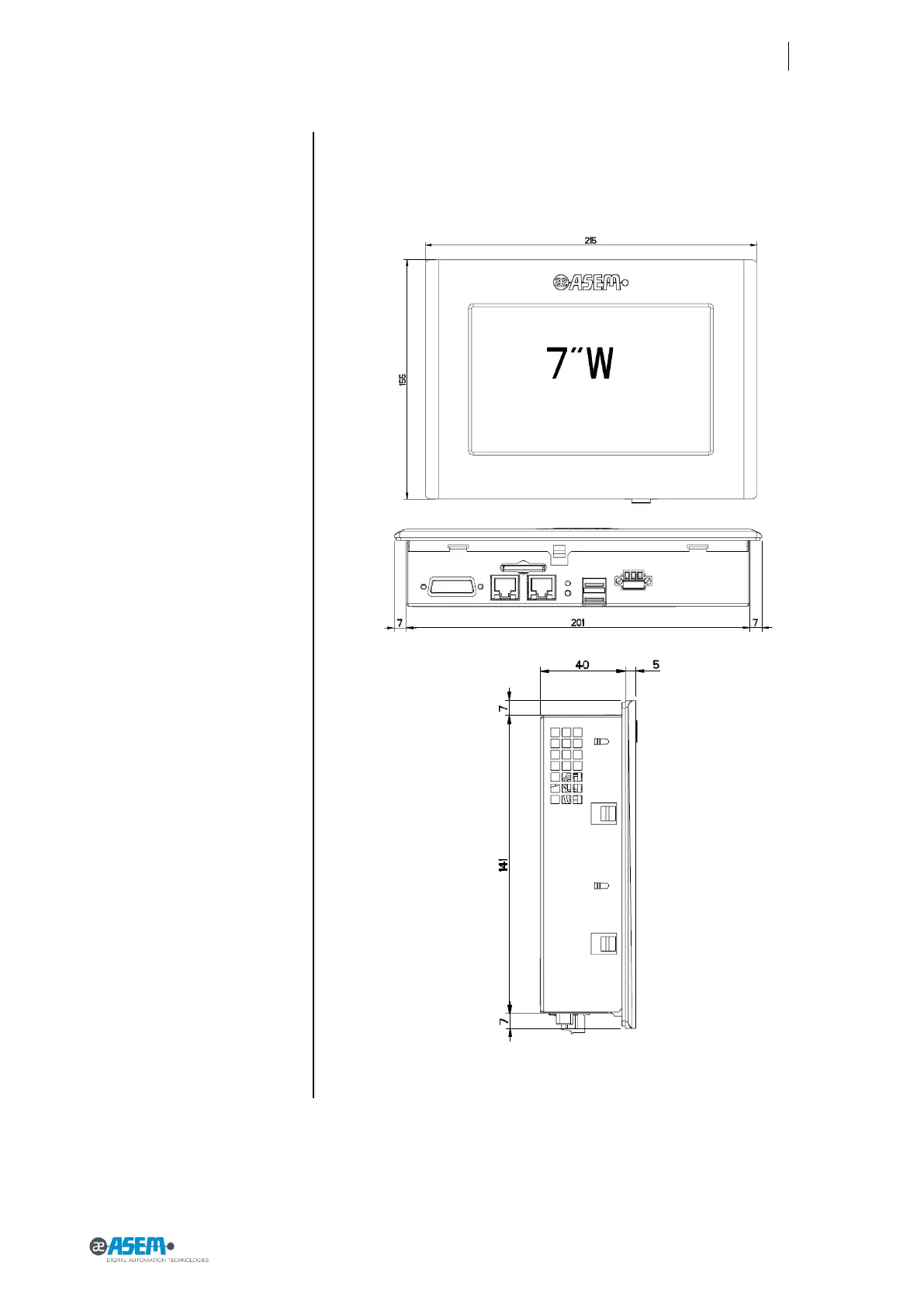

Figure 85
HMI30 7.0” front view
Figure 86
HMI30 7.0” bottom view
Figure 87
HMI30 7.0” side view
7.3.3 HMI30 7.0”
(Wide Full Aluminium front panel)
