78
SECTION 8 - Technical specifications

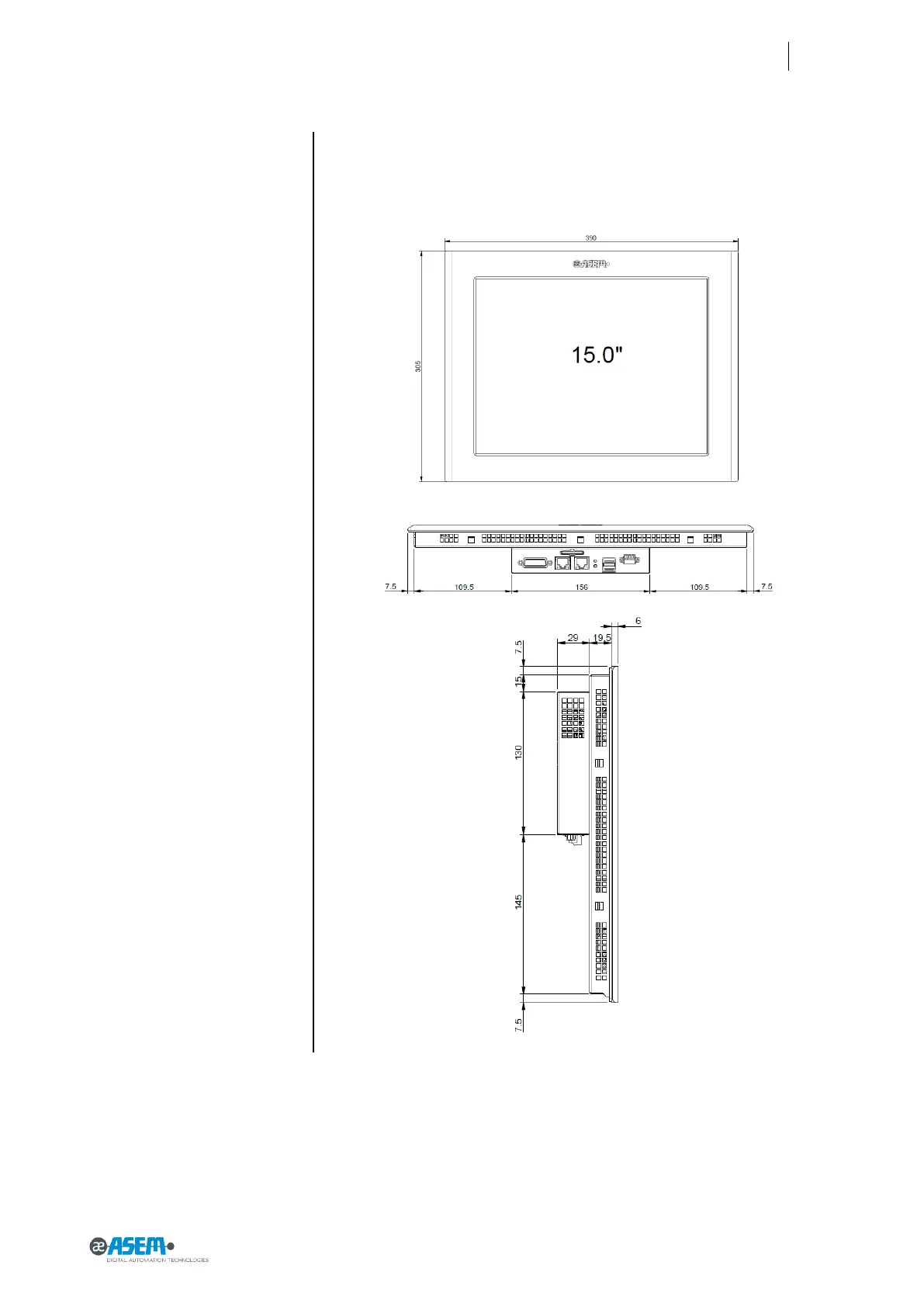

Figure 109
HMI30 15.0” front view
Figure 110
HMI30 15.0” bottom view
Figure 111
HMI30 15.0” side view
7.3.11 HMI30 15.0”
(Full Aluminium front panel)
