47
HMI30 / HMI30-TF User’s guide

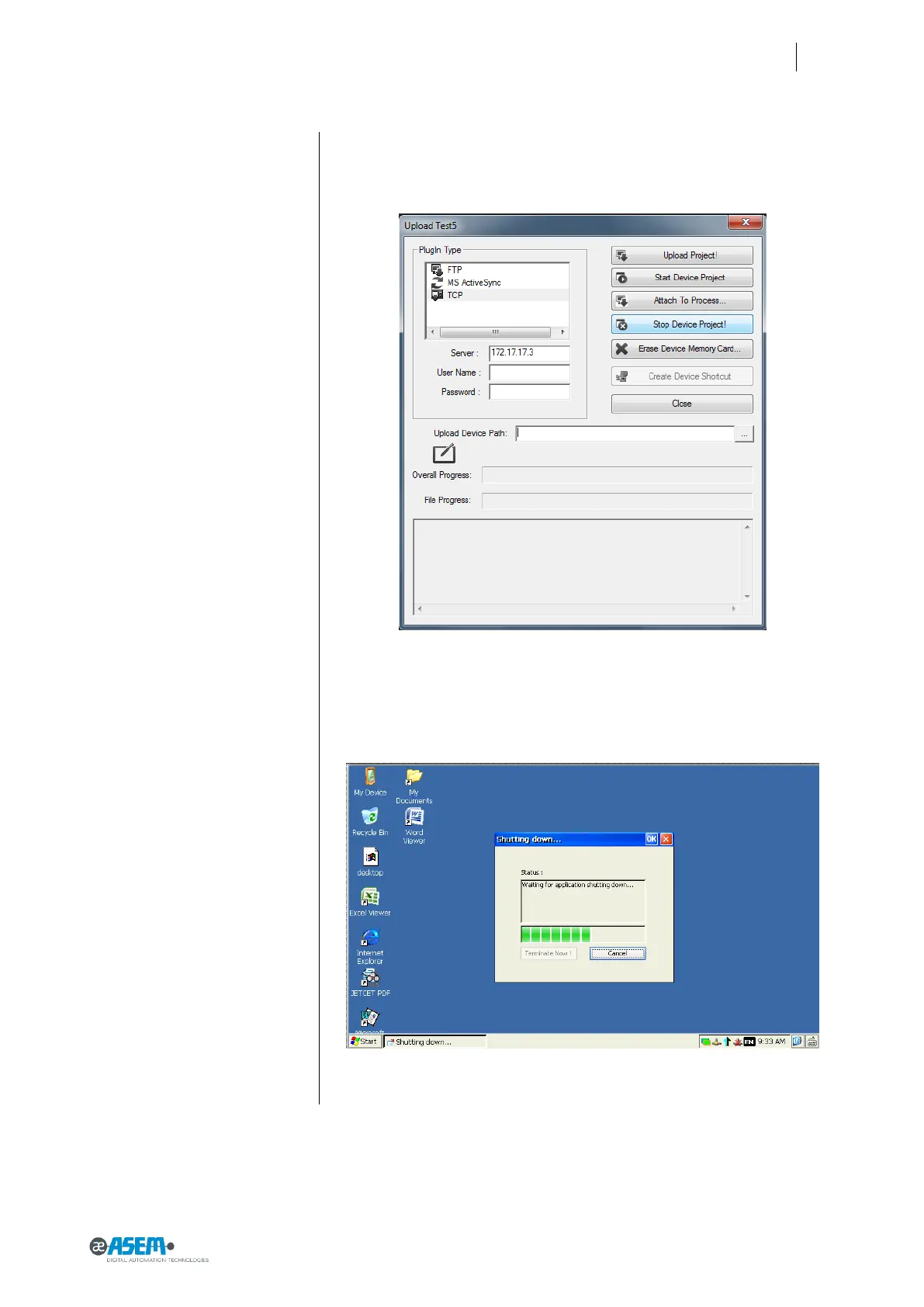

Figure 56
Stopping the running project
Figure 57
Stopping the running project
5.4.1 Stopping the running project
To stop a project running in HMI30 you must:
5. Select TCP in the upper left list
6. Write the IP address of HMI30
7. Click on the button “Stop Device Project!”
You will see the project in HMI30 stopping (see below)
