SECTION 2 - Description
Figure 14
HMI30 5.7” connectors
Figure 15
HMI30 connectors label detail
Figure 16
HMI30 CE label detail

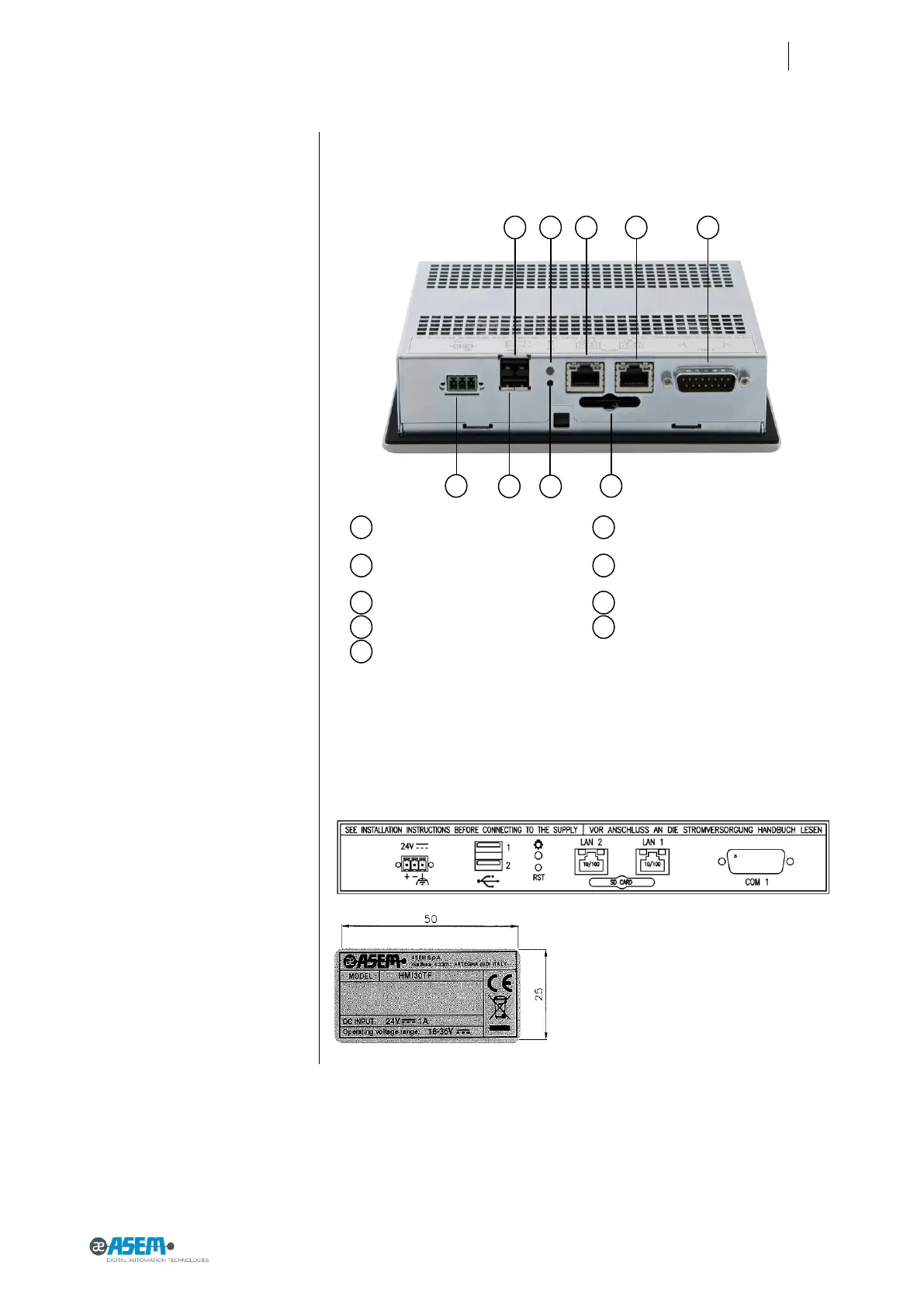

2.8 Connector view
Power DC input
LAN1 (10/100 Mbps)
Fieldbus
USB2 (2.0)
LAN2 (10/100 Mbps)
Ubiquity
Reset button
Power on LED
SD card slot
USB1 (2.0)
COM 1 (RS232/422/485 MPI)
For detailed description refer to section 8.
2.8.1 Labels
On the rear panel are present the following the connectors label and the CE la-
bel.
9
1
6
2
7
3
8
4
5
3
2
1
4
8
9
7
6
5
