76
SECTION 8 - Technical specifications

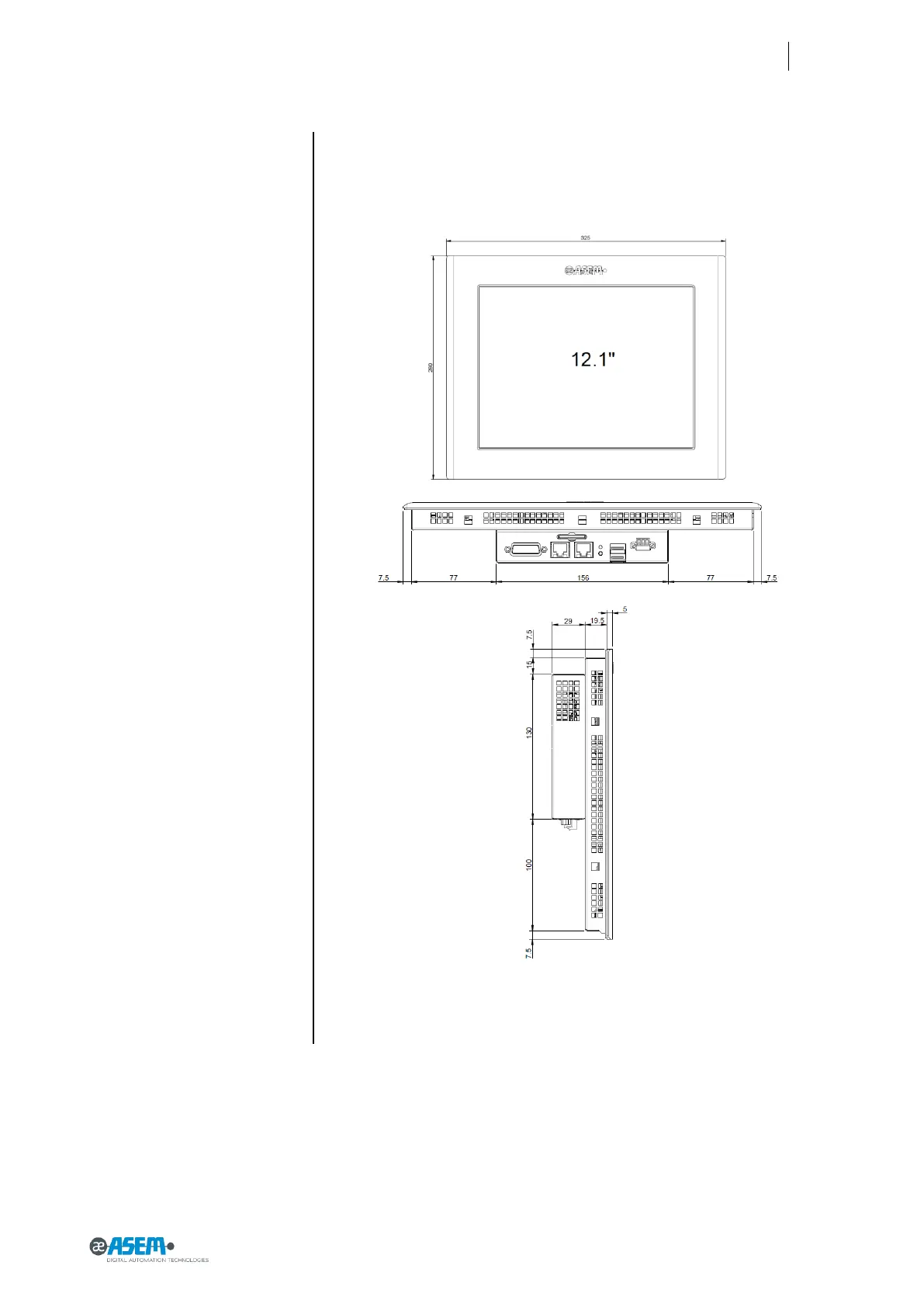

Figure 103
HMI30 12.1” front view
Figure 104
HMI30 12.1” bottom view
Figure 105
HMI30 12.1” side view
7.3.9 HMI30 12.1”
(Wide Full Aluminium front panel)
