Aspen Avionics EFD1000 - INSTALLATION MENU PAGE 2 - IAS CONFIG B

EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 130-225 Revision H
© Copyright 2009 Aspen Avionics Inc.
WARNING: Only a Certified Mechanic may set the values on Installation Menu
pages 1 and 2. The values must match the certified speeds in the
Aircraft Flight Manual (AFM), Pilot Operating Handbook (POH), or
other legal form of documentation (e.g., Placard).
INSTALLATION MENU PAGE 2 – IAS CONFIG B
Set Speed Markers per Aircraft Flight Manual

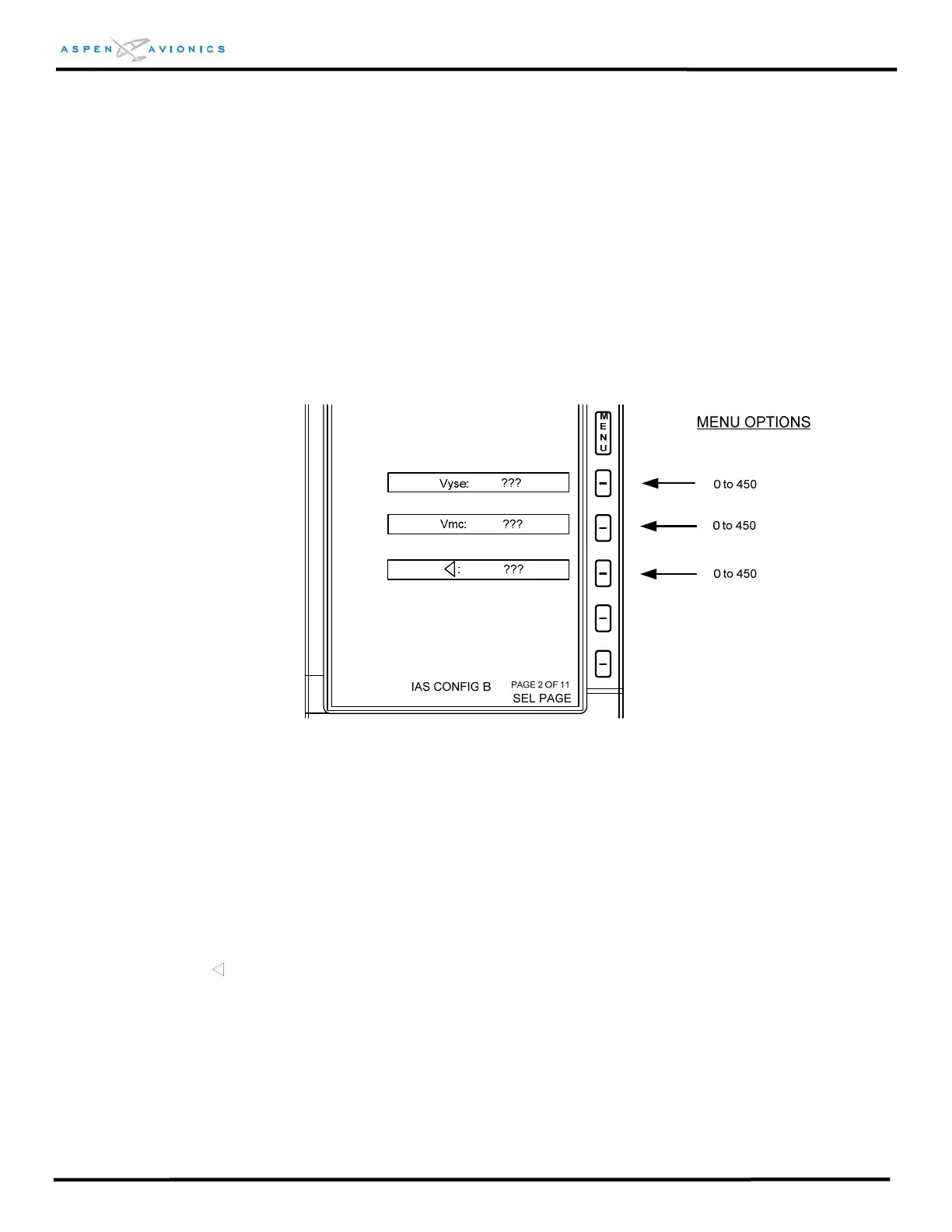

Figure 10.11 – Installation Menu Page 2
V
yse
: Single Engine best rate of climb (blue marker) on multi engine aircraft – set to
zero “0” on single engine aircraft.
V
mc
: Single Engine minimum control speed (red marker) on multi engine aircraft – set to
zero “0” on single engine aircraft.
Initial Flap Extension Speed – set to zero “0” on aircraft without a published initial
flap extension speed. For aircraft that have a published speed at which the first
notch of flap may be deployed, set to that published value.
