EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 140-225 Revision H
© Copyright 2009 Aspen Avionics Inc.
INSTALLATION MENU PAGE 9 – ACU CONFIG
The following menu configures the emulation modes for the Flight Director and HDG
and CRS Datum interfaces. The installation wiring diagrams in Section 9 have a
Configuration Matrix table that will be used to set ACU HSI TYPE and ACU FD TYPE.

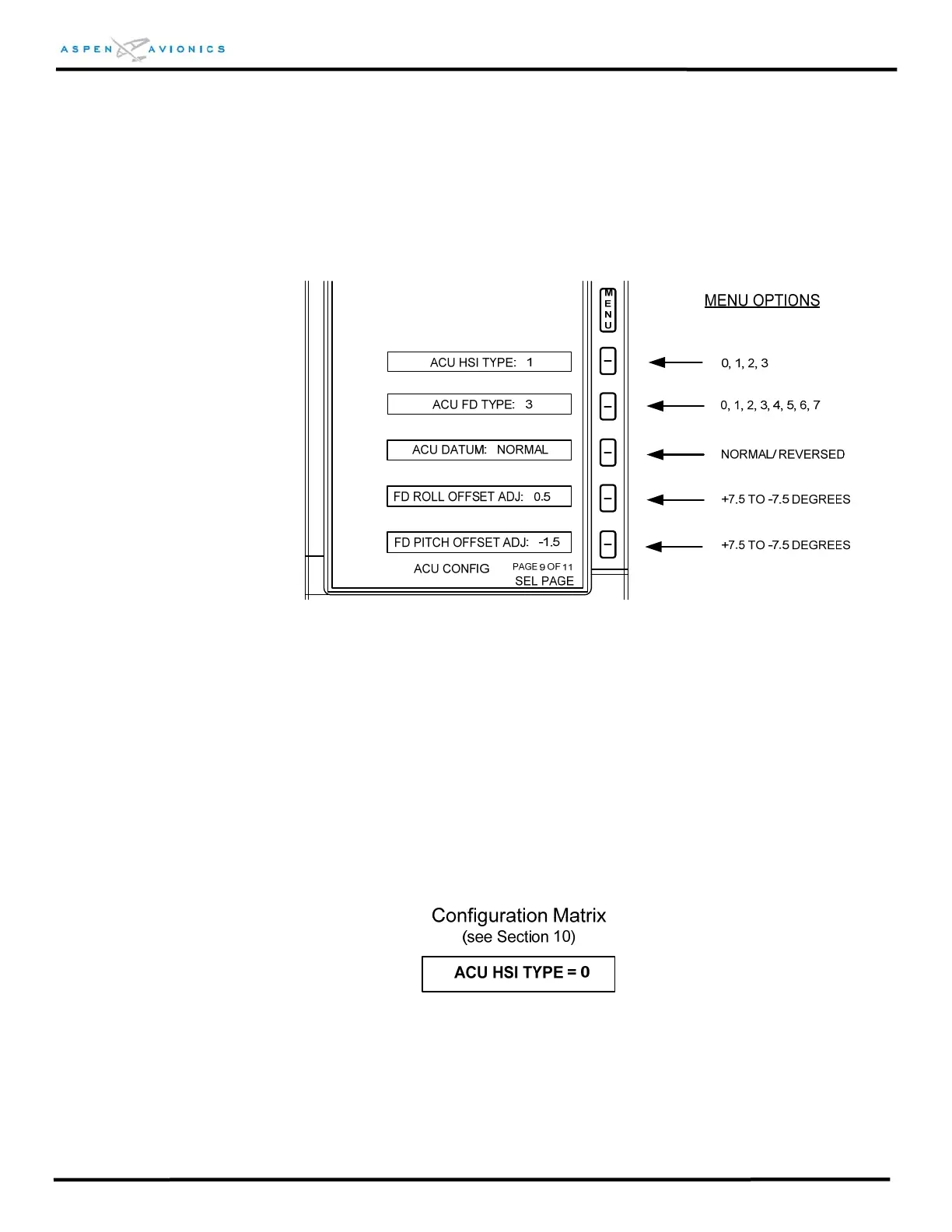

Figure 10.21 – Installation Menu Page 9
ACU HSI TYPE: 0= KI-525A, Emulates the KI-525A HSI
1= NSD-360A, Emulates the NSD-360A HSI
2= reserved
3= reserved
Below is an example from Figure 9.16 showing a KI-525A Emulation with a Bendix
King autopilot. In this case you would set the ACU HSI TYPE =0:
