Ch. 13. Cell Body and Sample Stage GuideSec. 13.3. Sample Stage / Cell Body Disassembly
3.

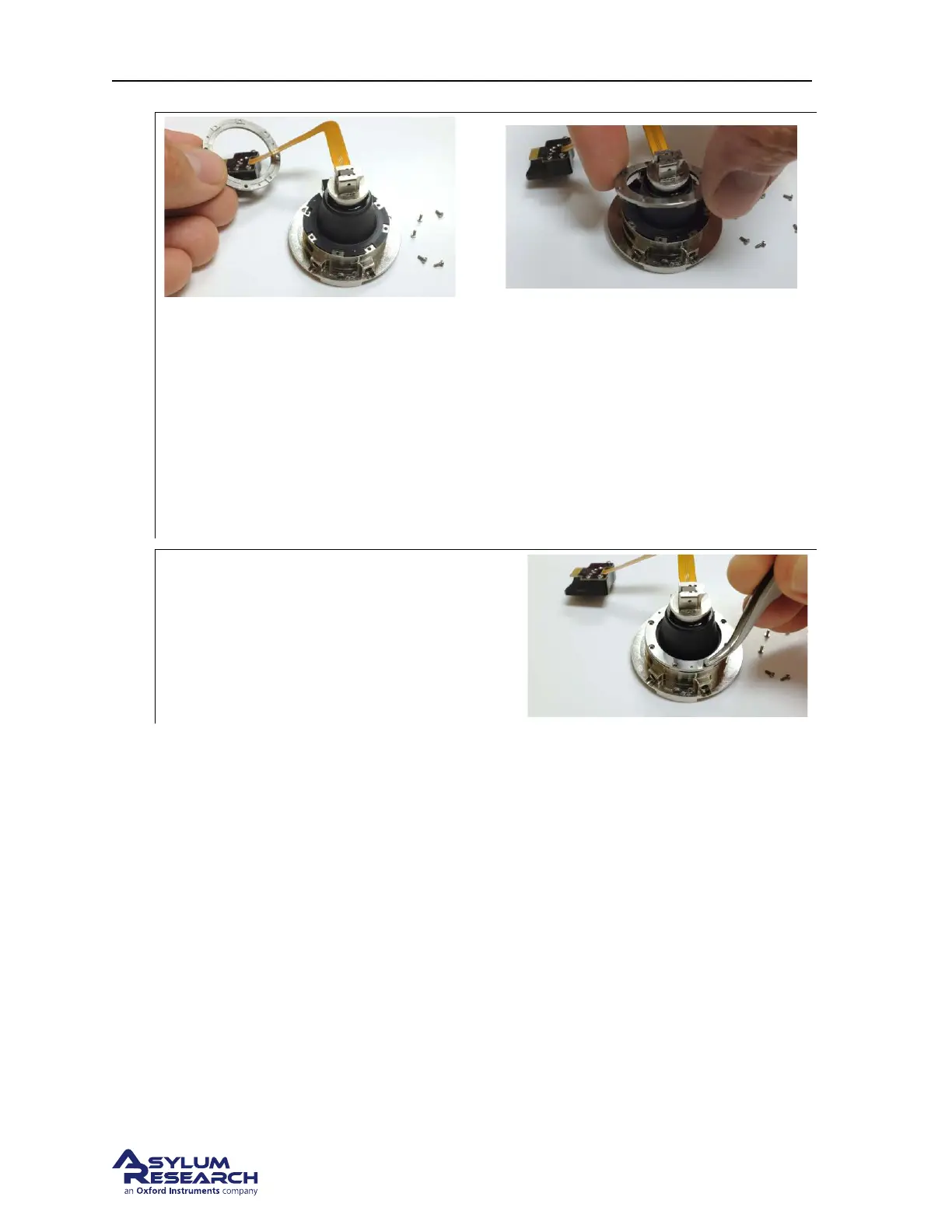

Place the ring:
• As shown in the photos, place the ring.
• The ring has three small holes that line up with the pins.
• Seat the ring flush against the diaphragm.
NOTE: The ring has a smooth side and a side with raised metal features. When the ring is
properly placed, the smooth side is showing and the raised features face the diaphragm.
4.
Place the screws:
• As shown, place all the screws in the
holes.
• Double check that the ring is not upside
down!
