Ch. 19. Air Temperature Controller Sec. 19.3. Hardware Setup
5.

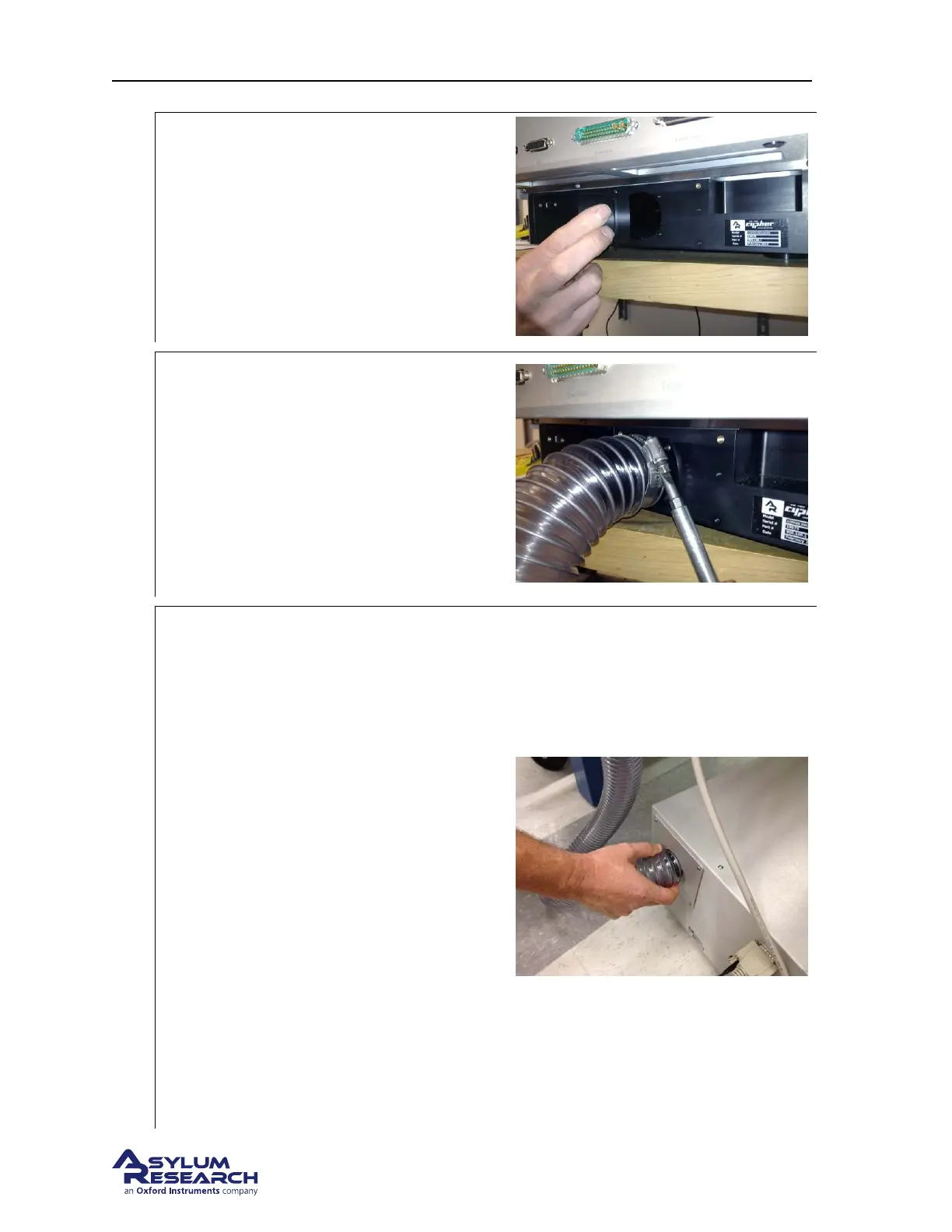

Install the air inlet fitting:
• Insert the fitting into the hole in the
enclosure. The end with the short flange
goes in the hole.
• Secure the fitting onto the enclosure
using four of the screws you removed
with the cover.
6.
Install the air hose:
• Adjust the hose clamp so it fits loosely
over the hose.
• Slide the hose clamp onto the hose.
• Push the air hose over the fitting on the
enclosure.
• Tighten the hose clamp to secure the
hose to the enclosure.
7.
Connect the air hose to the ATC:
• Place the ATC on the floor below the
table under the Cypher.
• Move the Cypher back to its normal
location.
• Route the air hose over the edge of the
table and down to the ATC.
• Push the hose into the exhaust hole on
the back of the ATC. Start by guiding
the end of the spiral wire inside the hose
into the hole. Gently push the hose and
allow the wire to go into the hole on the
ATC until about 1 to 1 1/2 turns of the
wire is inside the ATC.
Note You may need to install the ATC next
to the Cypher if your instrument position does
not allow you to have the ATC on the floor.
Be aware that the ATC has two small fans
which can possibly induce vibration into the
system.
