Remove the window assembly
Tools 0.050” hex driver or Allen wrench

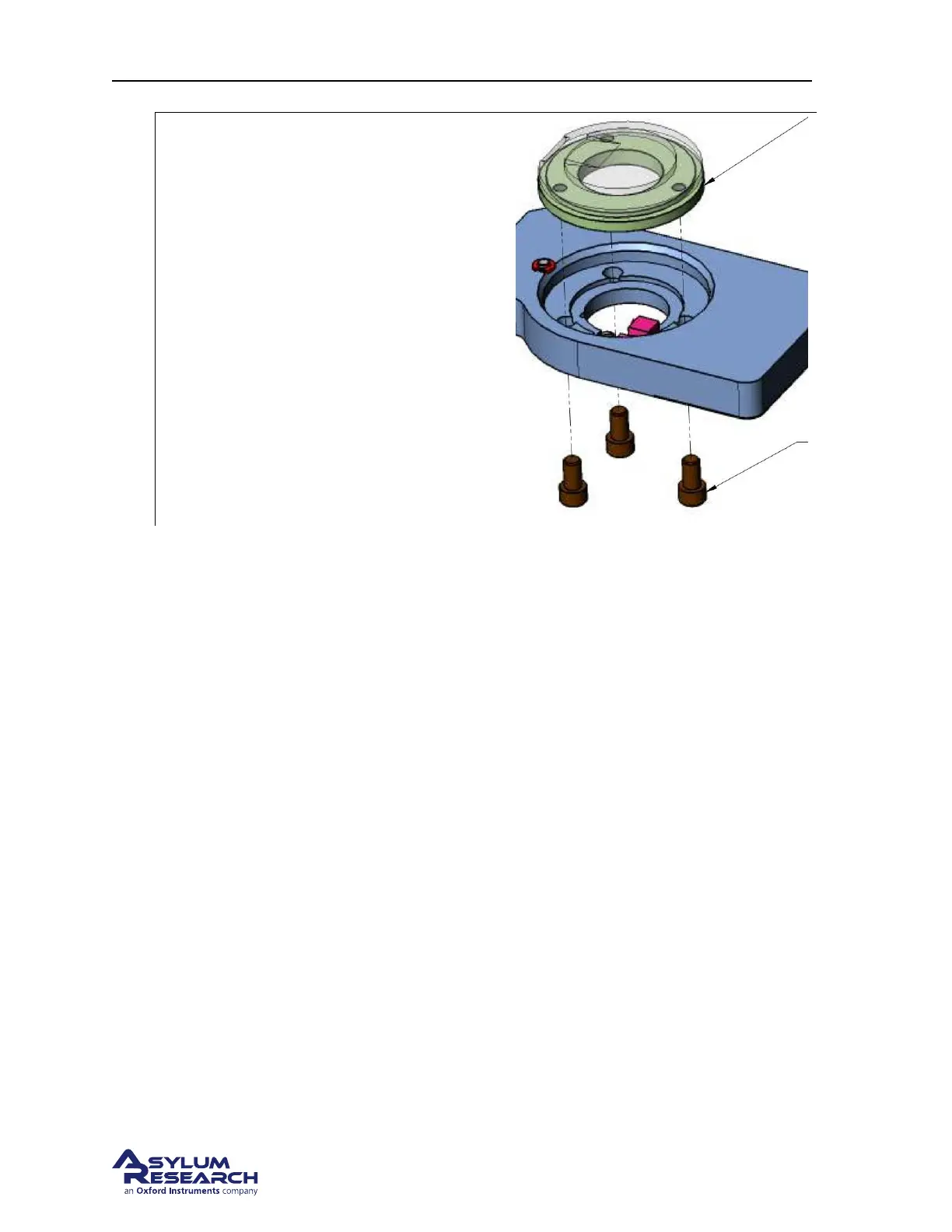

• Remove the three screws holding the
glass insert into the holder body.
• Remove the window assembly.
• Separate the silicone evaporation skirt if
installed.
7.3.1.2. Cleaning
The cantilever holder clips, spacer plates, window assembly and evaporation skirt can be cleaned by
soaking in ethanol. Sonication of the parts can also be performed. Rinse the parts in clean de-ionized
water. Dry the parts with either low-pressure compressed air or a soft tissue before reassembling the
holder.
The rest of the holder parts can be cleaned with a cotton swab and ethanol. Avoid areas with electrical
wiring or circuit boards. If you are unsure about having gotten the wrong bits wet, dry the parts (perhaps
under the warmth of a desk lamp) for a while. Dry the parts with low pressure compressed air in any
case.
