Ch. 7. iDrive Imaging Sec. 7.3. Older Models
7.3.1.3. Reassembly
1.
Optional: Install the evaporation skirt

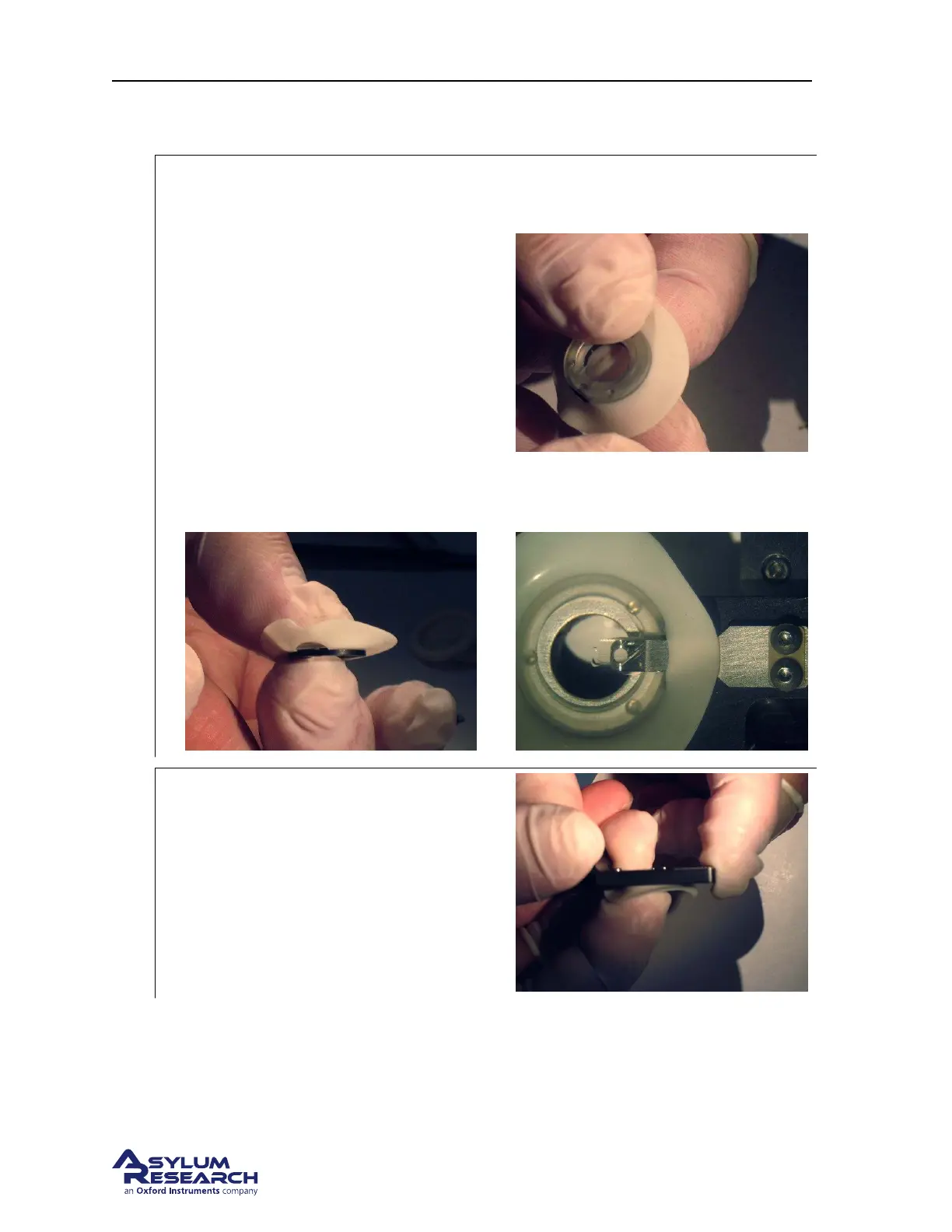

• Stretch the evaporation skirt around the
edge of the window. The edge of the
window has a small groove where the
skirt fits.
• Align the cutout in the skirt with the
cantilever pocket. The cutout is made to
allow a hole for the cantilever clip to fit
through the skirt.
Note The evaporation skirt is an optional part
and is not required for normal use. If you
decide not to use this part, please disregard
the steps where reference to the skirt is
mentioned.
2.
Position the window assembly
Tools 0.050” hex driver or Allen wrench.
• Place the window in the holder and use
a finger to gently press the window into
position.
