Ch. 7. iDrive Imaging Sec. 7.3. Older Models
3.

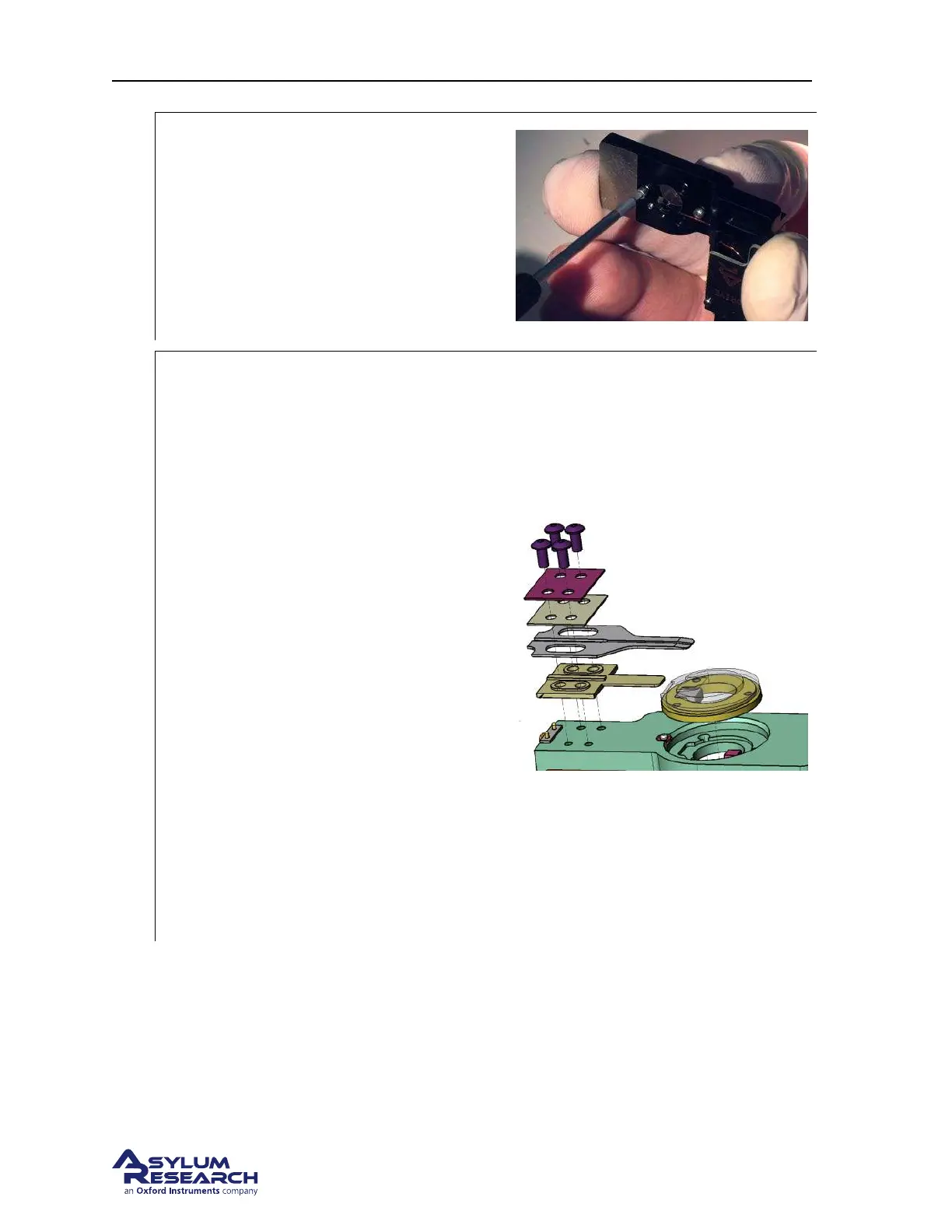

Secure the window assembly
Tools 0.050” hex driver or Allen wrench.
• Secure the window to the holder using
three 0-80 x 7/64” Socket Head Cap
Screws.
Note Do not over tighten the screws. A small
amount of torque is all that’s required.
4.
Install the cantilever clip
Tools 0.035” hex driver or Allen wrench.
• Lay the cantilever holder body circuit
board side down.
• Using tweezers, place the bottom
spacer, clip, and top spacers. Pay
attention to the raised features on the
bottom spacer. They must face up to
mate with the clips.
• The top-most spacer is metal (purple in
the drawing) the one below that is
plastic. Don’t reverse the order. The
clips must be sandwiched between
plastic or the iDrive current will be
shorted before it reaches the cantilever.
Note The tips of the clips are tapered. Be
sure the flat side is against the glass.
• If using the evaporation shield,
maneuver the clips through the hole in
the shield.
• Thread in the 0-80x1/8” button head
screws by only a few turns.
