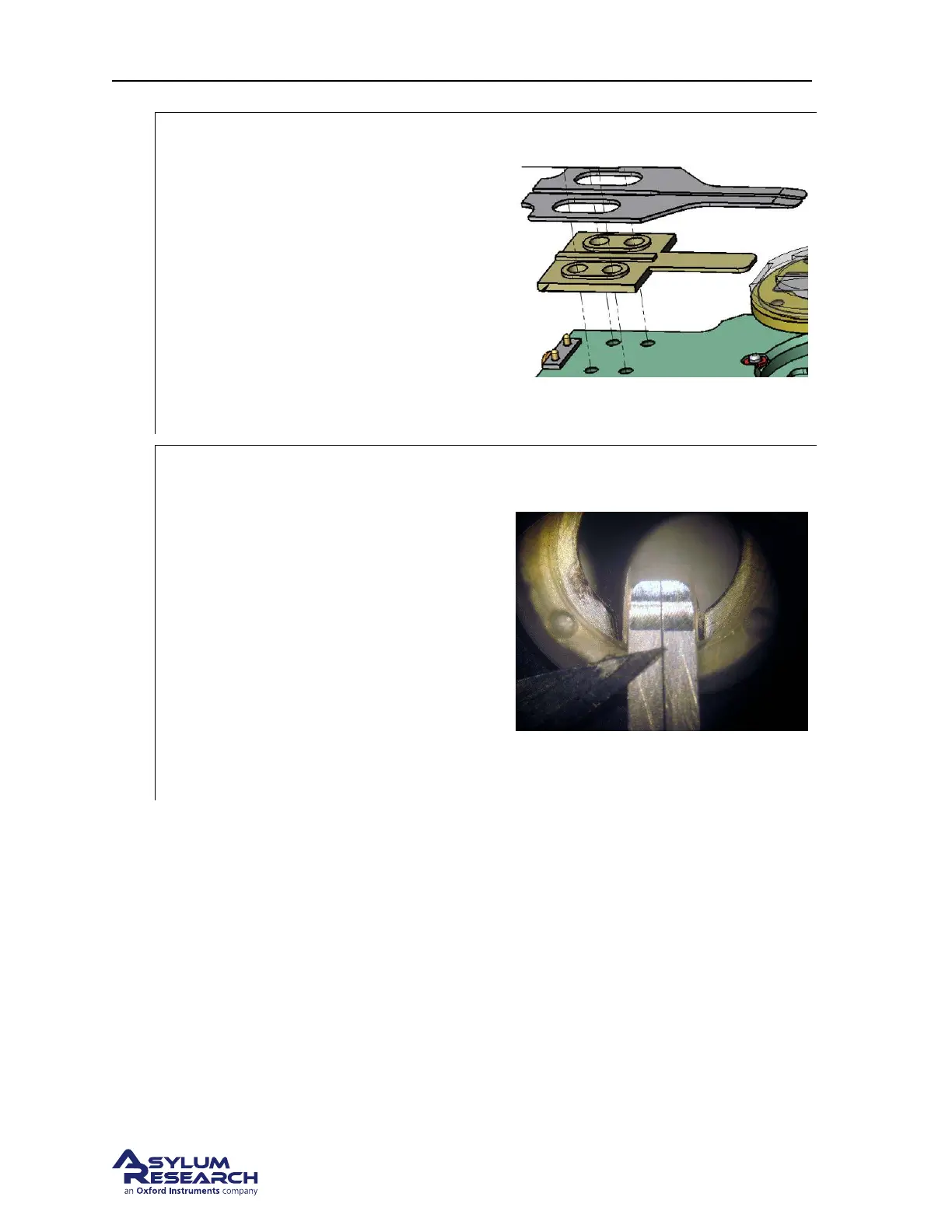

Settle the parts together.
• Adjust the clips so that they seat over
the raised portions of the lower
insulator. As you shift the position of
the clips they will locate around the
raised areas on the lower insulator.
When this happens the clips will feel
looser in the stack up of the assembly.
• Continue to gently tighten the screws
and readjusting the clip position until
the gap between the parts is gone. Do
not tighten the screws yet.
6.
Adjust clips, tighten screws
Optional Tools Stereoscope, scalpel or razor
blade.
• Inspect the two clips at the end where
the cantilever is held. The two clips
should not touch. Adjust the clips if
necessary. The point of a sharp razor or
scalpel works well for this step. A
stereoscope helps to see the details.
• Gently tighten the screws. Do not over
tighten the screws. A small amount of
torque is all that is required. Use only
your fingertips on the hex driver tool.
