Atlas Copco DC 200

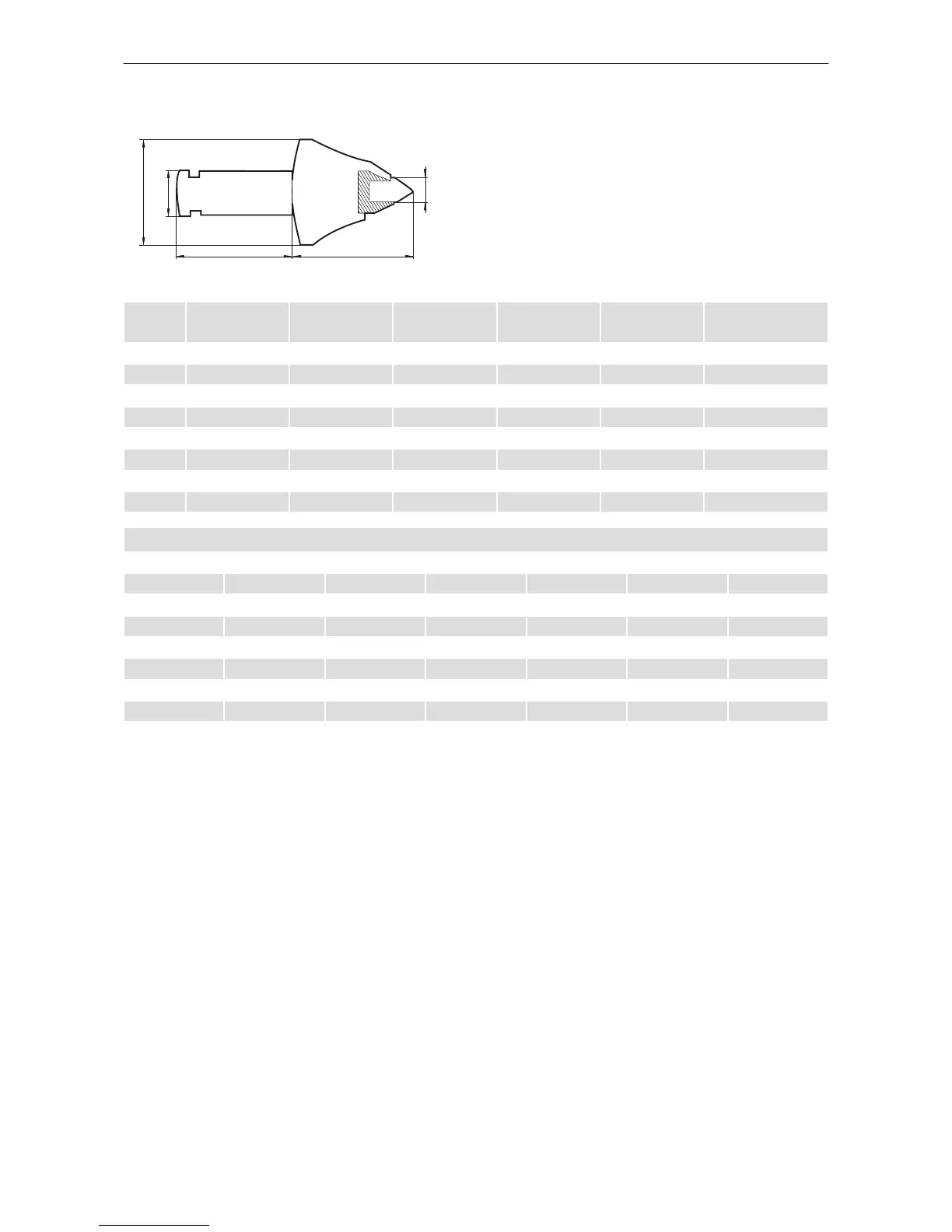

Standard round attack picks
Ø
T
L
H
L
S
Ø
H
Ø
S
Type Ø
S
Shaft diameter
L
S
Shaft length
Ø
H
Head diameter
L
H
Head length
Ø
T
Tip diameter
Locking system
DC 200 11.4 mm (0.45 in.) 26.0 mm (1.02 in.) 24.0 mm (0.94 in.) 28.0 mm (1.10 in.) 11.5 mm (0.45 in.) Knock on retainer
DC 400 20.0 mm (0.79 in.) 41.0 mm (1.61 in.) 38.0 mm (1.50 in.) 45.0 mm (1.77 in.) 12.0 mm (0.47 in.) Retainer sleeve
DC 600 22.0 mm (0.87 in.) 56.5 mm (2.22 in.) 38.0 mm (1.50 in.) 42.0 mm (1.65 in.) 12.0 mm (0.47 in.) Knock on retainer
DC 1000 25.0 mm (0.98 in.) 78.5 mm (3.09 in.) 60.0 mm (2.36 in.) 64.0 mm (2.52 in.) 17.0 mm (0.67 in.) Quick snap retainer
DC 1200 25.0 mm (0.98 in.) 78.5 mm (3.09 in.) 60.0 mm (2.36 in.) 64.0 mm (2.52 in.) 17.0 mm (0.67 in.) Quick snap retainer
DC 2000 30.0 mm (1.18 in.) 80.0 mm (3.15 in.) 70.0 mm (2.76 in.) 75.0 mm (2.95 in.) 17.0 mm (0.67 in.) Quick snap retainer
DC 2100 30.0 mm (1.18 in.) 80.0 mm (3.15 in.) 70.0 mm (2.76 in.) 75.0 mm (2.95 in.) 17.0 mm (0.67 in.) Quick snap retainer
DC 2900 30.0 mm (1.18 in.) 80.0 mm (3.15 in.) 70.0 mm (2.76 in.) 75.0 mm (2.95 in.) 19.0 mm (0.75 in.) Quick snap retainer
Set of tools for round attack pick
Type A B C D E F
DC 200
DC 400 x x x
DC 600 x x x x
DC 1000 x x x
DC 1200 x x x
DC 2000 x x x
DC 2100 x x x
DC 2900 x x x
A. Knock out tool
B. Knock out tool for stuck picks
C. Mounting tool for knock on retainer
D. Dismantling tool for knock on retainer
E. Puller tool for quick snap retainers
F. Puller for retainer sleeve picks
Special accessories as ordered:
•
e.g. adapter plate with Allen screws and pairs of lock washers
•
e.g. base plate to construct an adapter plate with Allen screws and pairs of lock washers
•
e.g. hydraulic fittings for the carrier
DC 200, 400, 600, 1000, 1200, 2000, 2100, 2900 Safety and operating instructions
