Atlas Copco DC 200

Hydraulic settings DC 1000

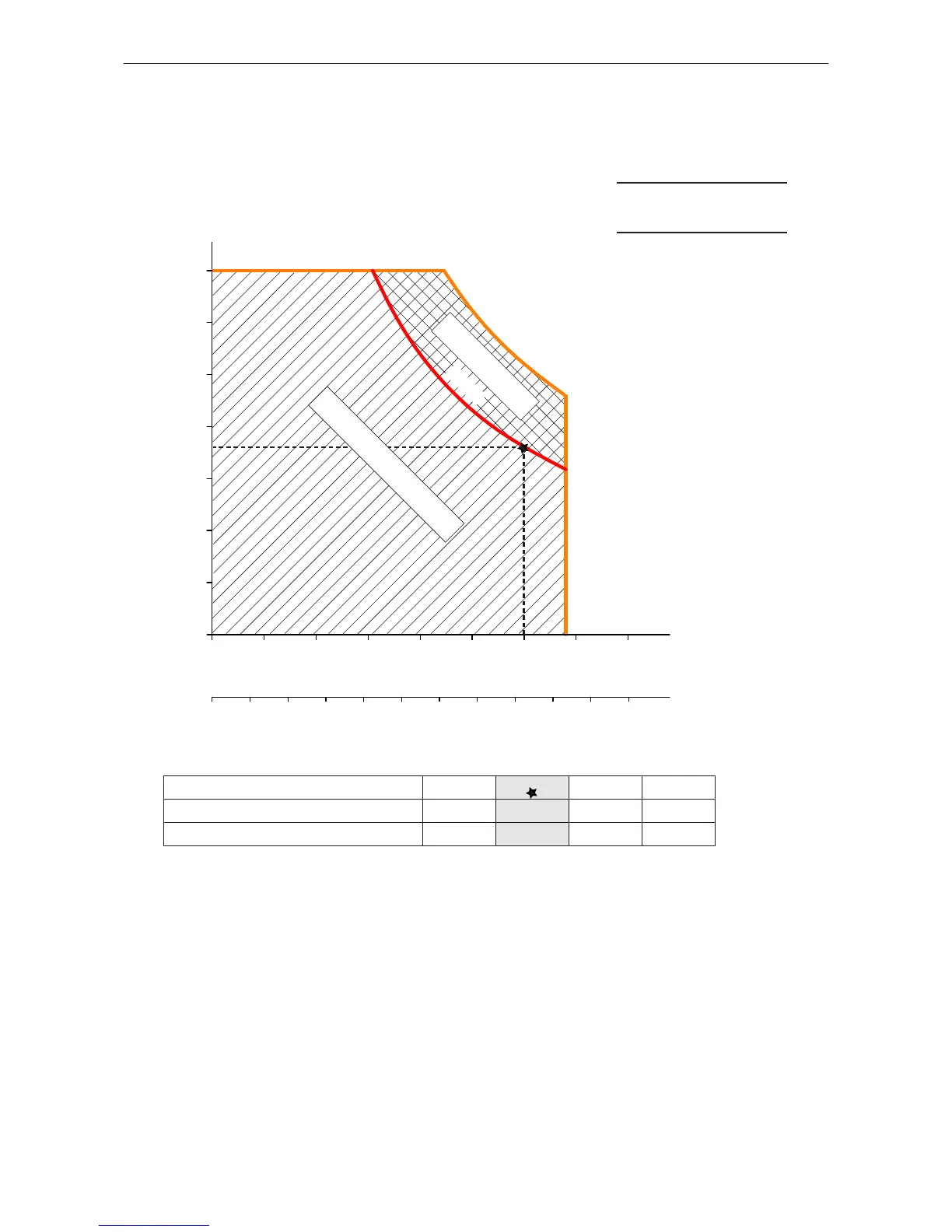

The combination of oil flow rate and operating pressure must not exceed the nominal power of the Drum
Cutter.
Operating pressure (bar)
Oil flow rate (l/min)
Rotational speed (rpm)
0 25 50
20100 4030 6050 80 100 11070 90
50
100
200
300
150
250
350
150 175 20012575 100
45 kW
65 kW
Oil flow rate [l/min] =
Nominal power [kW] x 600
Operating pressure [bar]
Operating pressure [bar] =
Nominal power [kW] x 600
Oil flow rate [l/min]
max. power range
Recommended power range
recommended
Oil flow rate (l/min)
Operating pressure (bar)
Note:
The transverse drum cutter must not be operated simultaneously at maximum operating pressure and
maximum oil flow rate, otherwise the permissible nominal power is exceeded. The transverse drum cutter
must be operated within the recommended power range.
The higher the operating pressure the higher the cutting force and torque.
The higher the oil flow the higher the rotational speed and pick speed.
