Atlas Copco DC 200

Replace round attack pick with retaining
sleeve
The following special equipment is required to
replace the round attack picks:
•

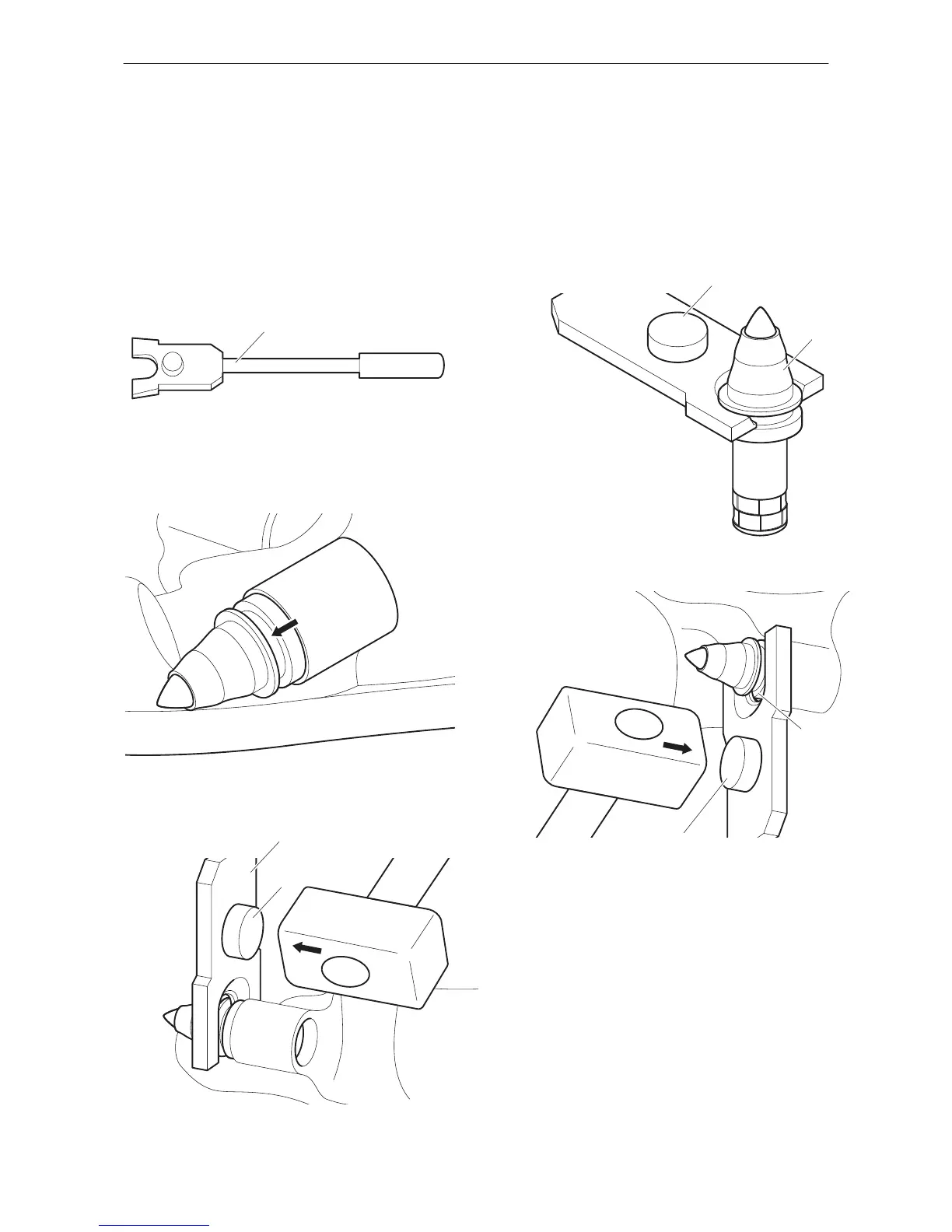

Puller (E) for pick with retaining sleeve
The special equipment is included in the scope of
delivery.
E
The round attack pick has a notch (see arrow).
1. Slide the puller (E) into the notch of the round
attack pick with the impact surface (F) directed
to the cutter drum.
E
F
2. Grip the puller (E) firmly in the hand.
3. Give the impact surface (F) of the puller (E) a
forceful blow with a hammer.
The round attack pick will loosen from the pick
box.
4. Pull round attack pick out of the pick box.
5. Clean the pick box.
6. Place a new round attack pick (G) in the notch
of the puller. The tip of the pick must point in
the direction of the impact surface (F).
G
F
7. Place the new round attack pick in the puller
and place in the opening of the pick box (H).
H
F
8. Give the impact surface (F) of the puller a
forceful blow with a hammer.
The round attack pick is anchored in the pick
box by the retaining sleeve on the shaft.
Safety and operating instructions DC 200, 400, 600, 1000, 1200, 2000, 2100, 2900
46 © Construction Tools GmbH | 3390 5192 01 | 2016-12-01
Original instructions
