Atlas Copco DC 200

Hydraulic installation version 2 for hydraulic shear systems
A
C
D
E
F
G
I
B
H
- Parts not included in the scope of delivery
+ Parts included in the scope of delivery

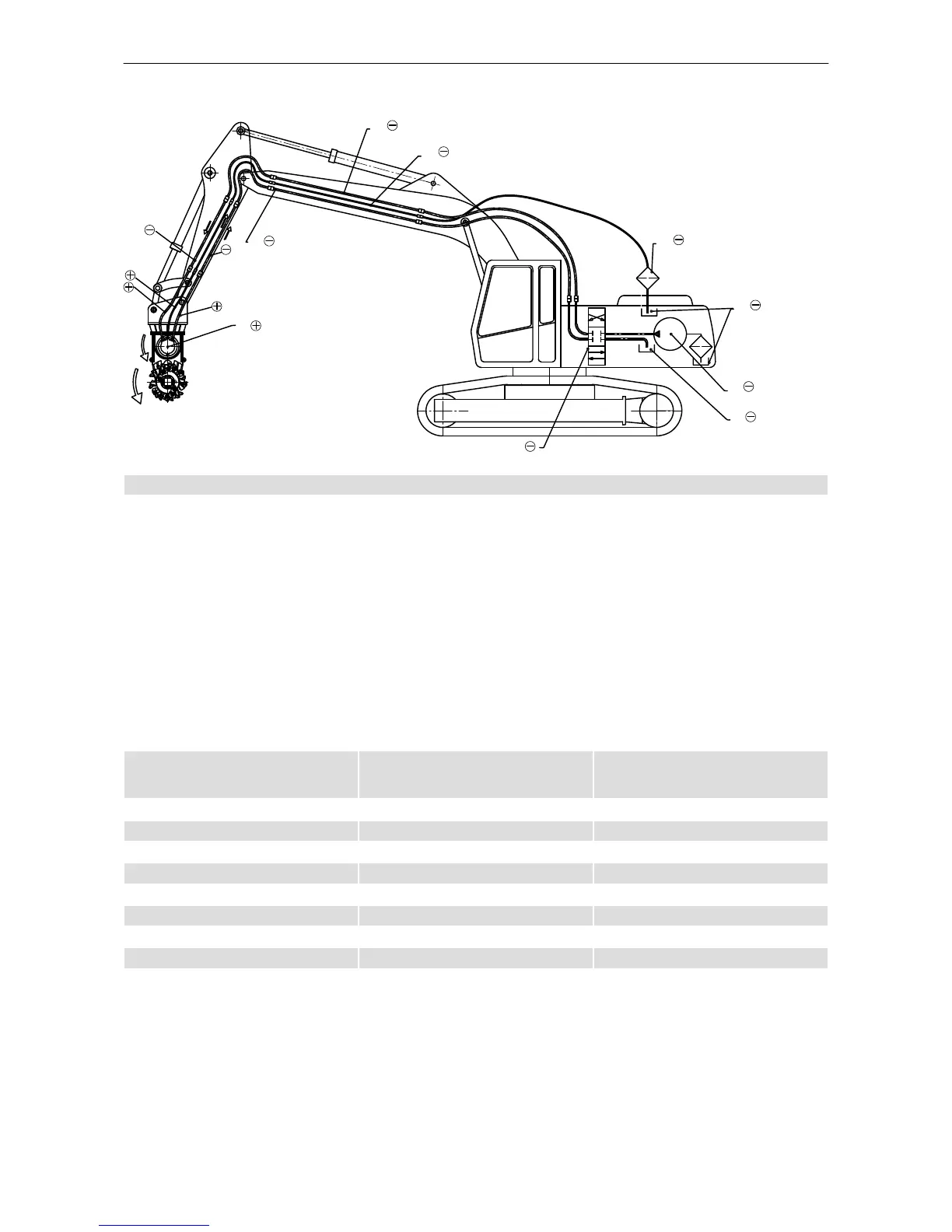

A. Pressure line (High pressure HP) 350 bar (5075 PSI) max., Q = X l/min (Y gal/min)
B. Leakage oil line, Leakage oil pressure 3 bar (43.5 PSI) max.
C. Additional leakage oil filter
D. Oil tank
E. Oil pump
F. Tank
G. Valve block
H. Hydraulic motor
I. Tank line (Low pressure LP) 15 bar (217.5 PSI) min.
Oil flow
Type
X
Q
max
(l/min)
Y
Q
max
(gal/min)
DC 200 60 15.8
DC 400 90 23.7
DC 600 100 26.4
DC 1000 170 44.9
DC 1200 250 66.0
DC 2000 320 84.4
DC 2100 320 84.4
DC 2900 410 108.0
DC 200, 400, 600, 1000, 1200, 2000, 2100, 2900 Safety and operating instructions
