430HD and 440HD IP Phone
User's Manual 62 Document #: LTRT-11938

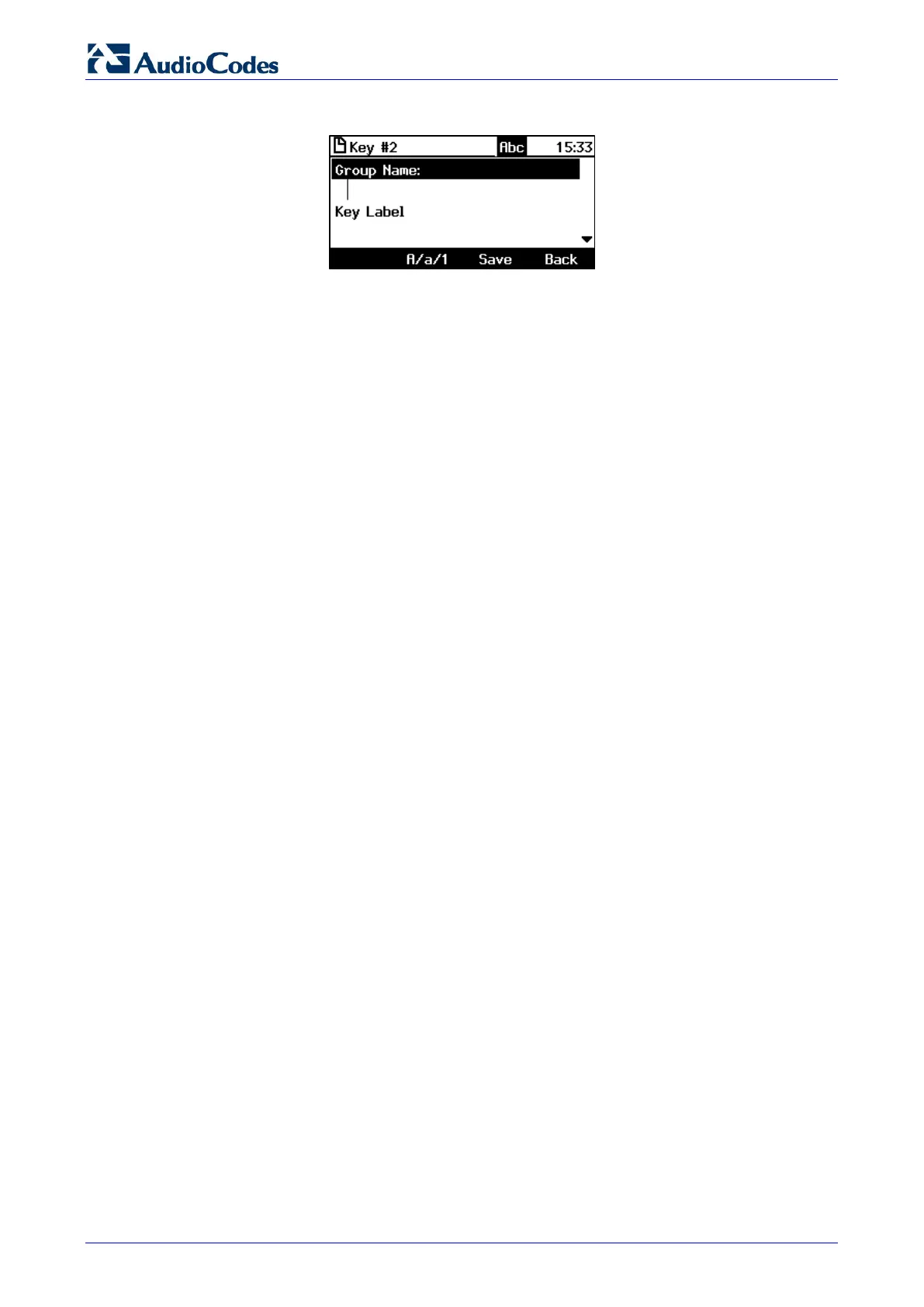

4. Press the Select softkey:
5. In the 'Group Name' field, enter the name of the group, to be displayed in the phone's LCD
when there's an incoming / outgoing paging call.
6. In the ‘Key Label’ field, define a name for the Programmable Key-Paging Dial, to be
displayed in the phone's LCD.
7. In the 'Multicast Address' field, enter the paging group's multicast IP address.
Default: 224.0.1.0. For phones to be in a group, all must be configured with the identical
multicast address.
8. In the 'Multicast Port' field, enter the group's port. Default: 8888. For phones to be in a group,
all must be configured with the identical port.
9. Press the Save softkey; the Programmable Key is now configured for paging.
