Installation and Maintenance Manual 22 LTRT-33443

Mediant SBA

3.3 Mediant 1000B Front-Panel Description

The front panel of the device provides various port interfaces for the optional SBC-Gateway

functionality.

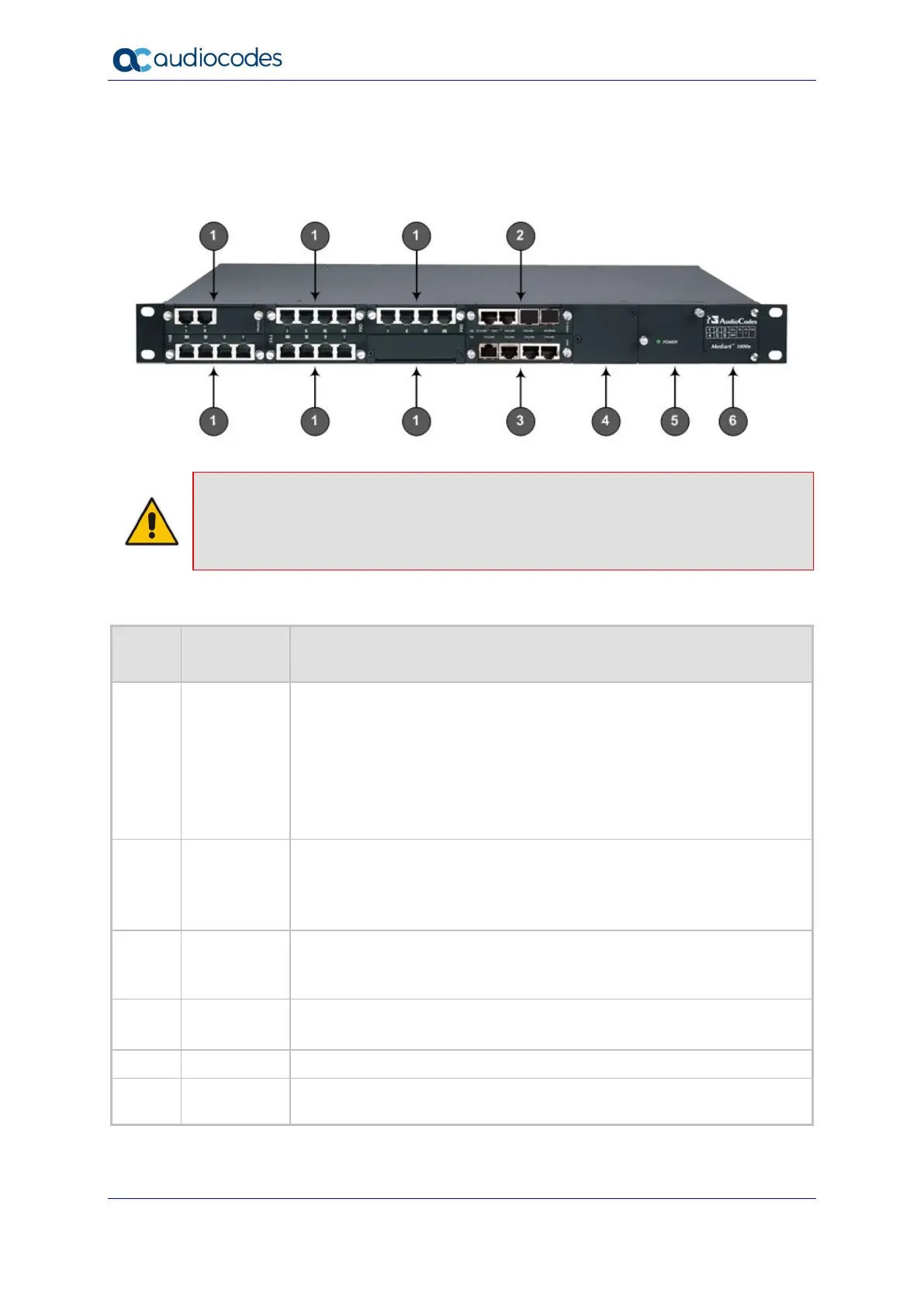

Figure 3-5: Front Panel

Note:

• The telephony interfaces are customer-ordered items and not shipped by default.

• The figure above is used only as an example. The number and type of interface

modules depend on the ordered configuration.

Table 3-3: Front-Panel Description

Item #

Label /

Module

Component Description

1 FXS,

FXO,

BRI,

TRUNKS,

MPM

(Optional) Telephony and DSP resource modules:

 FXS module

 FXO (or FXO G) module

 BRI module

 TRUNKS (E1/TE/J1) module

 MPM module (provides additional DSP resources)

Note: The modules are customer-ordered items.

2 CRMX CRMX module, providing the following:

 Gigabit Ethernet ports

 RS-232 serial port

 Reset pinhole button

3 SWX (Optional) LAN Extension (SWX) module, providing four Gigabit Ethernet

ports.

Note: The module is a customer-ordered item.

4 Power 1 (Optional) Spare Power Supply module slot.

Note: The module is a customer-ordered item.

5 Power 2 Main Power Supply module.

6 -

Extractable Fan Tray module with a schematic displayed on its front

panel showing the chassis' slot numbers.
