3.4 Mediant 1000B Rear-Panel Description

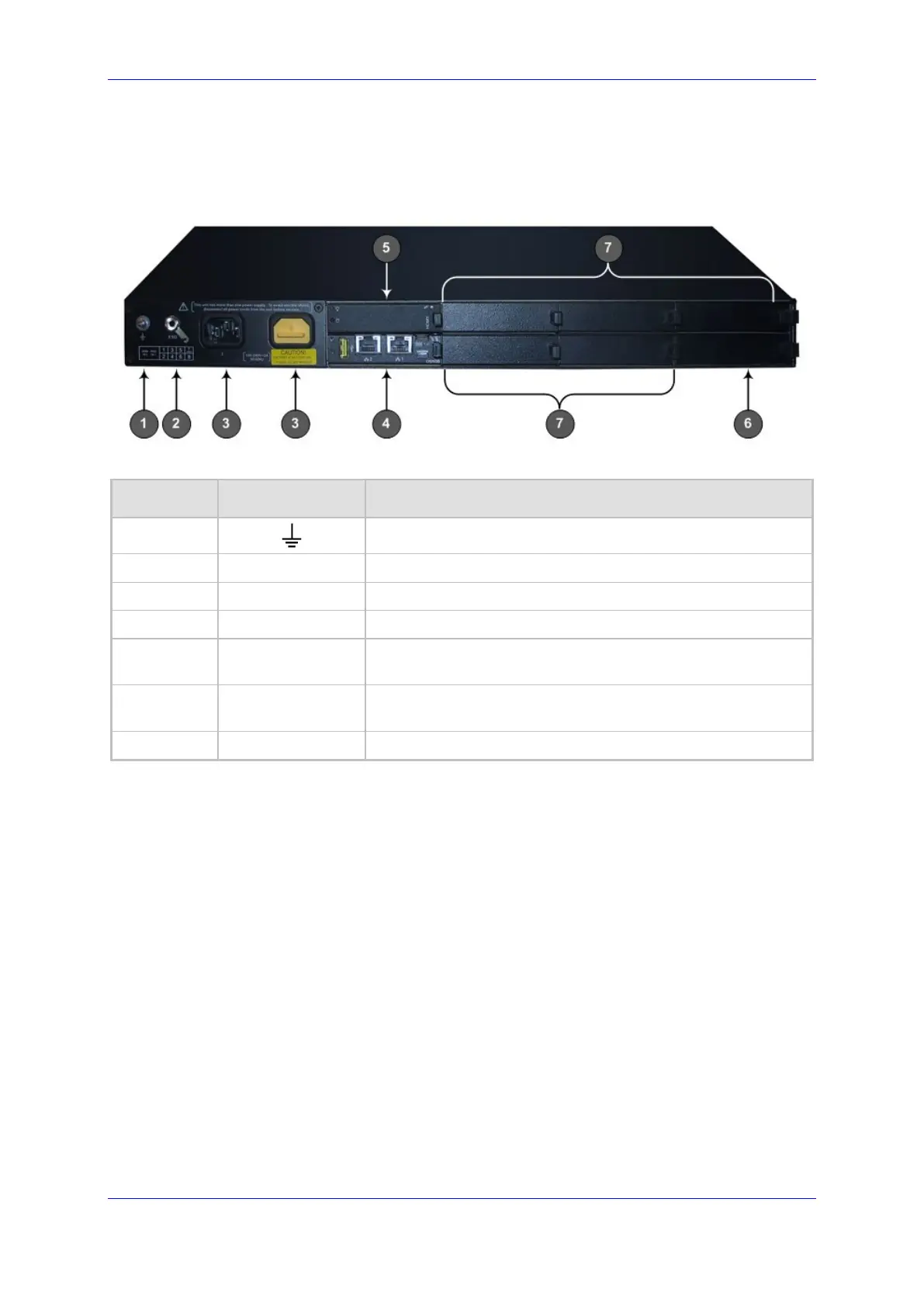

The rear panel of the device provides the modules for the OSN server on which the DR-SBA
runs.
Figure 3-6: Rear Panel
Table 3-4: Rear-Panel Description
Item # Label Description
1
Protective earthing screw.
2 ESD Electrostatic Discharge (ESD) socket.
3 100-240V~1A Dual AC Power Supply Entries.
4 OSN OSN module. For available OSN modules,
5 HDMX
Main hard-disk drive (HDD) or Solid-State Drive (SSD) AMC
module for OSN server platform.
6 HDMX
Slot for second (optional) HDD or SSD for OSN server
platform.
7 - Unused and covered AMC module slots.
