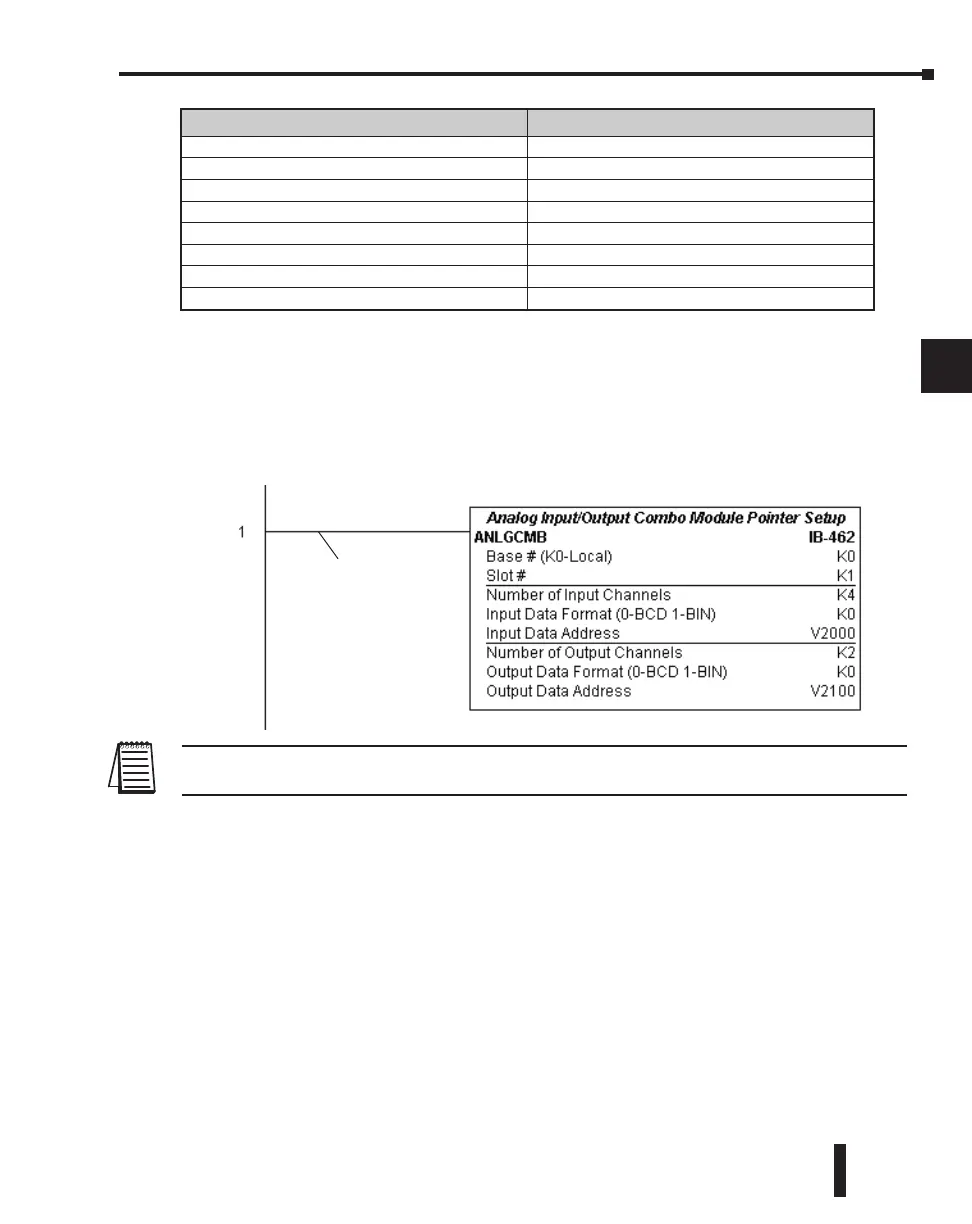

ANLGCMB Example
In the following example, the ANLGCMB instruction is used to set up the pointer method
for an analog I/O combination module that is installed in option slot 2. Four input channels
are enabled and the analog data will be written to V2000 - V2003 in BCD format. Two
output channels are enabled and the analog values will be read from V2100 - V2101 in BCD
format.
NOTE: An Analog I/O IBox instruction is used without a permissive contact. The top line will be identified in
BOLD italics, and the instruction name and ID will be in BOLD characters.
No permissive contact
or input logic is used
with this instruction
Parameter DL205 Range
Base # (K0-Local) . . . . . . . . . . . . . . . . . . . . . . . K K0-3
Slot # . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K K0-7
Number of Input Channels . . . . . . . . . . . . . . . . K K1-8
Input Data Format (0-BCD 1-BIN). . . . . . . . . . . K BCD: K0; Binary: K1
Input Data Address . . . . . . . . . . . . . . . . . . . . . . V See DL205 V-memory map - Data Words
Number of Output Channels . . . . . . . . . . . . . . . K K1-8
Output Data Format (0-BCD 1-BIN) . . . . . . . . . K BCD: K0; Binary: K1
Output Data Address . . . . . . . . . . . . . . . . . . . . . V See DL205 V-memory map - Data Words
