DL205 User Manual, 4th Edition, Rev. B
Chapter 5: Intelligent Box (IBox) Instructions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

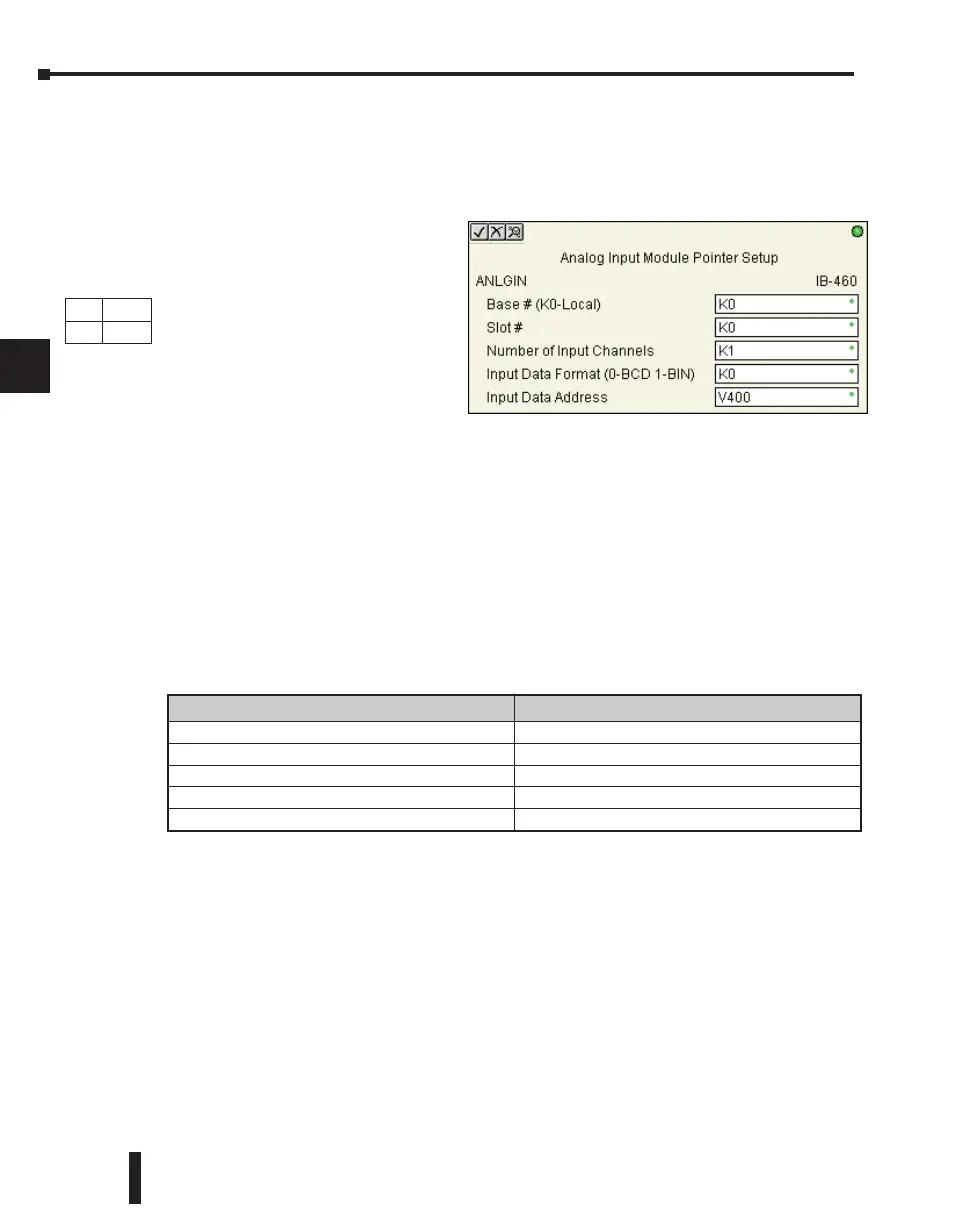

Analog Input Module Pointer Setup (ANLGIN) (IB-460)
Analog Input Module Pointer Setup generates the logic to configure the pointer method for
one analog input module on the first PLC scan following a Program to Run transition.
This IBox determines the data format
and Pointer addresses based on the
CPU type, the Base#, and the Slot#.
The Input Data Address is the starting
location in user V-memory where the
analog input data values will be stored,
one location for each input channel
enabled.
Since this logic only executes on the
first scan, this IBox cannot have any
input logic.
ANLGIN Parameters
• Base # (K0-Local): specifies which base the analog module is in
• Slot #: specifies which PLC slot is occupied by the analog module
• Number of Input Channels: specifies the number of input channels to scan
• Input Data Format (0-BCD 1-BIN): specifies the analog input data format (BCD or Binary) - the
binary format may be used for displaying data on some OI panels
• Input Data Address: specifies the starting V-memory location that will be used to store the analog
input data
D
S5
U
sed
HPP
N/A
Parameter DL205 Range
Base # (K0-Local) . . . . . . . . . . . . . . . . . . . . . . . K K0-3
Slot # . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K K0-7
Number of Input Channels . . . . . . . . . . . . . . . . K K1-8
Input Data Format (0-BCD 1-BIN). . . . . . . . . . . K BCD: K0; Binary: K1
Input Data Address . . . . . . . . . . . . . . . . . . . . . . V See DL205 V-memory map - Data Words
5–234
