Chapter 5: Intelligent Box (IBox) Instructions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

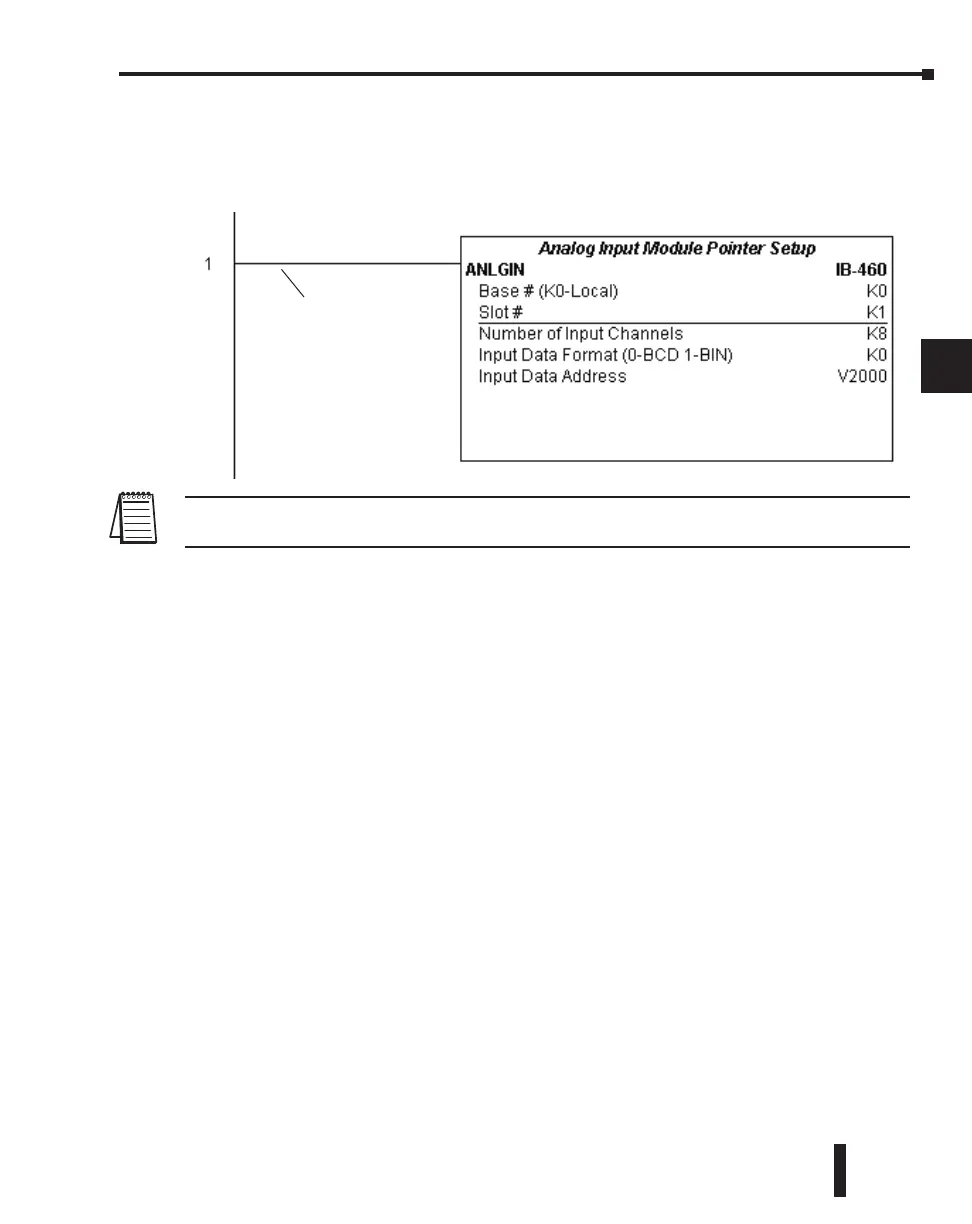

ANLGIN Example
In the following example, the ANLGIN instruction is used to set up the pointer method for
an analog input module that is installed in option slot 1. Eight input channels are enabled
and the analog data will be written to V2000 - V2007 in BCD format.
NOTE: An Analog I/O IBox instruction is used without a permissive contact. The top line will be identified in
BOLD italics, and the instruction name and ID will be in BOLD characters.
No permissive contact or
input logic is used with
this instruction
