DL205 User Manual, 4th Edition, Rev. B
5–237
Chapter 5: Intelligent Box (IBox) Instructions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

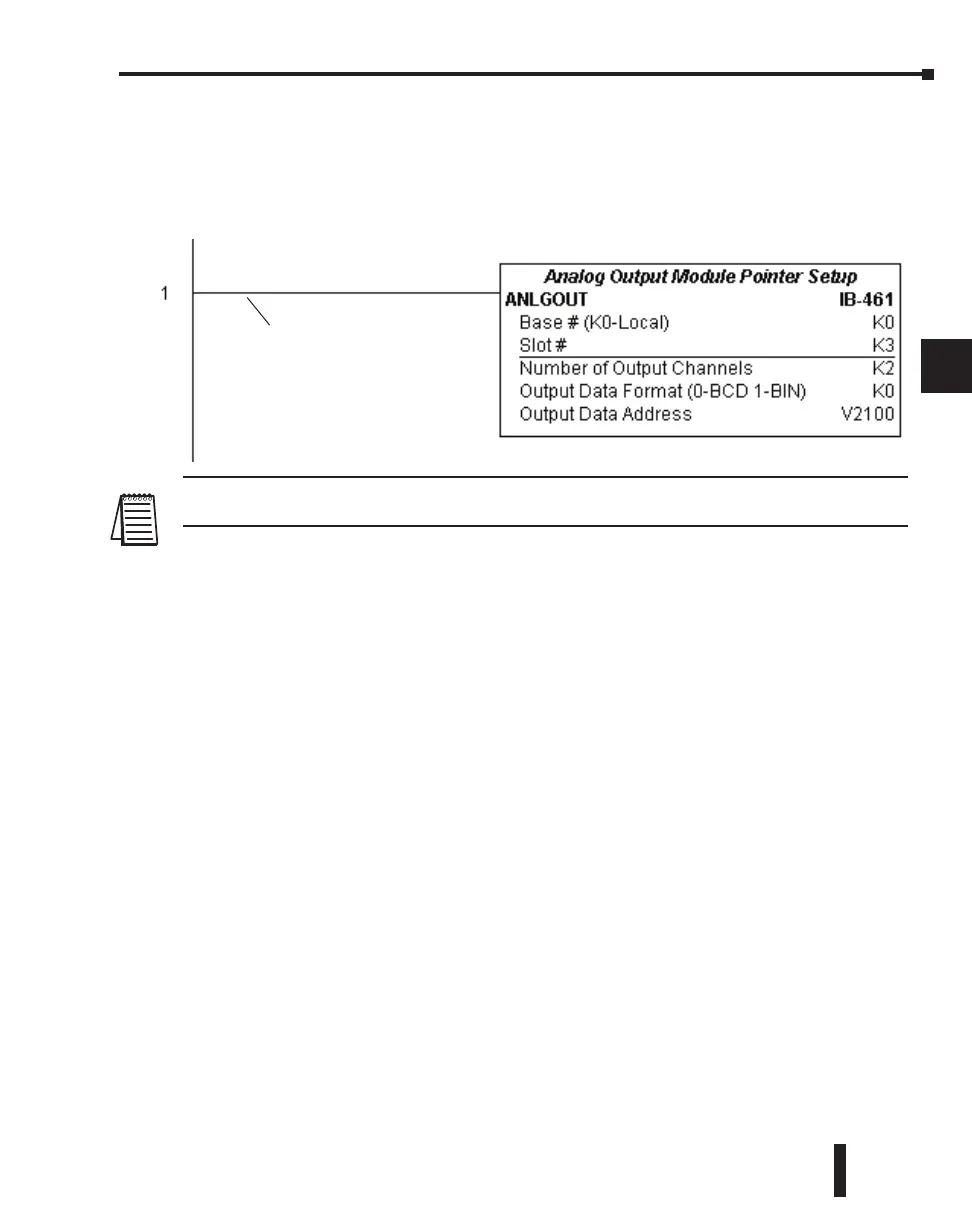

ANLGOUT Example
In the following example, the ANLGOUT instruction is used to set up the pointer method
for an analog output module that is installed in option slot 3. Two output channels are
enabled and the analog data will be read from V2100 - V2101 in BCD format.
NOTE: An Analog I/O IBox instruction is used without a permissive contact. The top line will be identified in
BOLD italics, and the instruction name and ID will be in BOLD characters.
No permissive contact or input logic is
used with this instruction
To Next Page
