Upgrading and administering the existing hardware
70 Migrating to the Avaya S8700 or S8710 Media Server
June 2004

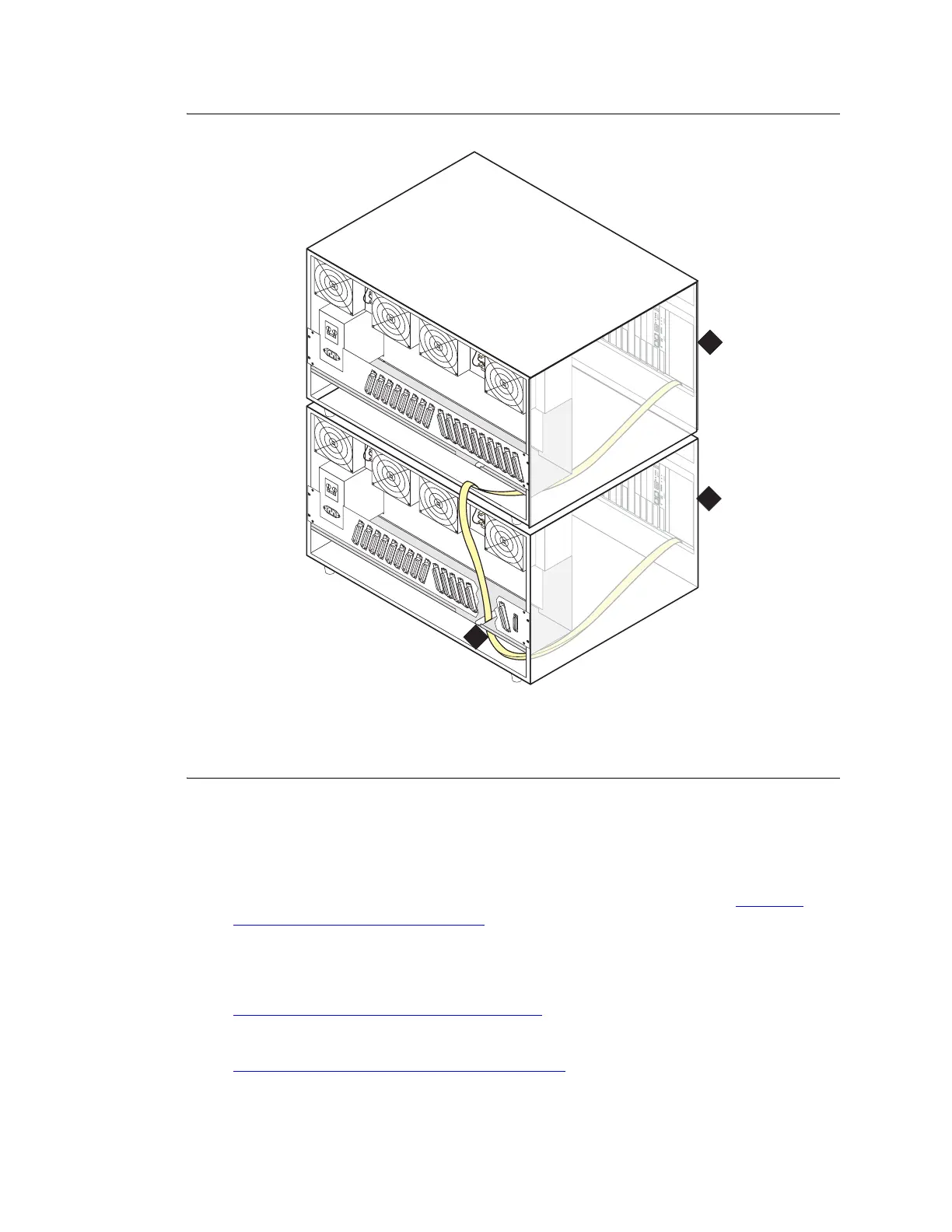

Figure 12: Cable routing through the TDM slot
18 Use the pass through tool to feed the long ribbon cable through media gateway B.
19 If not already present, insert a TN2312BP Internet Protocol Server Interface (IPSI-2) part way
into the tone clock slot of media gateway B.
20 Connect the long ribbon cable to the connector on the component side of the TN2312BP Internet
Protocol Server Interface (IPSI-2) in media gateway A (red line on bottom). See Figure 11,
High/Critical Ribbon Cable Connection, on page 69.
21 Fully insert the TN775D Maintenance (EPN) and TN2312BP Internet Protocol Server Interface
(IPSI-2) circuit packs.
22 If both ribbon and CAT5 cables have been installed, replace rear covers and ground plates (see
Figure 13, Replace rear covers and ground plates,
on page 71).
If CAT5 cables need to be installed, leave the rear covers and ground plates off and go to
Connecting the CAT5 cables to the IPSI circuit packs
on page 72.
Figure notes
1 Media Gateway B
2 Media Gateway A
3 TDM cable slot
