Badger Meter Dynasonics TFX-5000 User Manual

TB900
External Equipment
PT100 or PT1000 RTDs
1
2
3
4
5
6
7
8
9
Chassis_GND
Temp #1
Temp #2
RTD1 Ex +
(Acceptable wire sizes: 28…12 AWG)
RTD1 Sense +
RTD1 Sense -
RTD1 Ex -
RTD2 Ex +
RTD2 Sense +
RTD2 Sense -
RTD2 Ex -
TB900
External Equipment
PT100 or PT1000 RTDs
1
2
3
4
5
6
7
8
9
Chassis_GND
Temp #1
Temp #2
RTD1 Ex +
(Acceptable wire sizes: 28…12 AWG)
RTD1 Sense +
RTD1 Sense -
RTD1 Ex -
RTD2 Ex +
RTD2 Sense +
RTD2 Sense -
RTD2 Ex -

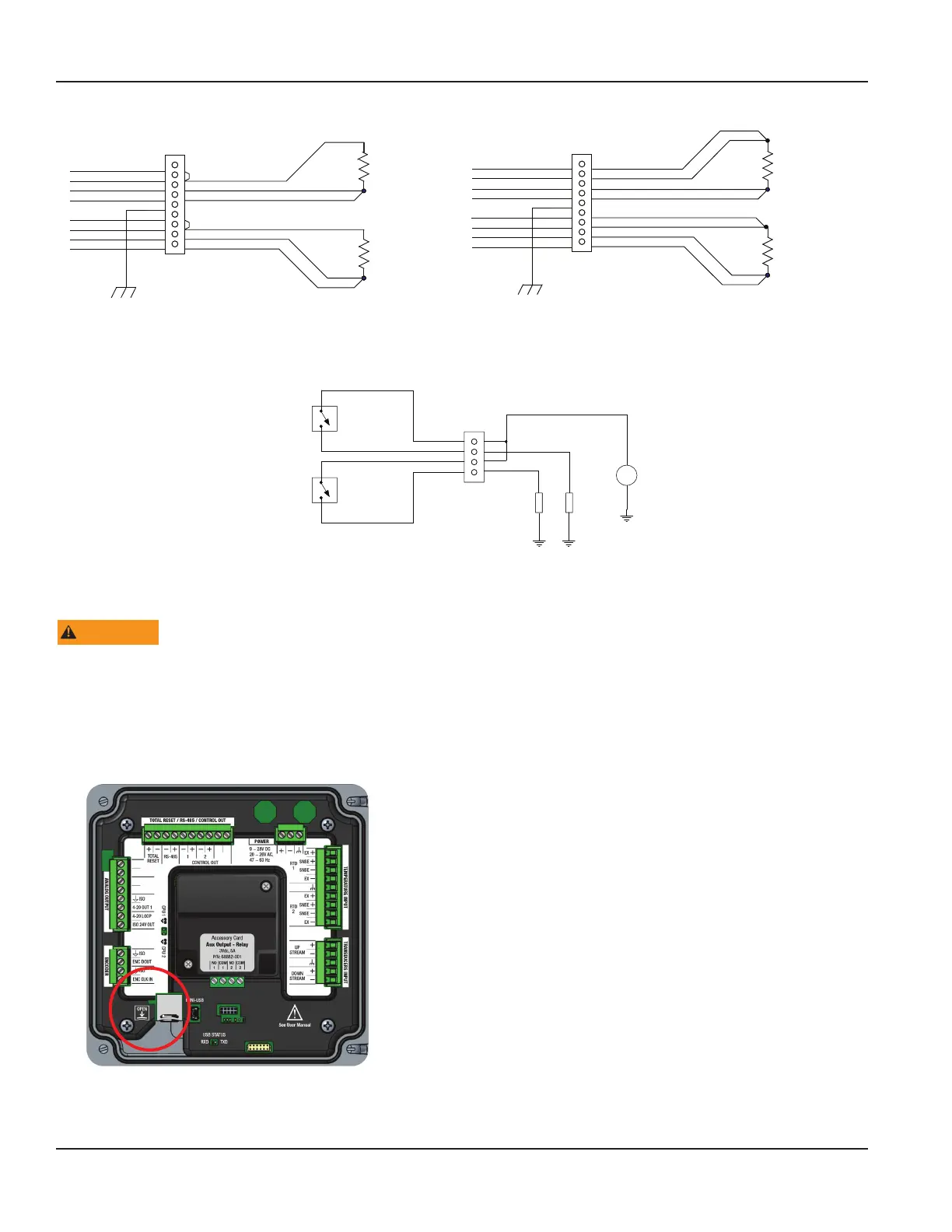

Figure 30: Three-wire RTD interface Figure 36: Four-wire RTD interface
Auxiliary Output Card Wiring
AUX2 OUT
AUX1 OUT
44 33
TB100
4
3
2
1
+
-
Power
Supply
Load 1 Load 2
+V DC (30V DC, 5A max., each output)
Figure 37: Auxiliary output interface
Installing the MicroSD Card
WARNING
IN A HAZARDOUS LOCATION WHERE EXPLOSIVE GAS OR DUST IS PRESENT, DISCONNECT THE POWER BEFORE
OPENING THE ENCLOSURE AND INSERTING OR REMOVING THE MICROSD CARD. AFTER THE CARD IS INSERTED OR
REMOVED, CLOSE THE ENCLOSURE BEFORE REAPPLYING POWER.
1. In all locations, turn o power to the unit.
2. Remove the enclosure cover.
3. Put your nger in the groove of the tray and slide the tray downward. The tray springs open.
5. Insert the MicroSD card.
6. Slide the cover up to close.
7. Replace the enclosure cover.
Wiring the Transmitter
Page 20 October 2019TTM-UM-02222-EN-04
