Barco ClickShare Installation Guide

4. ClickShare installation
Necessary parts
• Mounting brackets (included in the ClickShar e box)
• 4 mounting screws and corresponding screwdriver (not included)
How to install

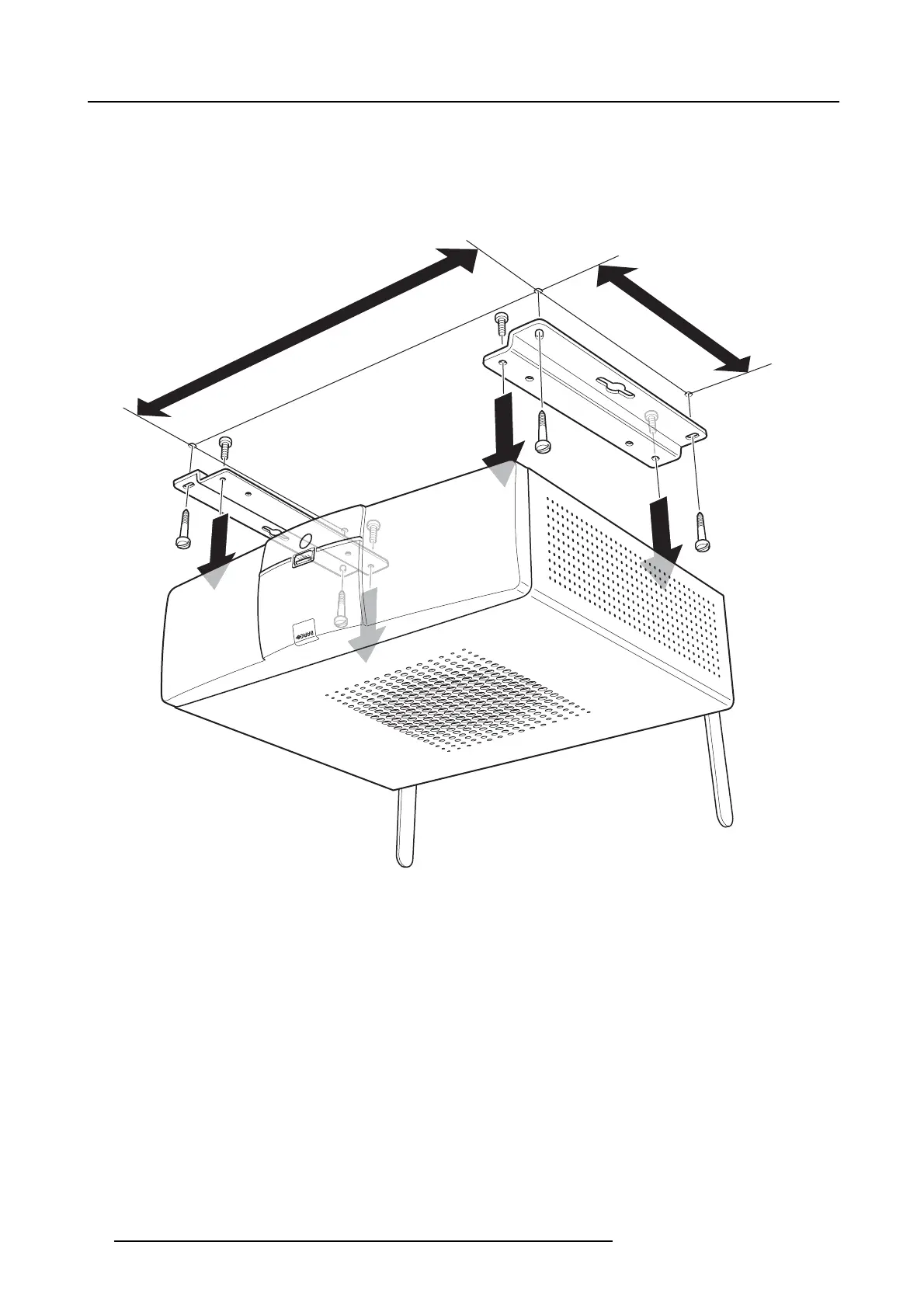

1. Drill four holes in the ceiling according to the dimensions indicated in the picture below (length: 2 77mm , depth: 157mm )
277mm
157mm
Image 4-2
Ceiling mount
2. Remove the four P an Head T10 M3 screws at the bottom of the Base Unit.
20
R5900004 CLICKSHARE 23/12/2014

Barco ClickShare Specifications

General

Plug-and-Play	Yes
Video Outputs	HDMI
Supported Resolutions	Up to 4K UHD
Number of Concurrent Users	Up to 8 (depending on the specific model)
Operating System Compatibility	Windows, macOS
Security Protocols	WPA2
Maximum Resolution	3840x2160
Connection	USB
Encryption	AES
Supported Video Formats	H.264
Wireless Technology	Wi-Fi
