Barco ClickShare Installation Guide

4. ClickShare installation
How to connect
1. Insert a network c able with RJ-45 connector into the LAN port.

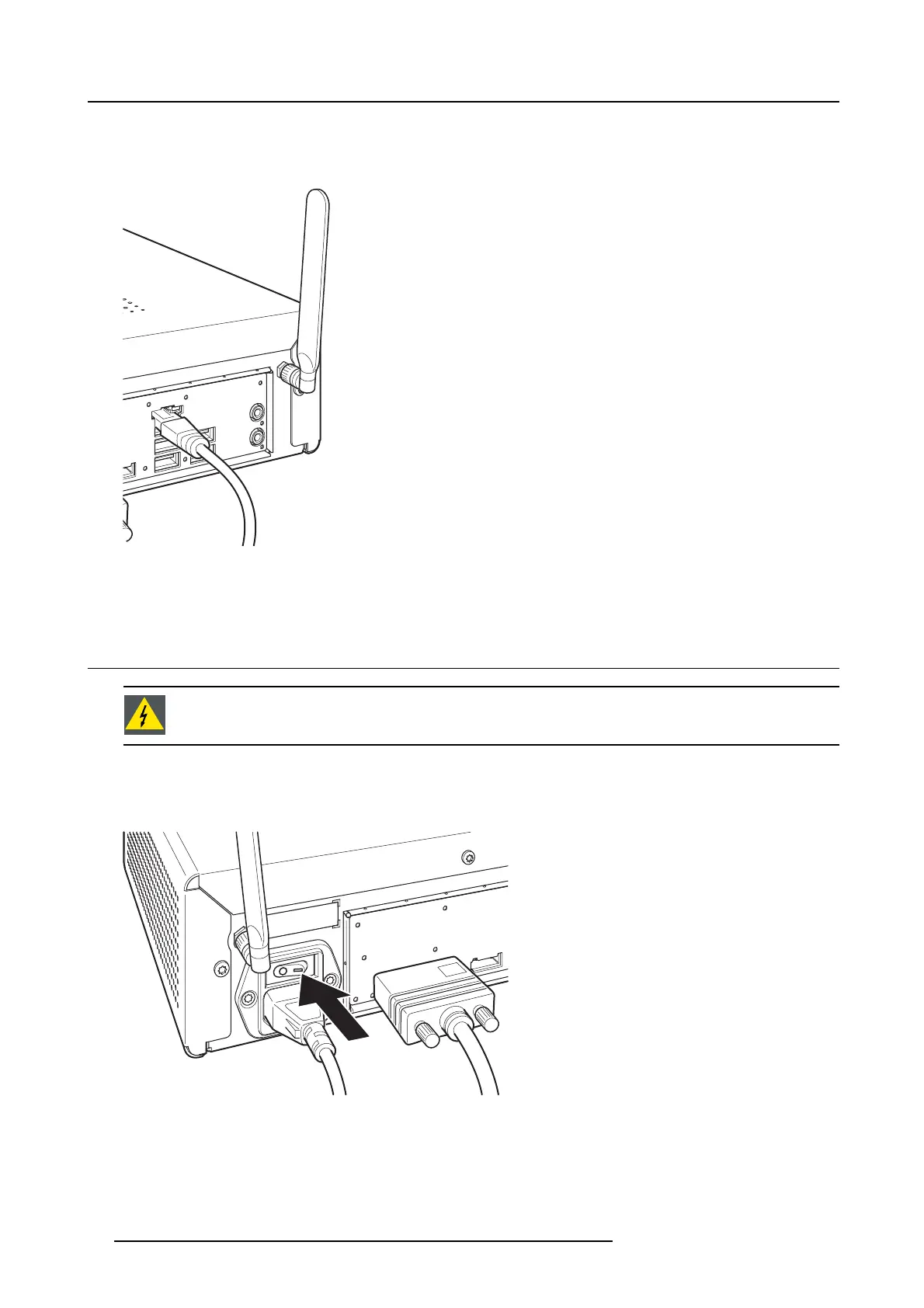

Image 4-10
LAN connection
2. Connect the other side to a LAN.
4.10 Power connection and switching on
WARNING: Use a power cord which complies to local regulations. If not included in the box, contact your
local dealer for a correct power cord.
How to connect
1. Plug the power cable in the m ains power connector at the back of the Base Unit
Note: The local variant of the power cable is included in the ClickShare box.
Image 4-11
Power connection
26 R5900004 CLICKSHARE 23/12/2014

Barco ClickShare Specifications

General

Plug-and-Play	Yes
Video Outputs	HDMI
Supported Resolutions	Up to 4K UHD
Number of Concurrent Users	Up to 8 (depending on the specific model)
Operating System Compatibility	Windows, macOS
Security Protocols	WPA2
Maximum Resolution	3840x2160
Connection	USB
Encryption	AES
Supported Video Formats	H.264
Wireless Technology	Wi-Fi
