6. Web Interface
Image 6-48
Link, overview
The content of the Links tab is displayed.
An overview of the configured links is given with the following extra info of the Link:
- The green LED indicates t hat the Link is connected.
- Source name: can be changed to any name, just by clicking inside the input field and entering a new name.
- Serial nu mber
- Software version
- Last connec ted time
- Auto sho w/hide
- Statu s, calib ra ted or not calib ra t ed
3. To remove the connected Link from the configuration, click Remove From List.
About Auto show/hide
Enable (check) this option when you want to hide the Apple TV m enu automatically. This re quires calibration of the Link. If this
option is disabled (unchecked), the App le TV menu will appear as one of the sources in the ClickShare composition.
6.30 Calibrating a ClickShare Link
About c alibration
In the c ontext of Apple TV combined with the Link frame grabber, calibration is the procedure of detecting and determining a refer-
ence image. This is used by the A uto Show/Hide function : W hen the output image of the ClickShare Link m atches the reference
image the output of the ClickShar e Link is hidden.
The ClickShare Link will typically be calibrated on the Apple TV home screen.
The calibration will analyze the image during a 20 second time span. Only parts of the image that do not change during this period
will be used. This allows the algorithm to cope with the different appe arances of the hom e sc reen ( e.g. Com puters or Settings
selected) and the transients between them.
If for some reason calibration fails the previous reference image will be restored.
How to calibrate

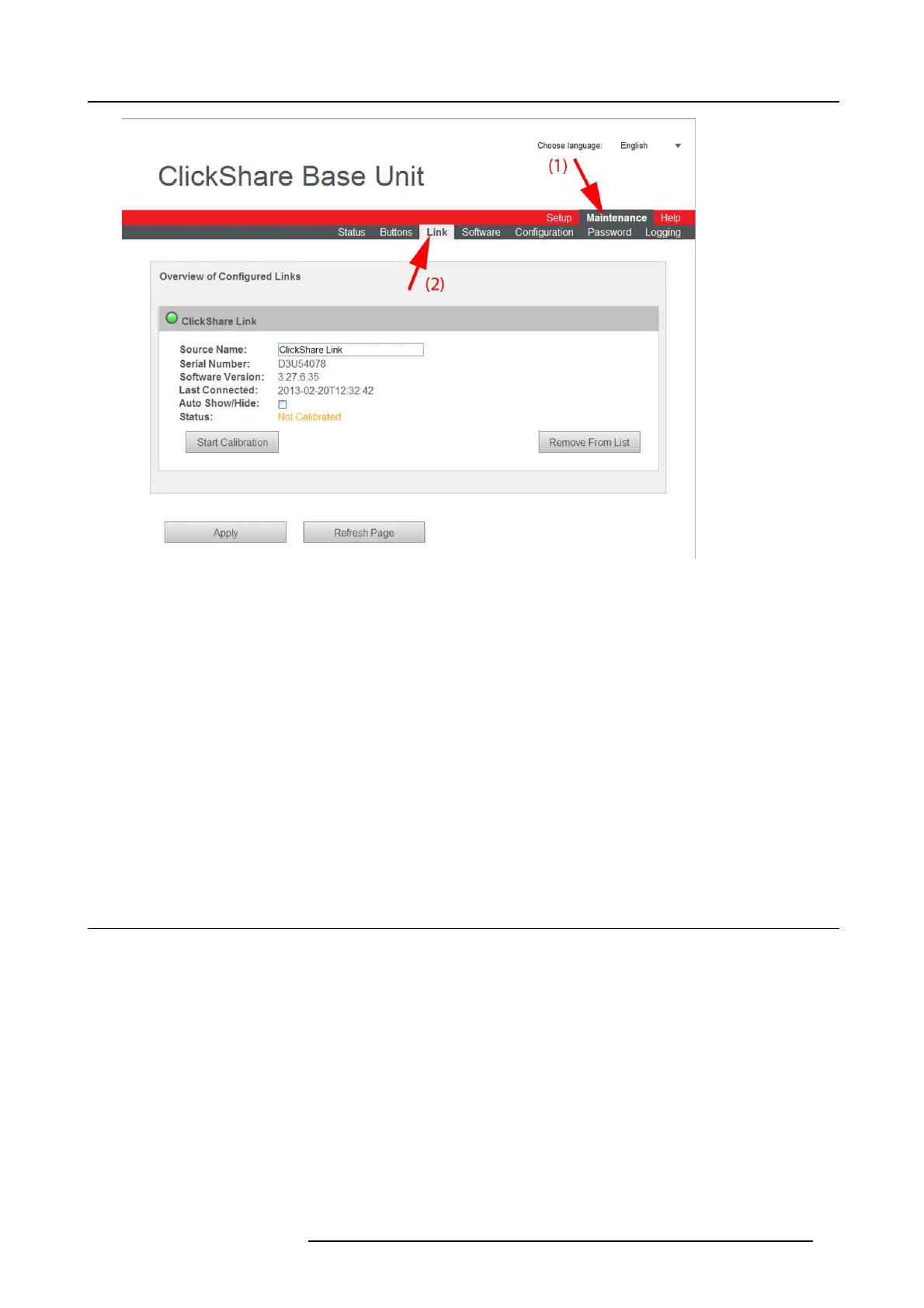

1. Log in t o the ClickShare web interface.
2. Click the Maintenance tab (1) and then click Links (2 ).
R5900004 CLICKSHARE 23/12/2014 81
