9. Image
• Total lines: Total lines in the source.
How to set up

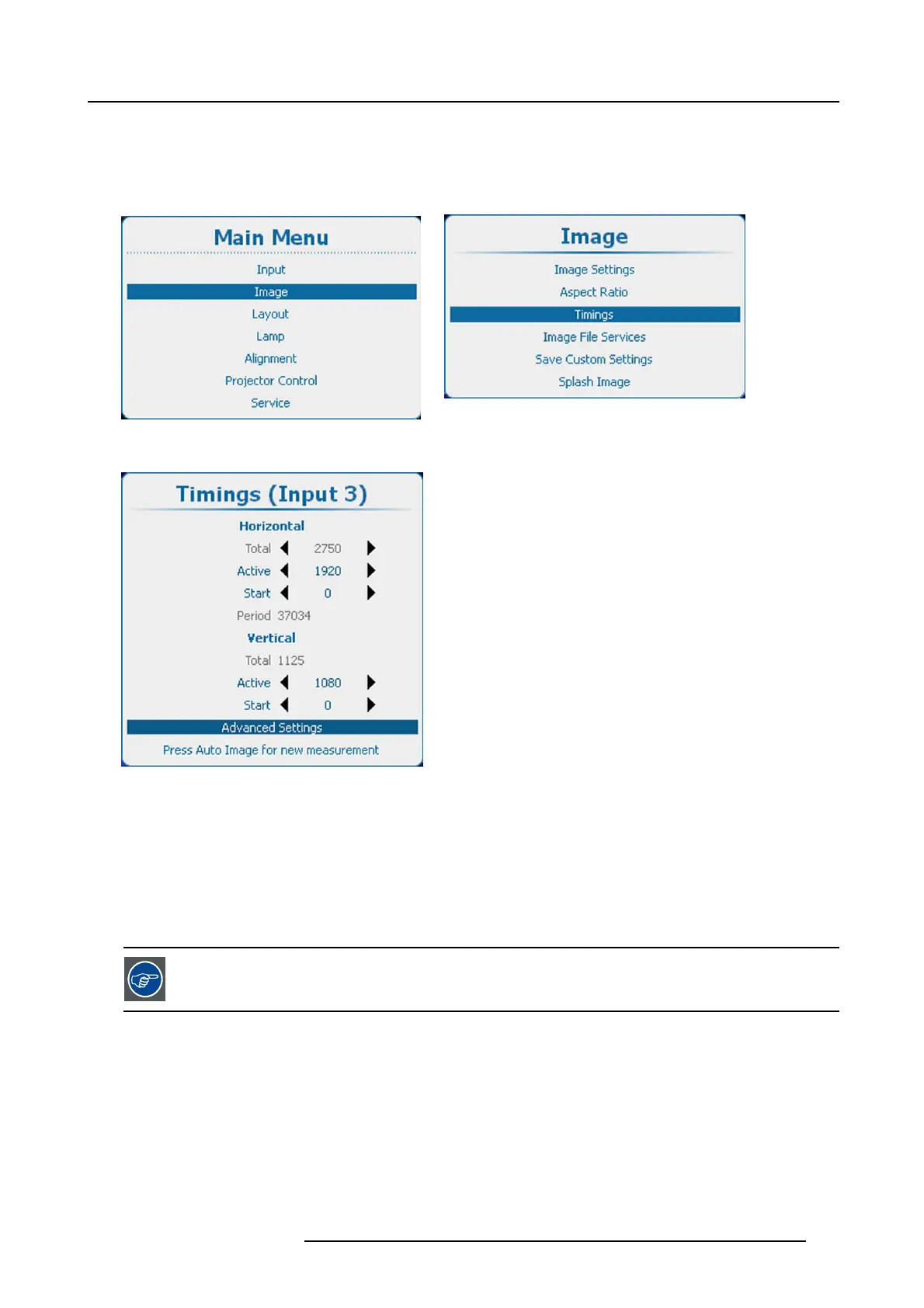

1. Press Menu to activate the menus and select Image → Timings.
Image 9-52
Main menu, Image
Image 9-53
Image, timings
Image 9-54
Timings window
2. Press ENTER to select.
3. Use the ▲ or ▼ key to select a setting.
4. Use the ◄ or ► key to change the value
Or,
press ENTER to open the specific adjustment menu. Follow the adjustment method as described in "Navigation and adjust-
ments", page 72.
5. Continue with the other settings in the same way until all timings are set.
For a new measurement, press the Auto Image button on the RCU or local keypad.
9.5.2 Advanced timings, clamp delay - clamp width
About the advanced settings
Clamp delay The time between the trailing edge of the sync pulse and the leading edge of the clamp pulse, in pixels.
Can be any value between 0 and 255.
Clamp width The width of the clamp pulse can be any value between 0 and 255.
R5905032 HDX SERIES 20/11/2014
121
