Barco HDX - Lens Adjustment, Shift

12. Alignment

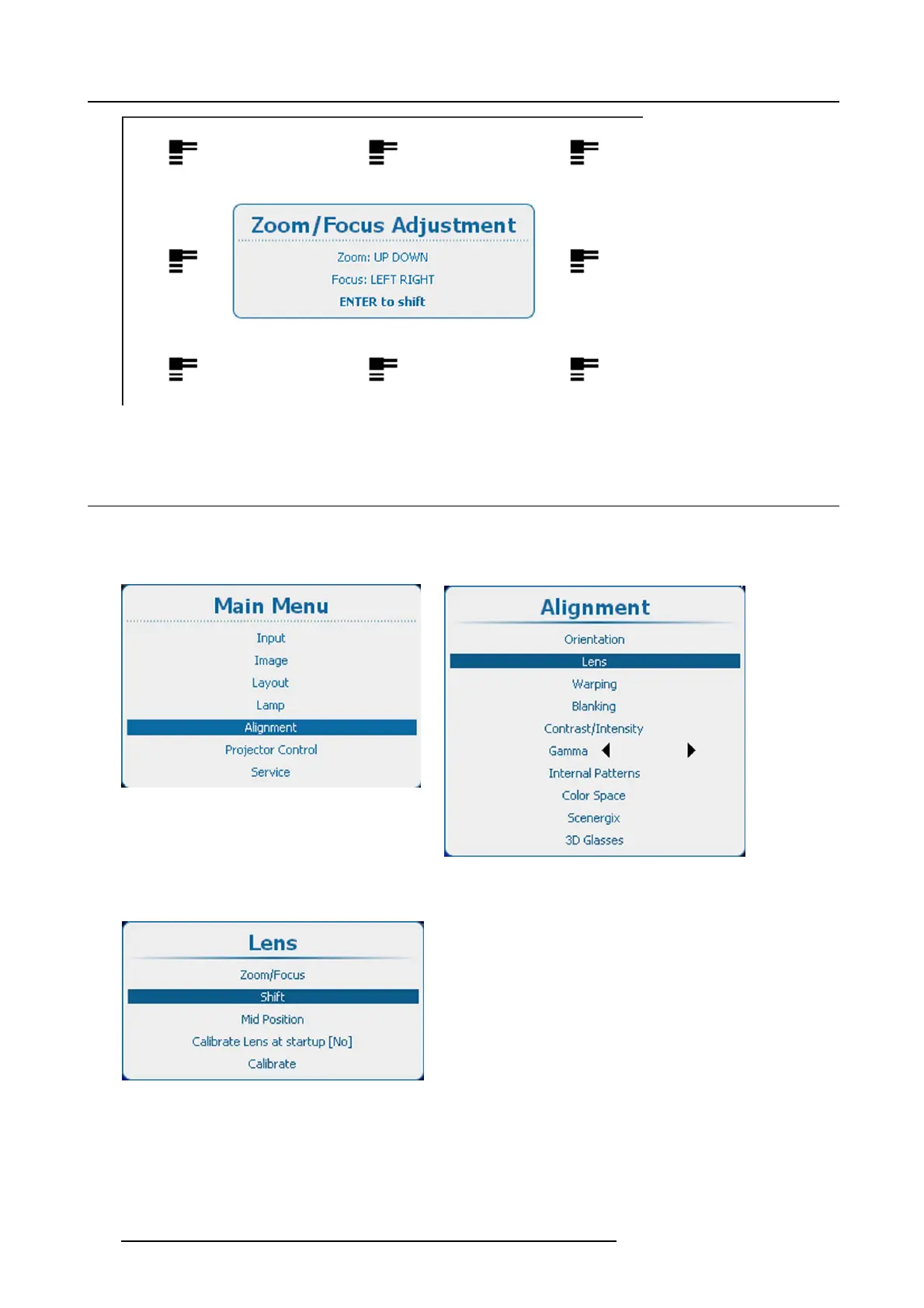

Image 12-7
Zoom/Focus adjustment
12.4 Lens adjustment, shift
How to shift lens
1. Press Menu to activate the menus and select A lignment → Lens.
Image 12-8
Main menu, alignment
Image 12-9
Alignment, lens
2. Use the ▲ or ▼ key to select Shift and press ENTER to activate.
Image 12-10
Lens, shift
3. Use the ▲ or ▼ key to shift the lens in vertical direction.
Use the ◄ or ► key to shift the lens in horizontal direction.
Press ENTER to switch to Zoom/Focus adjustment.
