12. Alignment
Adjustment lines can be activated when Scenergix pattern is [On].
How to display

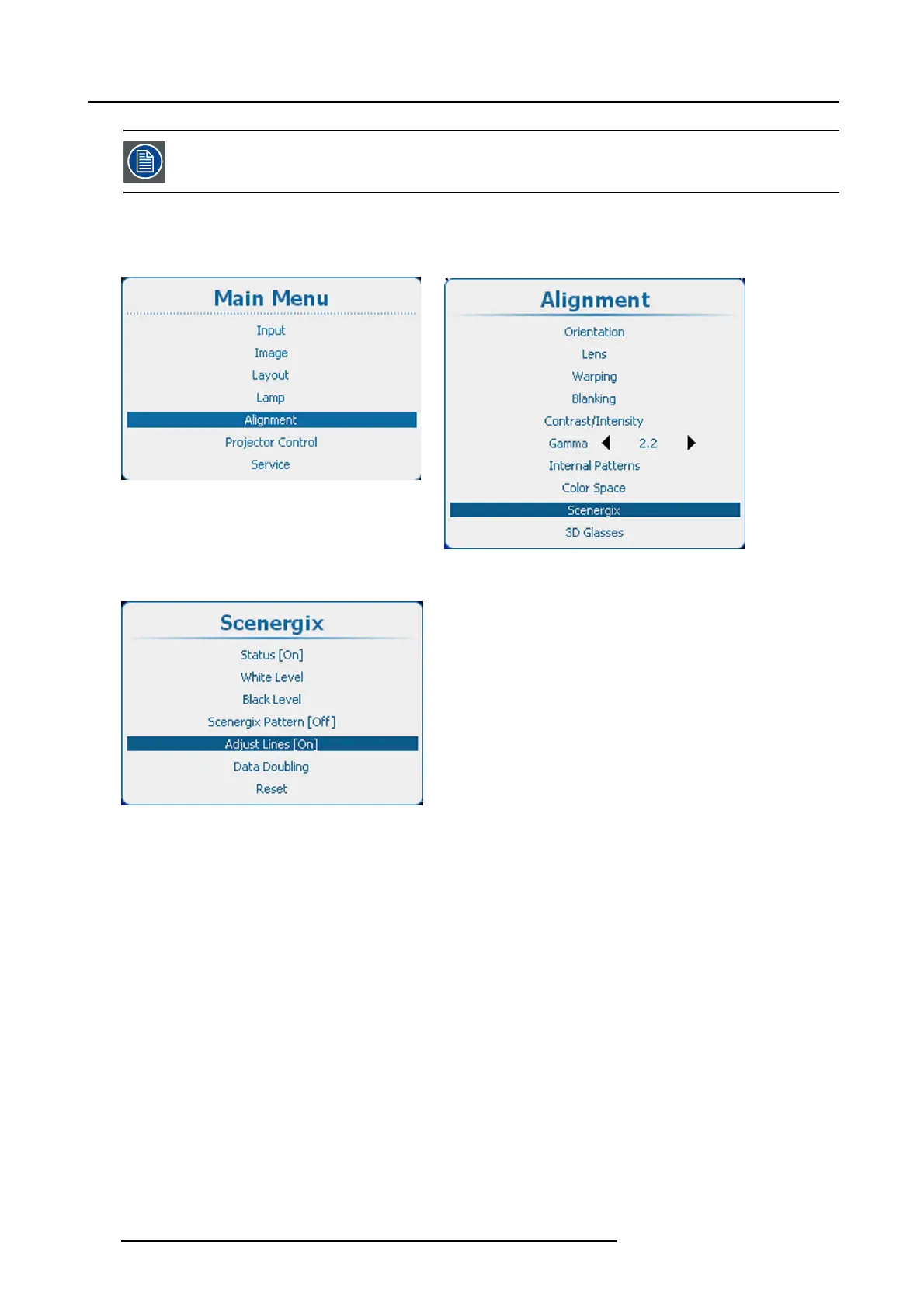

1. Press Menu to activate the menus and select Alignment → Scenergix → Adjust lines.
Image 12-128
Main menu, alignment
Image 12-129
Alignment, Scenergix
Image 12-130
2. Press ENTER to toggle between [On] and [Off].
12.14.6 Data doubling
About data doubling
When a source (A) must be displayed via 2 projectors as one image (B), the vertical and horizontal start position and the size must
be determined so that each projector display
s a part of the image. The overlap area can be adjusted with the Scenergix tools.
204
R5905032 HDX SERIES 20/11/2014
