16. Servicing

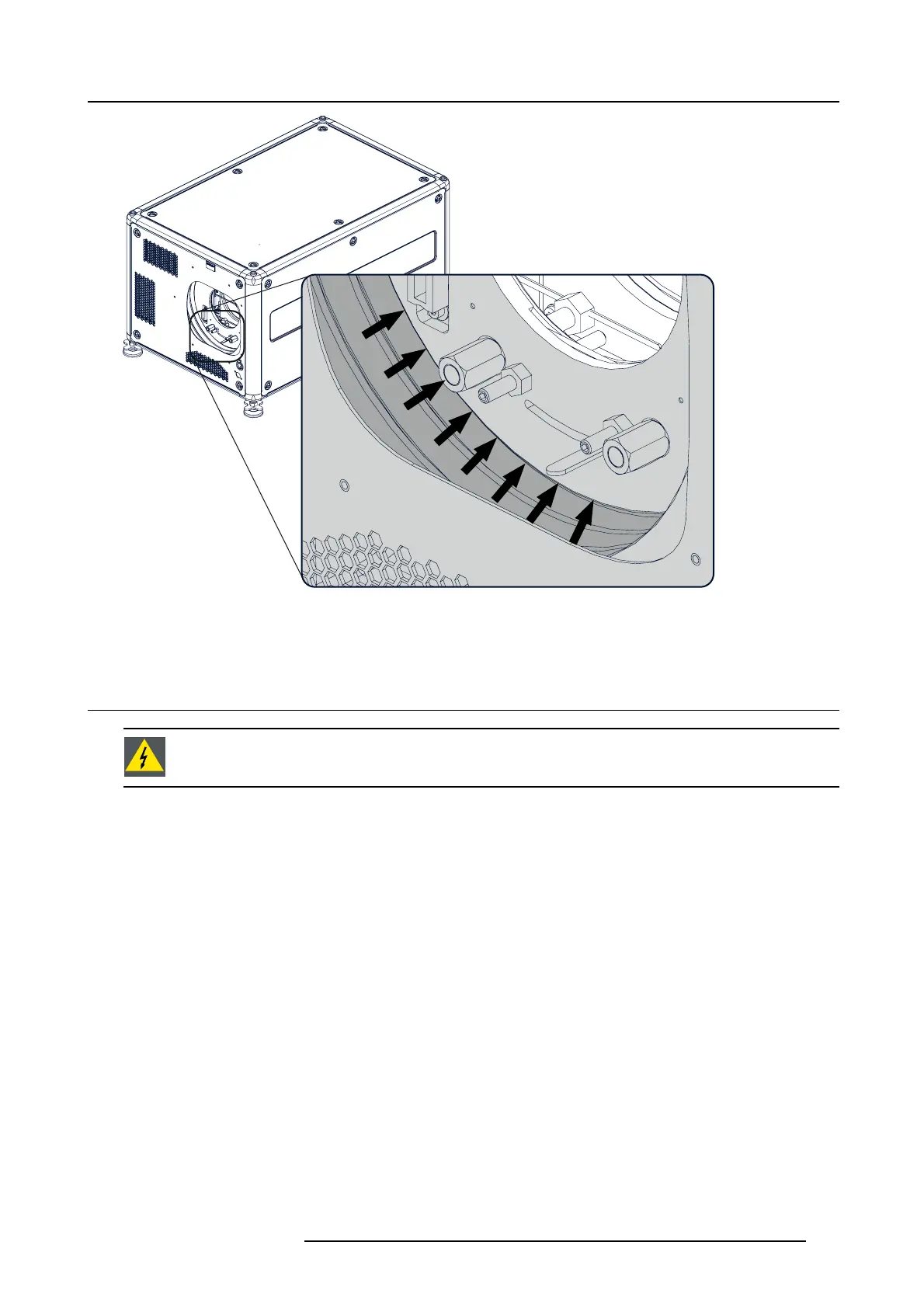

Image 16-9

Mount dust ring

4. Mount lens again.

16.6 Removal of the lamp cover

WARNING: Switch off the projector and unplug the power cord before starting the procedure.

Necessary tools

7mmﬂat screw driver

How to remove

1. Release the 6 captive screws.

R5905032 HDX SERIES 20/11/2014

299
