10. Layout

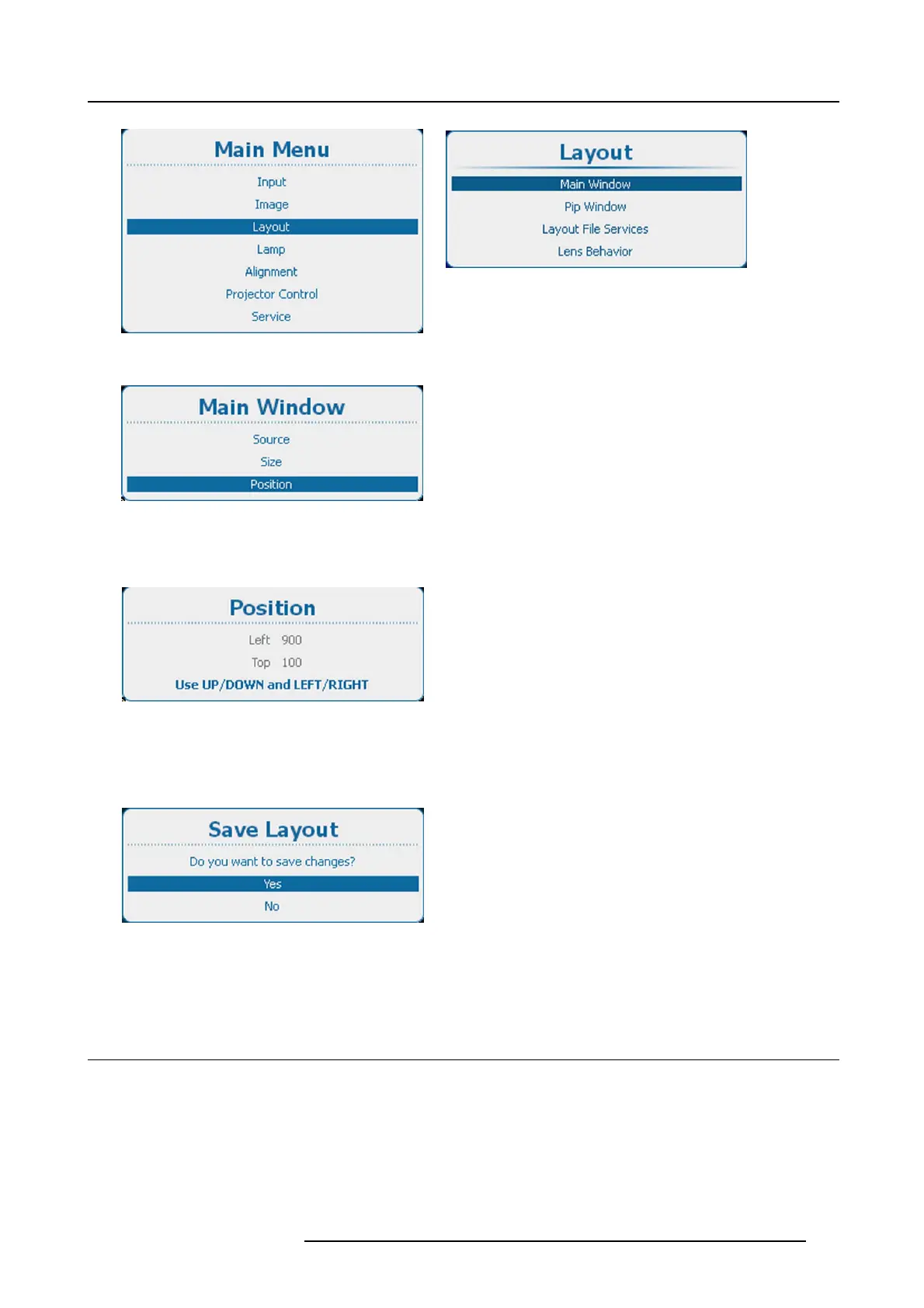

Image 10-12
Main menu, layout
Image 10-13
Layout, main window
Image 10-14
Main window, Position
2. Press ENTER to select.
The Position window opens.
Image 10-15
Position window
3. Use the ▲ or ▼ key to change the Top position and the ◄ or ► key to change the Left position.
4. When desired position is reached, press EXIT.
A Sa ve Layout window opens.
Image 10-16
Save layout
5. Use the ▲ or ▼ key to select Yes and press ENTER to save.
Select No if you want to quit without saving the current position.
10.4 PiP window
Overview
• Introduction to PIP
• Picture in Picture activation
• PiP window, source selection
• PiP window, Size
• PiP window, position
R5905032 HDX SERIES 20/11/2014
139
