14. Service
2. Use the ▲ or ▼ key to select the desired internal service pattern and press ENTER to open a selection menu.
Input patterns
Input items in the Internal Service Patterns menu are only shown when the corresponding slot contains an input board.

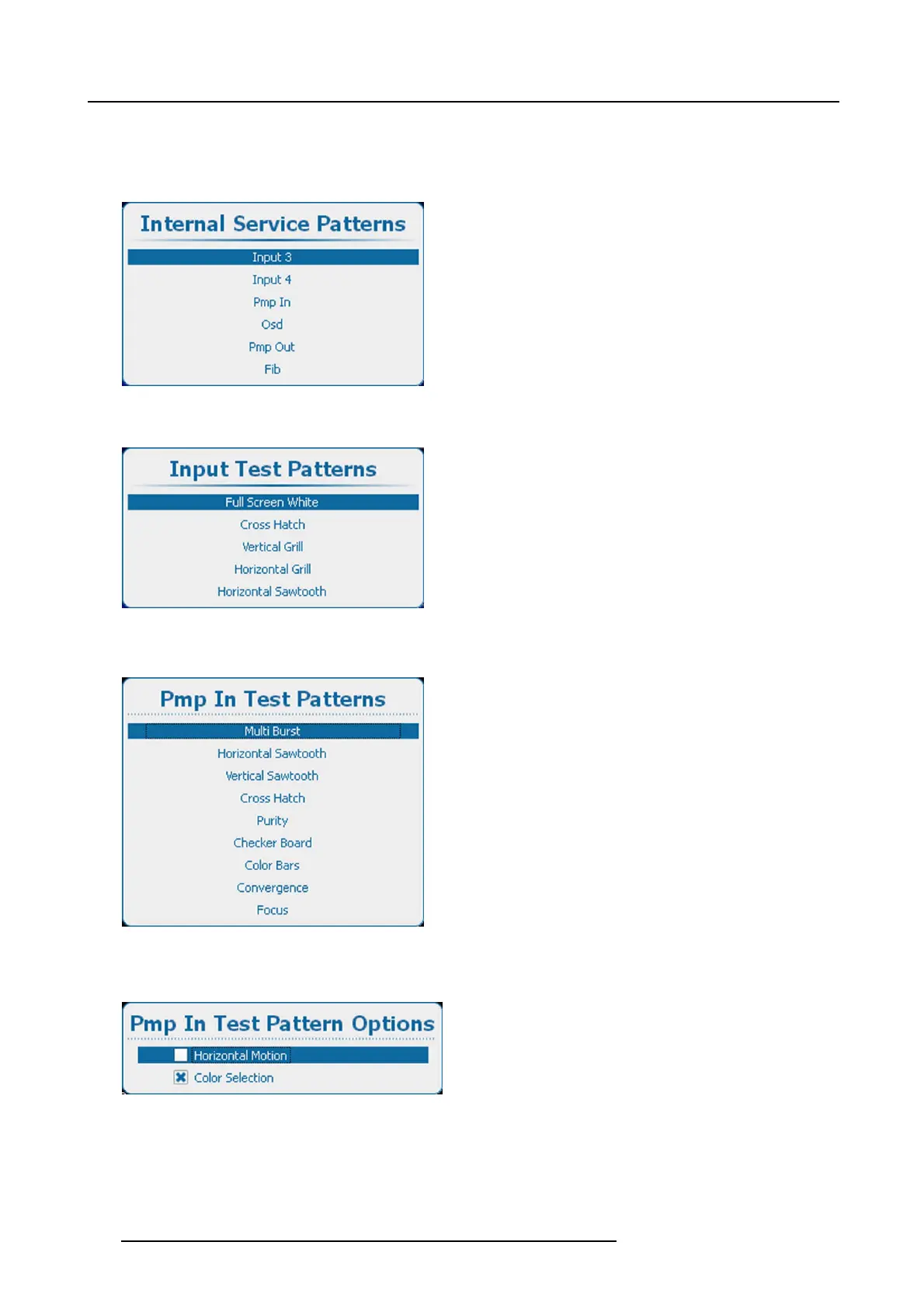

Image 14-37
Internal service patterns, input
Press ENTER to display the list of possible patterns.
Image 14-38
Input test patterns
PmpInpatterns
Image 14-39
Pmp In test patterns
To change the options for the selected pattern, use he ► key to open these options. The number of options can change for the
different patterns.
Image 14-40
Pmp In test pattern options
Use the ▲ or ▼ key to select an option and press ENTER to select. The checkbox in front of that item will be checked.
278
