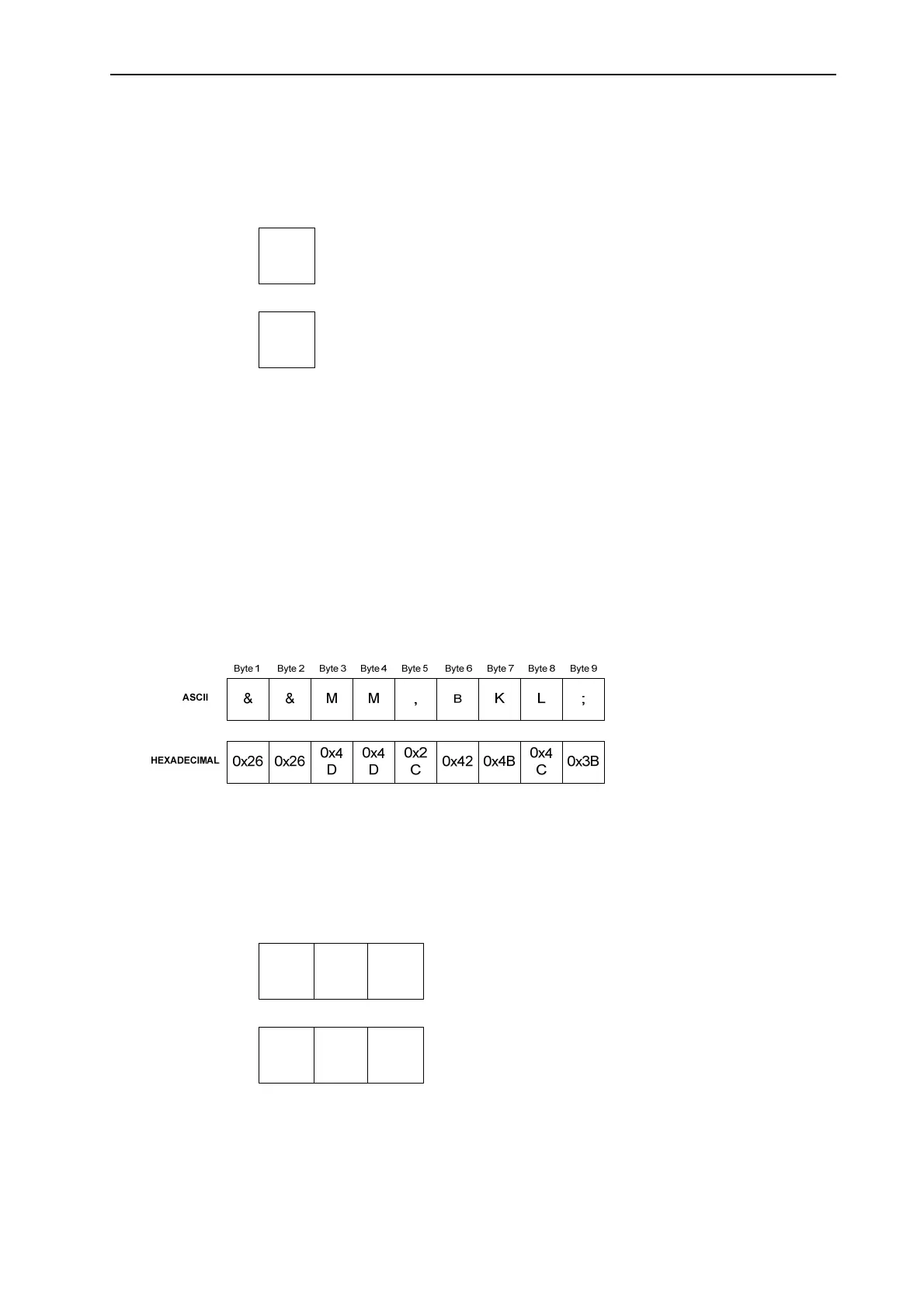

Command Protocol
MDSC-1119 and MDSC-2124__________________________________________________________________9
Response for Mm command
This minimum command responds with the minimum % at which the backlight can be
adjusted.
0
0x30
ASCII
HEXADECIMAL
3.3.4.
Maximum command (MM)
When the “MM” characters are sent at the beginning of the command the response
returns the maximum possible value of the parameter that can be entered in the
command, as with RV commands no action is taken.
MM Command
The maximum command is used to determine the highest possible value at which the
backlight can be adjusted.
Response for MM command
This maximum command returns for the maximum % the backlight can be displayed.
1 0
0x31 0x30
ASCII
HEXADECIMAL
0
0x30
