41R5913197 /02 SP2K-S
SCR EEN CEN TER SCR EEN CEN TER
O FF-CEN TER
A B

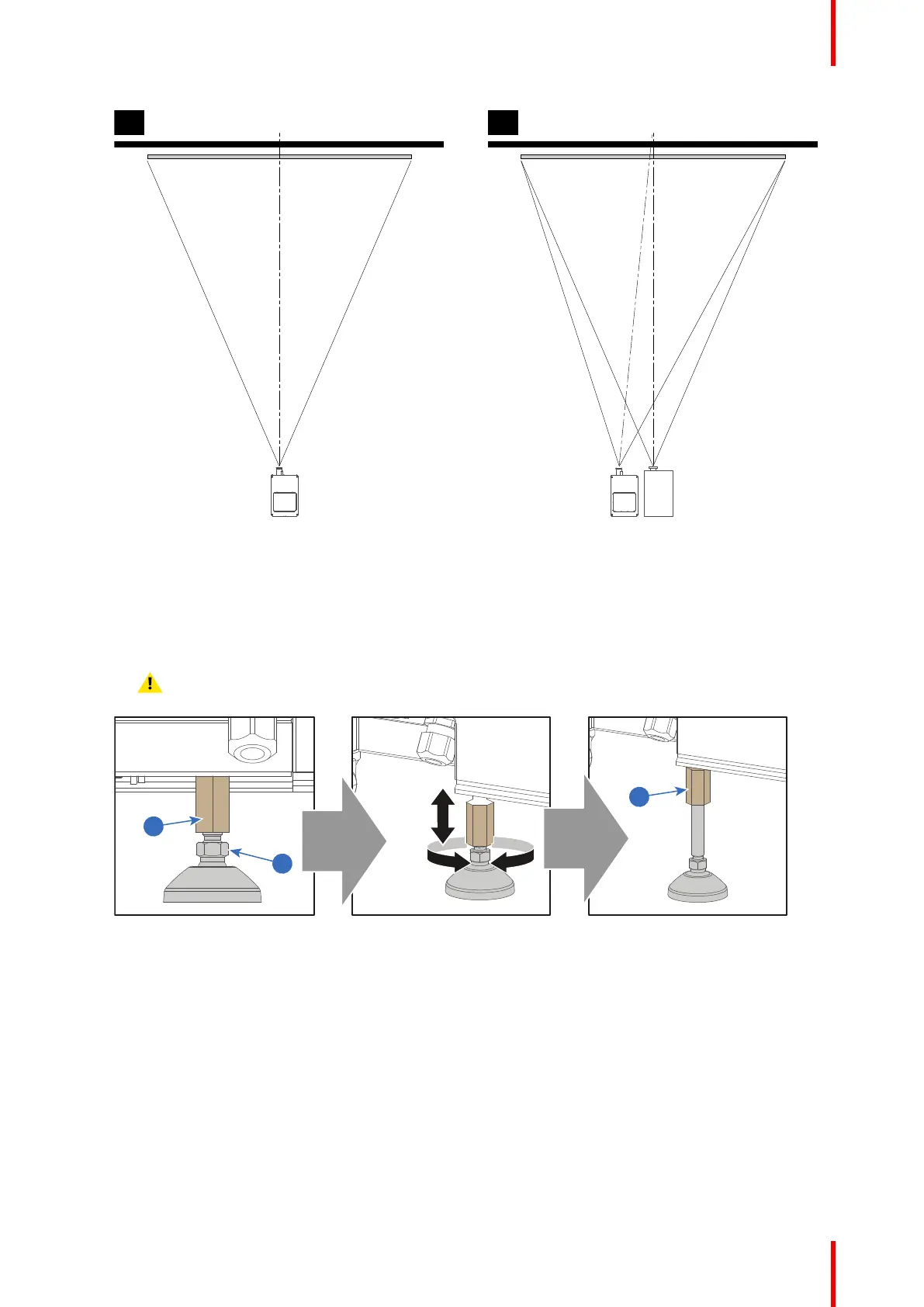

Image 4–2
3. Proceed to level the projector by adjusting the feet of the projector as follows:
• Loosen the nut (reference 1 Image 4–3) on the threaded rod of the three projector feet. Use a 17 mm
open-end wrench.
• Adjust the height of the 3 legs to level the projector. Use a 14 mm wrench to adjust the height as
illustrated (reference 2 Image 4–3).
• Secure the leg height by tightening the nuts (reference 1 Image 4–3) of each projector foot.
Caution: Check if the nuts of the projector feet are sufficiently tightened.
Image 4–3 Adjusting the projector feet
4. Later, when the projector is up-and-running, adjust precise image geometry and placement.
Projector tilting
In an ideal installation, the SP2K-S lens surface is centered with and parallel to the screen. This orientation
helps to ensure optimized lens performances with minimal offset. If this position is not possible (such as when
the projector is significantly higher than the center of the screen), it is better to rely on offset rather than extra
tilt.
1. Before adjusting tilt, make sure the projector is as well-centered with the theatre screen as possible for
your installation area.
2. Check with theatre personnel for the degree of screen tilt, or measure this inclination with a protractor at
the screen.
Physical installation projector
