56-101-01175 Revision H Page | 22

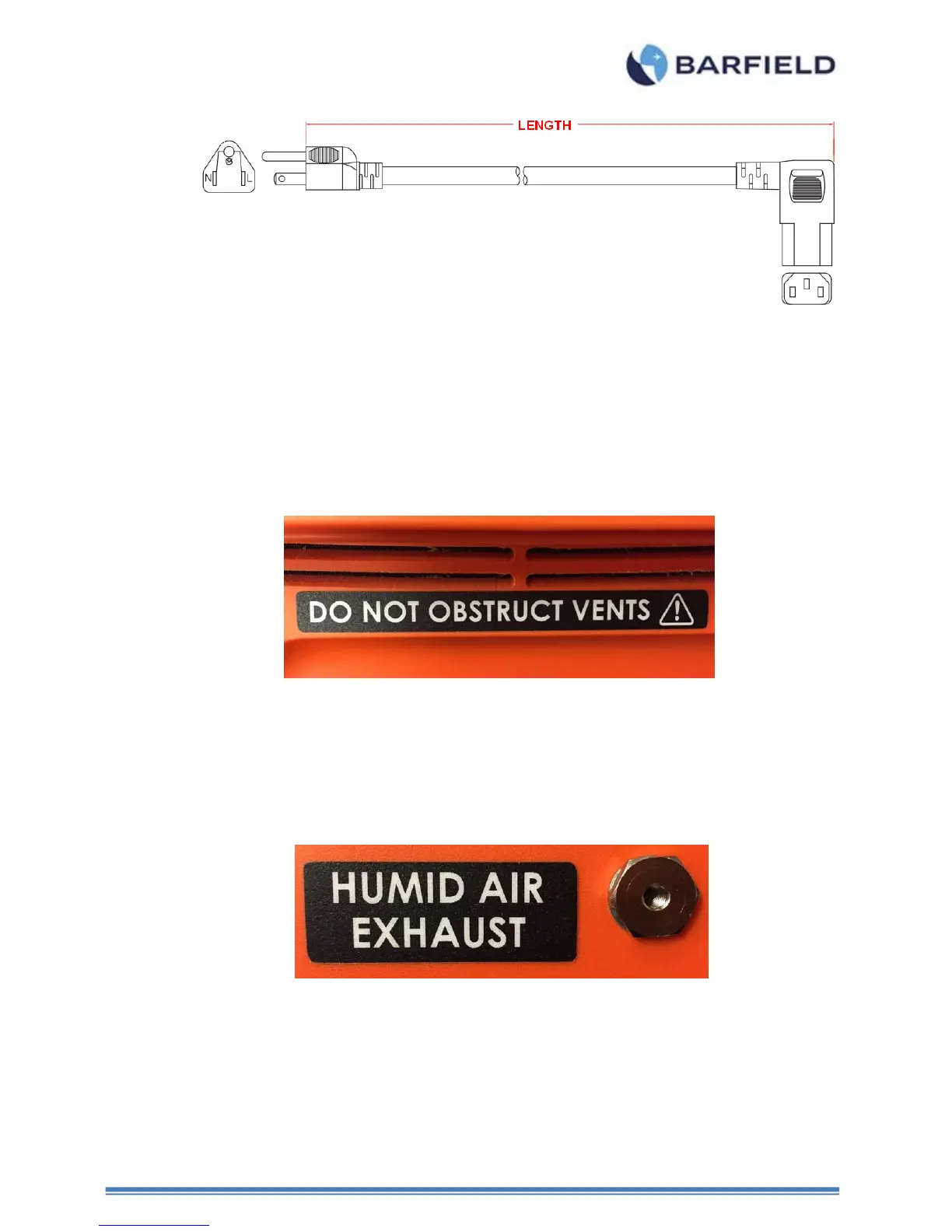

Figure 7 Power Supply Cable
4. VENTILATION / DRAINAGE
A. Ventilation
The DPS1000 has exhaust vents on the right side of the unit which must not be blocked.
Also there are intake vents on the left side for drawing air through the case which also
must be kept free from obstructions. Both sets of vents are labeled as shown in Figure 8
Figure 8 Do Not Obstruct Vents
B. Drainage
The DPS1000 has a port located on the front of the enclosure. It is pictured and labeled
as shown in Figure 9 and is used to exhaust humid air which is produced by the internal
pressure pump. This port must not be blocked or in anywise restricted.
Figure 9 Humid Air Exhaust
5. PNEUMATIC PRESSURE CONNECTIONS
A. Pitot and Static Quick Disconnect Ports (Standard Configuration)
1. Pt (pitot) - P/N: B-QC4-D-2PMK5FV
2. Ps (static) - P/N: B-QC4-D-2PMK2FV
