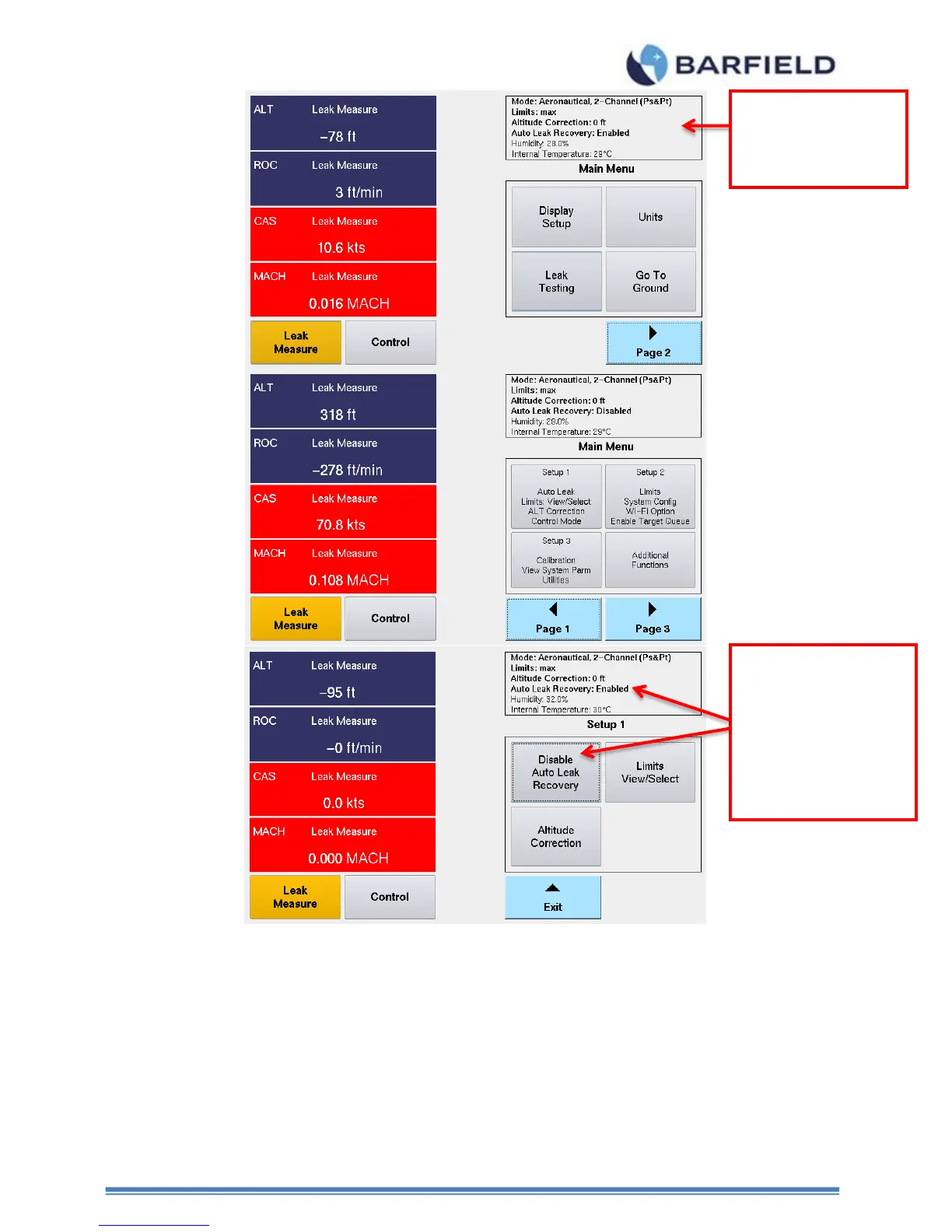

Figure 21 Test Set Configuration Information Displayed
8. USER INTERFACE MENU AND DISPLAY
A. The UI “User Interface” was designed and structured to provide the user/operator with
an efficient and intuitive man-machine interface.
Touch here to go
directly to Setup 1
menu
Selecting “Enable” in
Setup 1 menu will
automatically
change to “Disable”
and “Enabled” will
appear in the
Configuration Status
area.
