15. Patient Data Card
15. PATIENT DATA CARD SYSTEM
15.1 GENERAL
The Patient Data Card system provides a convenient means for
initializing Instrument settings for a particular patient or general
therapy.
This system allows the transfer of patient information and
treatment data from Renal Soft software to the Instrument.
The Patient Data Card (PDC) system (Figure 15-1) consists of the
PDC Programmer, Patient Data Card, PDC Reader, and Peripheral
Interface Board.

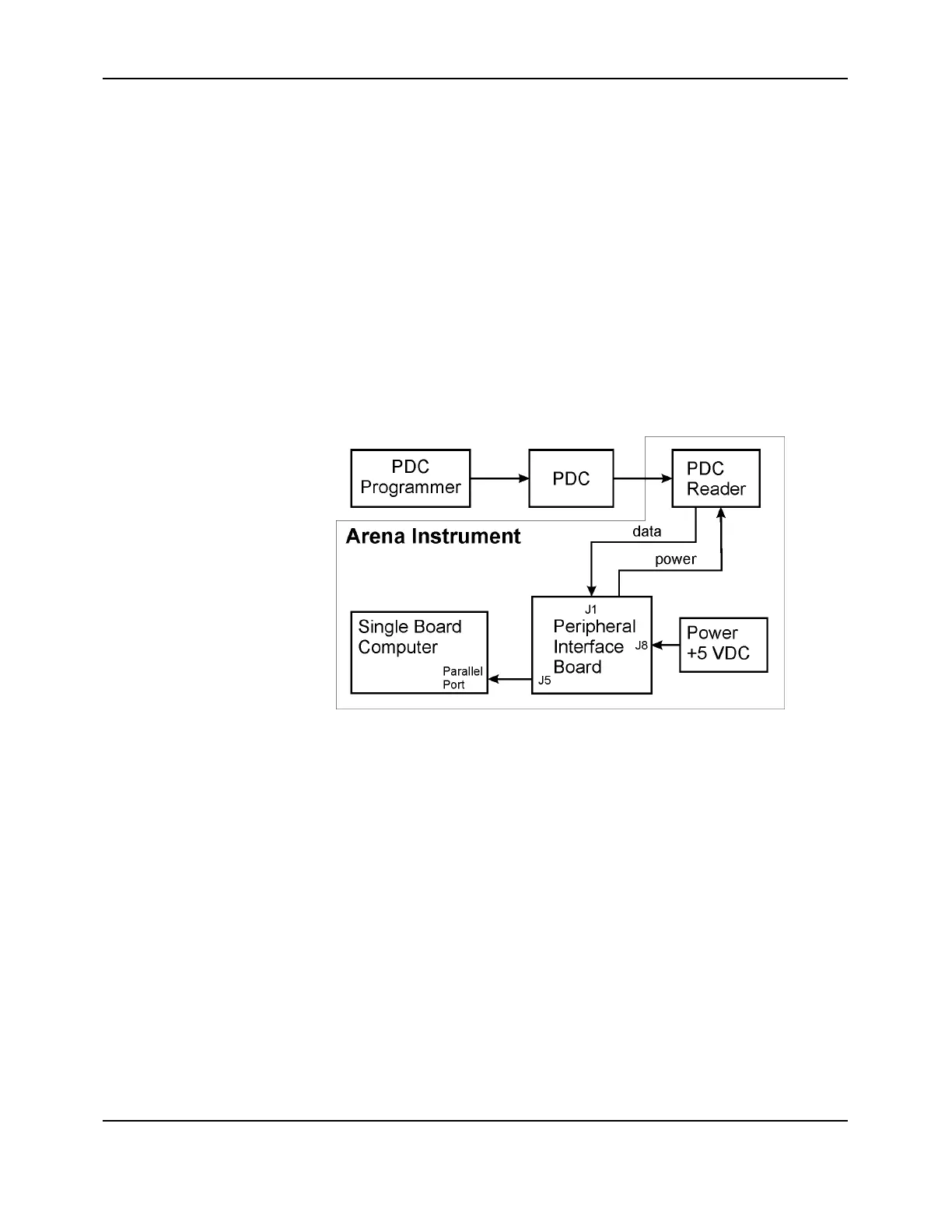

Figure 15-1. PDC System Block Diagram
157-1278-922 Rev A 15-3
January 2004
