Arena Service Manual
16.7 UF FLOW METER DIAPHRAGM REPLACEMENT
This diaphragm must be replaced during the annual preventive
maintenance. Refer to Figure 16-8.

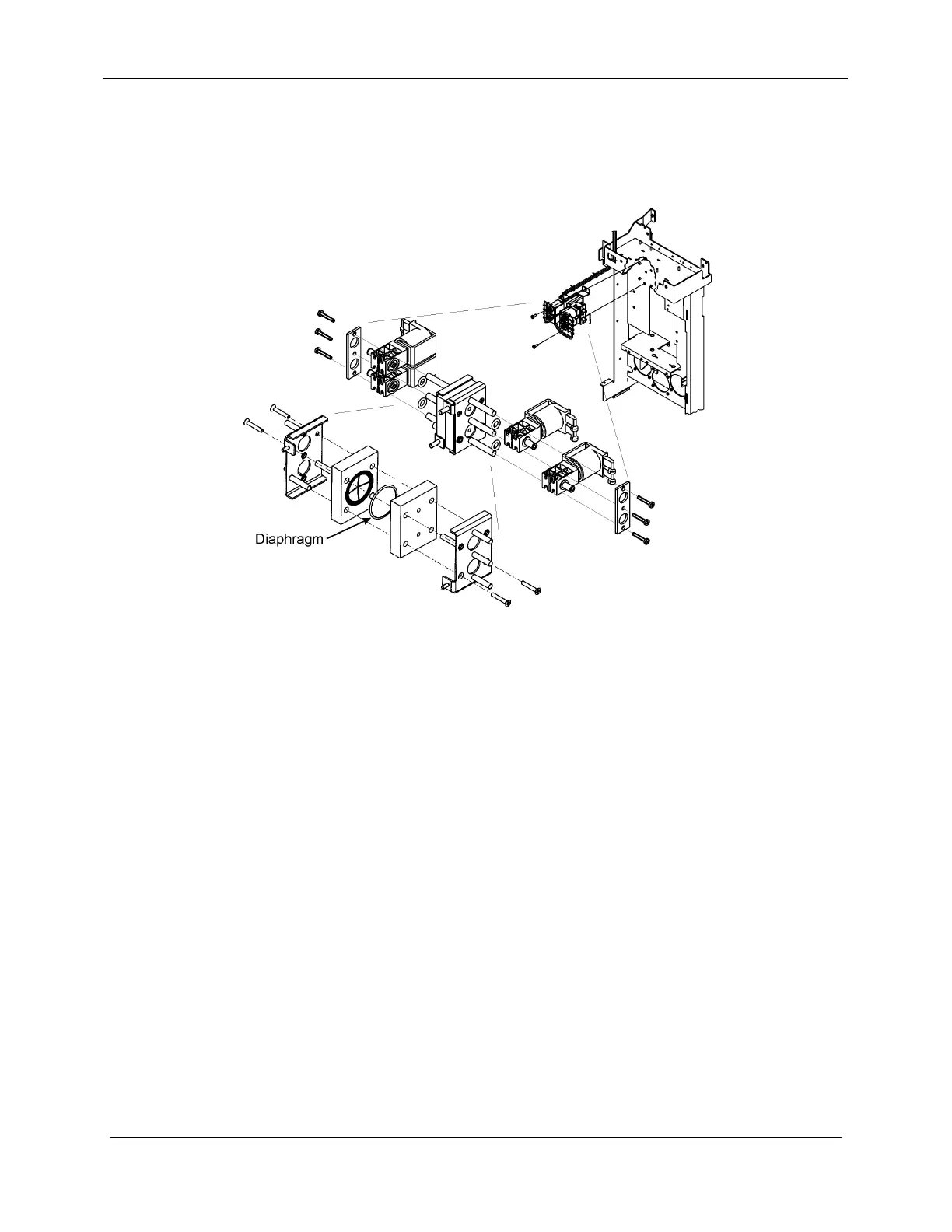

Figure 16-8. UF Flow Meter Diaphragm Location
16-12 157-1278-923 Rev A
February 2004
