5. Electronics
5.9 PERIPHERAL INTERFACE BOARDS
The Peripheral Interface Boards consist of the Peripheral Interface
Board and the Rear Passive Interconnect Panel (two passive boards
containing only connectors). The Peripheral Interface Boards
provide a physical link, communications, and power between some
of the SBC ports and the peripheral devices.

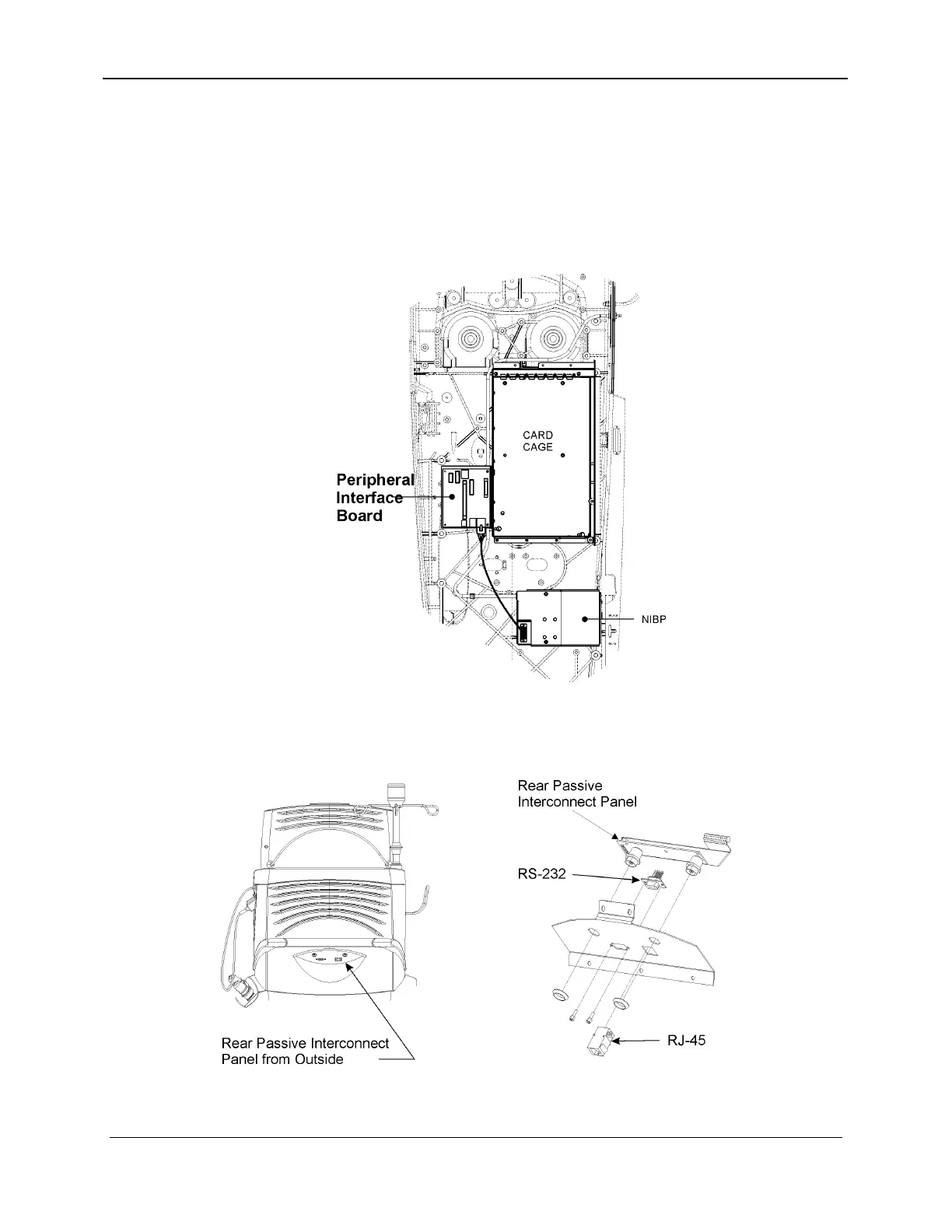

Figure 5-24. Peripheral Interface Board
The Rear Passive Interconnect Panel provides physical connection
for the external peripherals linked to the SBC’s parallel port.
Figure 5-25. Rear Passive Interconnect Panel (Outside Rear and Exploded
Views)
